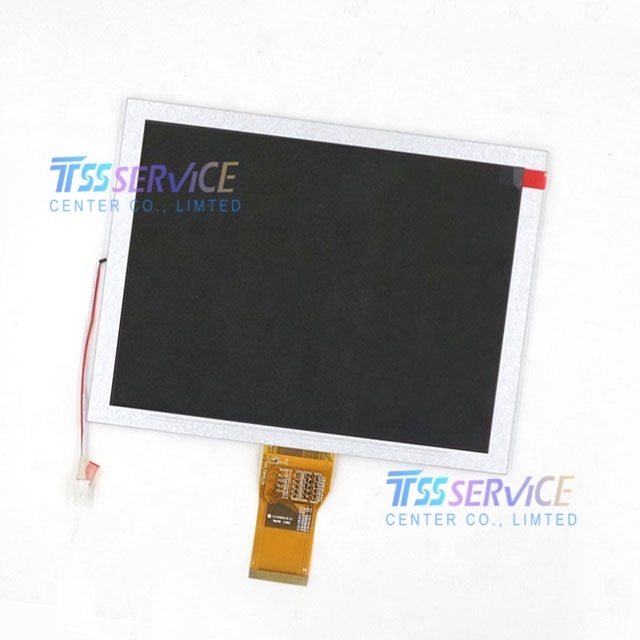

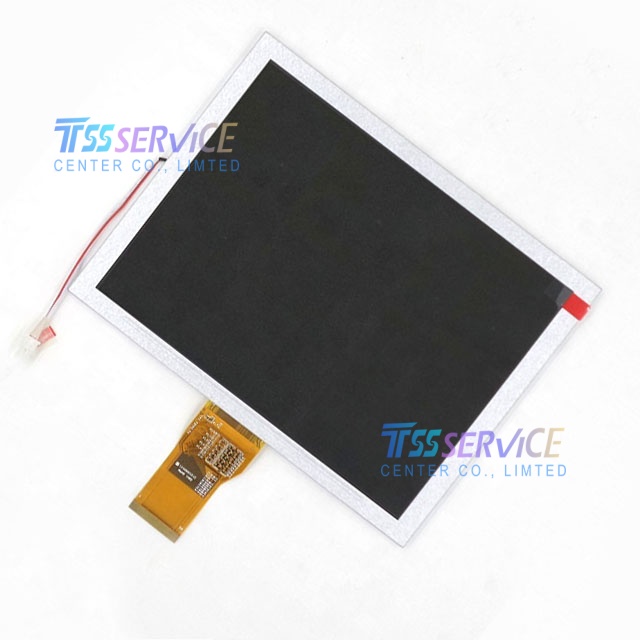

AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel

SKU: TM080SDH02-41

1,Condition: New,Grade A

2,Description: TM080SDH02-41 8.0 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$60.00 $50.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel
  • AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel
  • AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel
  • AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel
1/1
  • AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel
  • AVIC TM080SDH02-41 8.0" 800×600 LCD Display Panel
  • Description
The AVIC TM080SDH02-41 is an 8.0-inch a-Si TFT-LCD module designed for industrial and embedded applications requiring high image quality and reliable performance. With a resolution of 800×600 (SVGA) and a pixel density of 125 PPI, this display delivers sharp, detailed visuals suitable for a wide range of human-machine interface (HMI) applications.
Parameter Specification
Brand AVIC
Model P/N TM080SDH02-41
Diagonal Size 8.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 125PPI
Pixel Format RGB Vertical Stripe
Active Area 162(W)×121.5(H) mm
Bezel Opening 164.8(W)×124.3(H) mm
Outline (mm) 183(W)×141(H)×5.9(D)
Treatment Antiglare
Luminance 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Work Mode TN, Normally White, Transmissive
Good View at 6 o'clock
Response 20 ms (Typ.)(Tr+Td)
Color Depth 16.7M 50% NTSC
Backlight 3S9P WLED, 30K hours, No Driver
Mass 230g
Refresh Rate 60Hz
Touchscreen Without
Signal Type Parallel RGB (1 ch, 8-bit), 50 pins FPC
Voltage Supply 3.3V (Typ.)
Storage Temperature -30 ~ 80 °C
Operating Temperature -20 ~ 70 °C

Typical Applications

  • Industrial Automation – HMI panels, PLC interfaces, control systems

  • Medical Devices – Patient monitoring, diagnostic equipment

  • Test & Measurement – Oscilloscopes, analyzers, laboratory instruments

  • Commercial Kiosks – Self-service terminals, interactive displays

  • Embedded Systems – Custom industrial and commercial devices

  • Transportation – In-vehicle displays, fleet management
