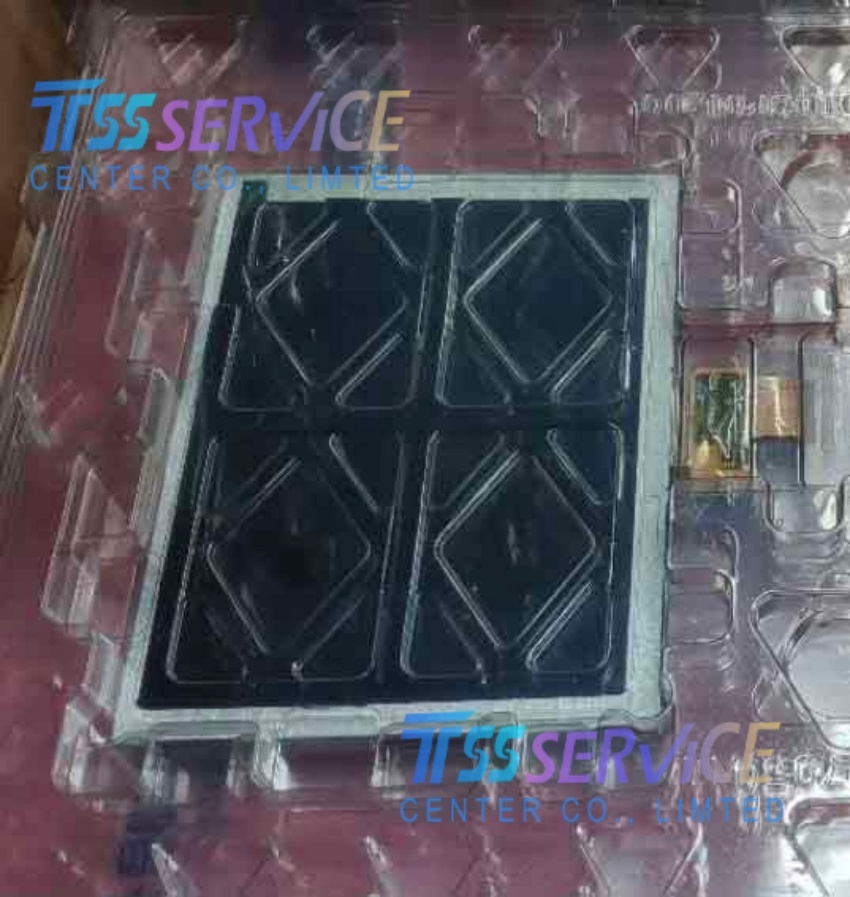

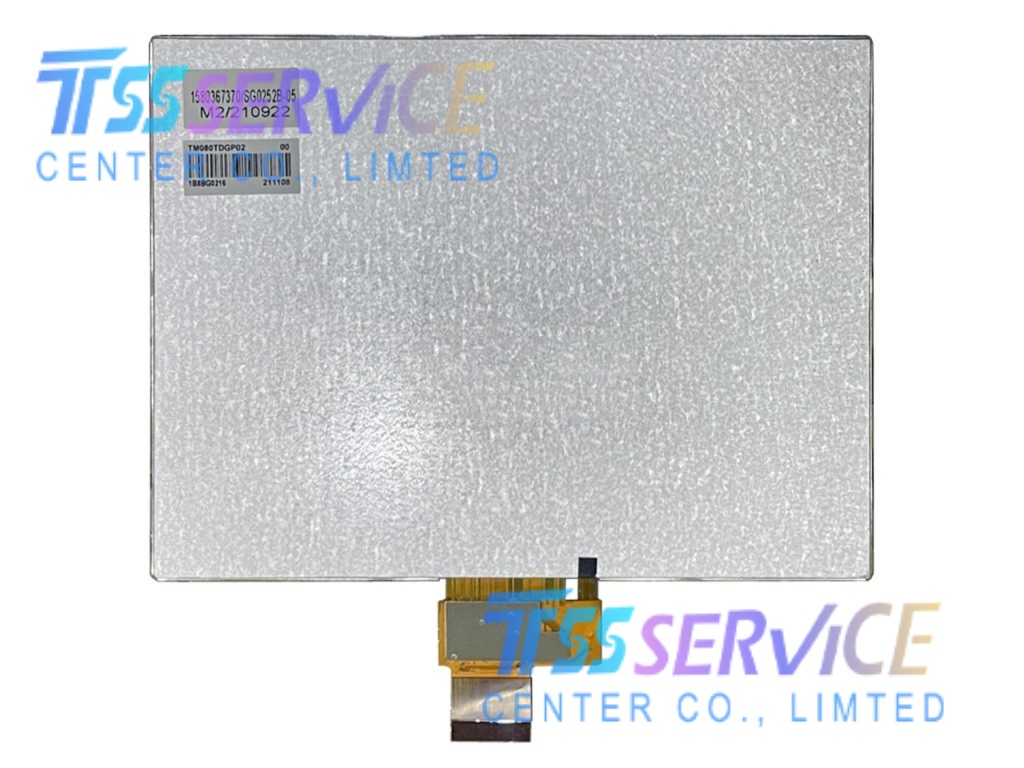

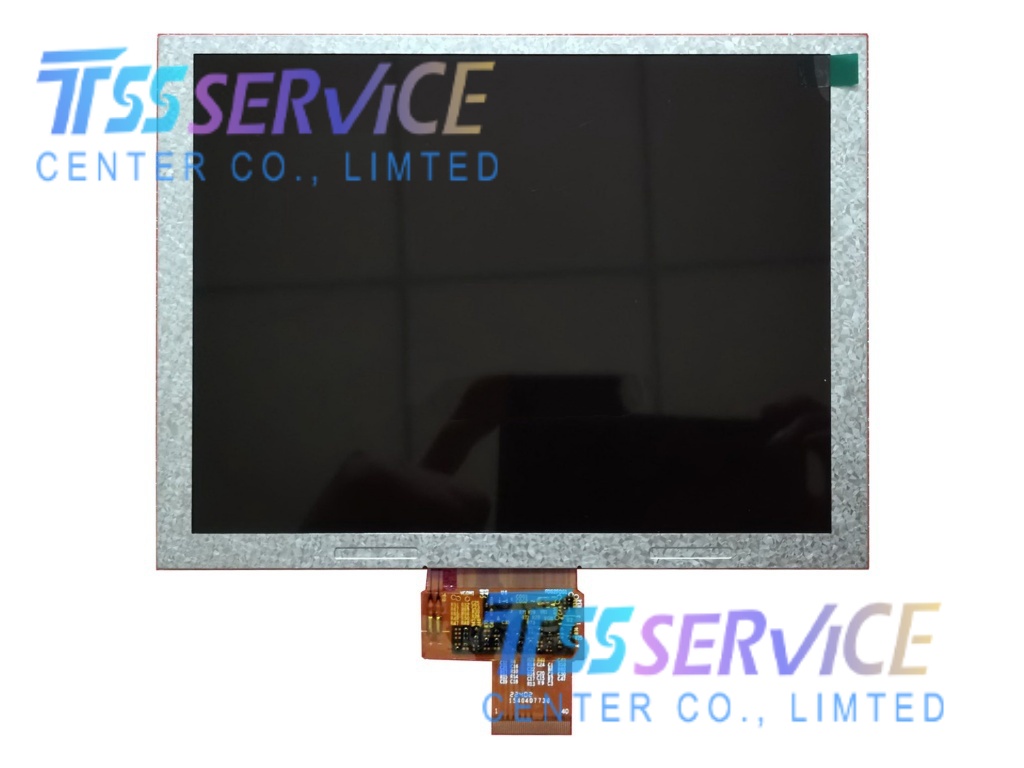

Tianma TM080TDGP02 8 Inch 800×480 TFT LCD Panel Industrial HMI Display Screen
| Item |
Detailed Parameter |
| Manufacturer |
Tianma |
| Model Number |
TM080TDGP02 |
| Diagonal Size |
8.0 Inch |
| Panel Type |
a-Si TFT-LCD, Transmissive LCM Module |
| Native Resolution |
1024×768 , 4:3, XGA |
| Pixel Format |
RGB Vertical Stripe |
| Typical Brightness |
450 cd/m² (Typ.) |
| Typical Contrast Ratio |
1800:1 (TM Mode) |
| Display Mode |
Normally Black, Transmissive |
| View Direction |
Symmetry |
| Display Colors |
16.7M, 50% NTSC |
| Refresh Rate |
60Hz |
| Touch Screen |
Without Touch Panel |
| Backlight |
WLED, 60,000 Hours Lifespan, No Built-in Driver IC |
| Signal Interface |
Parallel RGB (1 Channel), 40 Pins FPC Connector |
| Operating Temperature |
-20 ℃ ~ +70 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
Application Scenarios
Industrial Automation HMI
- Injection molding machine small operation panels
- Packaging, textile and printing equipment control terminals
- Compact PLC cabinet monitoring display screens
- CNC auxiliary parameter display interfaces
Medical & Laboratory Equipment
- Portable vital sign monitoring devices
- Lab analysis testing instrument operation screens
- Beauty & rehabilitation therapy machine control panels
Portable & Handheld Industrial Devices
- Handheld environmental detection analyzers
- Portable industrial measuring & calibration tools
- Agricultural machinery cabin display terminals
Small Commercial Embedded Equipment
- Mini self-service information inquiry kiosks
- Vending machine interactive display modules
- Smart home centralized control touch base screens
