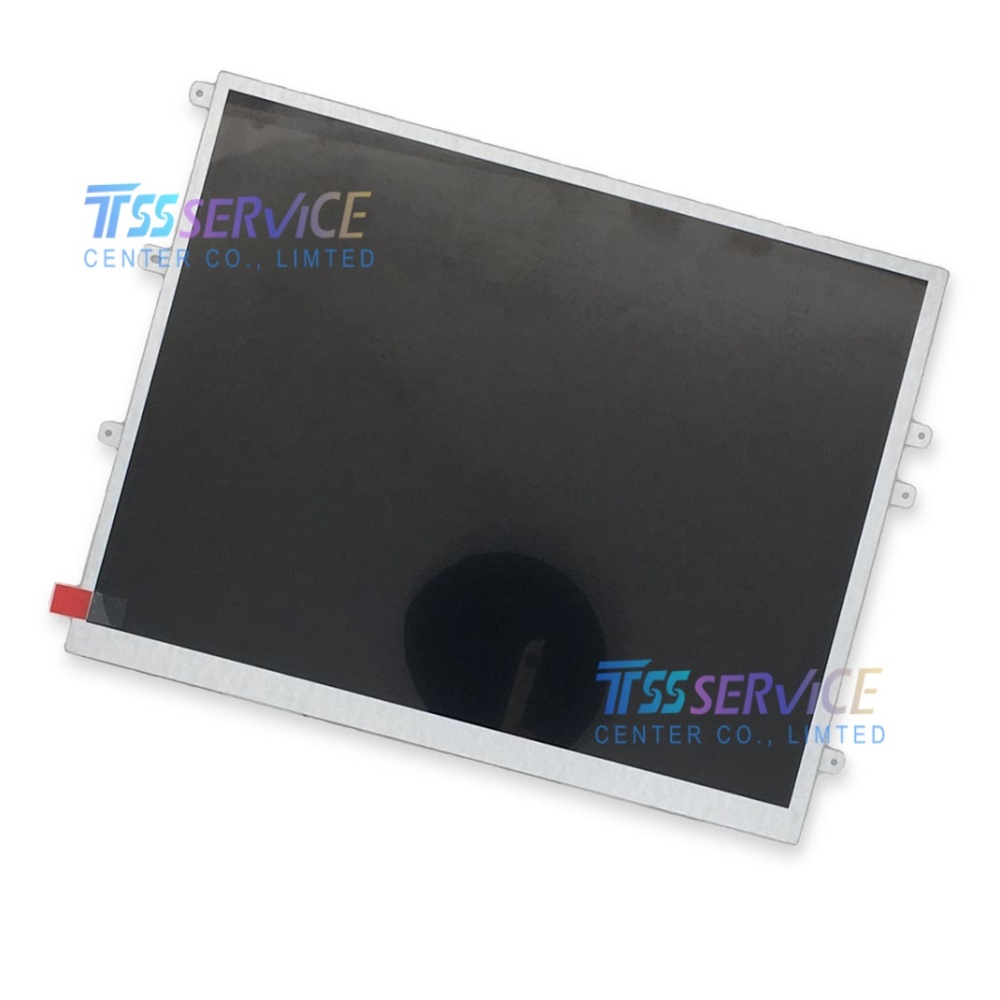

TIANMA NEW 9.0 inch LCD Display Panel TM090RDGP01 for Industrial Digital Photo Frame
| Parameter |
Specification |
| Model Name |
TM090RDGP01 |
| Manufacturer |
Tianma |
| Panel Size |
9.0 inches |
| Resolution |
800 × 600 (VGA) |
| Aspect Ratio |
4:3 |
| Display Type |
TFT-LCD, a-Si (Active Matrix) |
| Brightness |
1000 cd/m² (Typical, High Brightness) |
| Contrast Ratio |
700:1 (Typical) |
| Backlight |
LED (High Brightness) |
| Interface |
LVDS (1 channel, 8-bit), 20 pins |
| Operating Temp |
-30°C to 80°C (Wide Temperature) |
| Surface Treatment |
Anti-Glare (Matte) |
- Transportation Displays: It is widely used in automotive infotainment systems, dashboard displays, and marine navigation screens where sunlight readability is critical.
- Outdoor Kiosks: The high brightness makes it suitable for ATMs, ticketing machines, and self-service terminals located outdoors or in brightly lit lobbies.
- Industrial Control Panels: It serves as the Human-Machine Interface (HMI) for factory automation equipment, robotics control panels, and handheld industrial PDAs.
- Avionics and Military: The panel's ability to operate in extreme temperatures allows it to be used in aircraft cockpit displays and military communication devices.
TIANMA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
