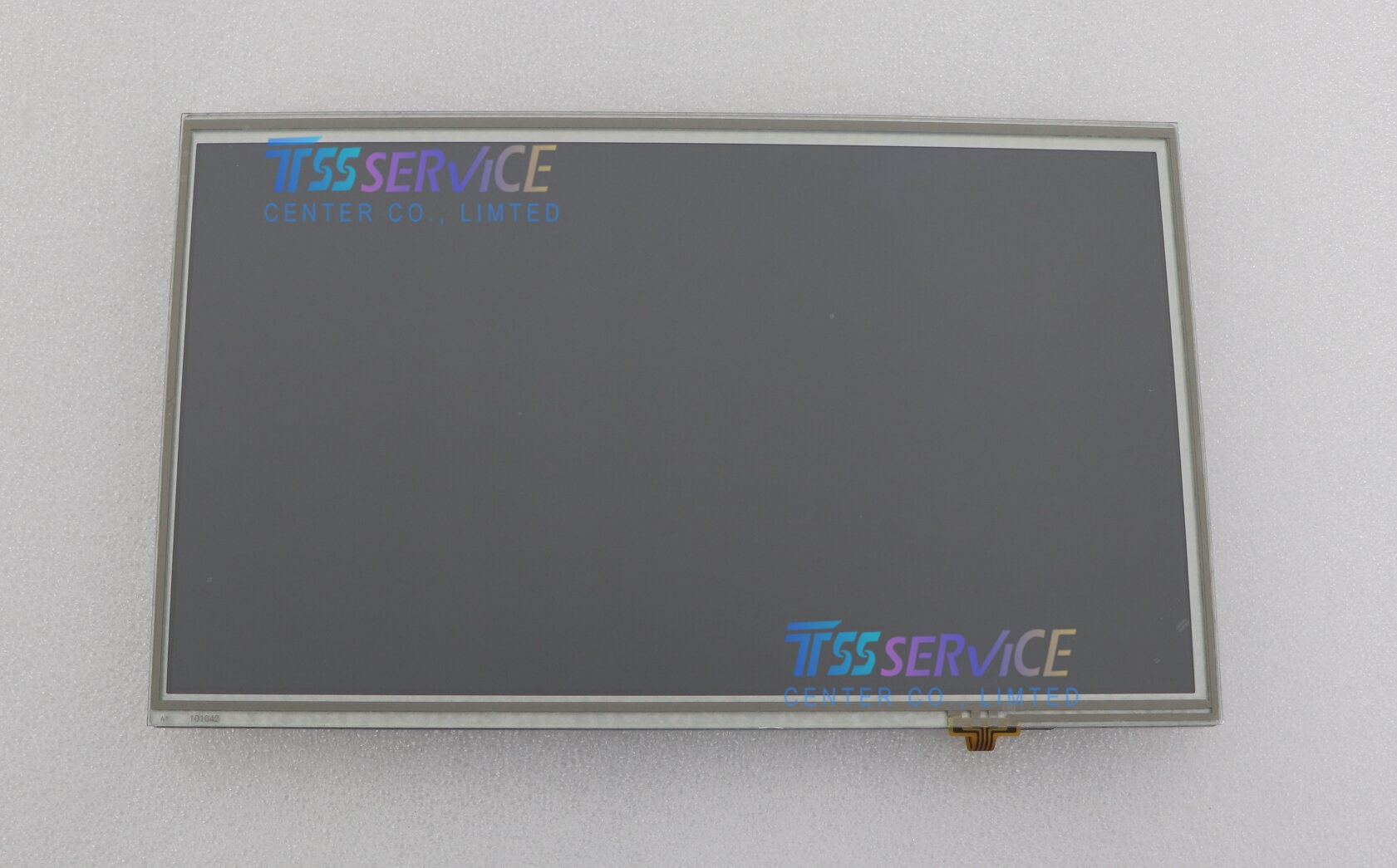

Tianma TM101DDHG01-60 10.1 Inch 1024×600 TFT LCD Module Industrial Display Screen
| Item |
Detailed Parameter |
| Model No. |

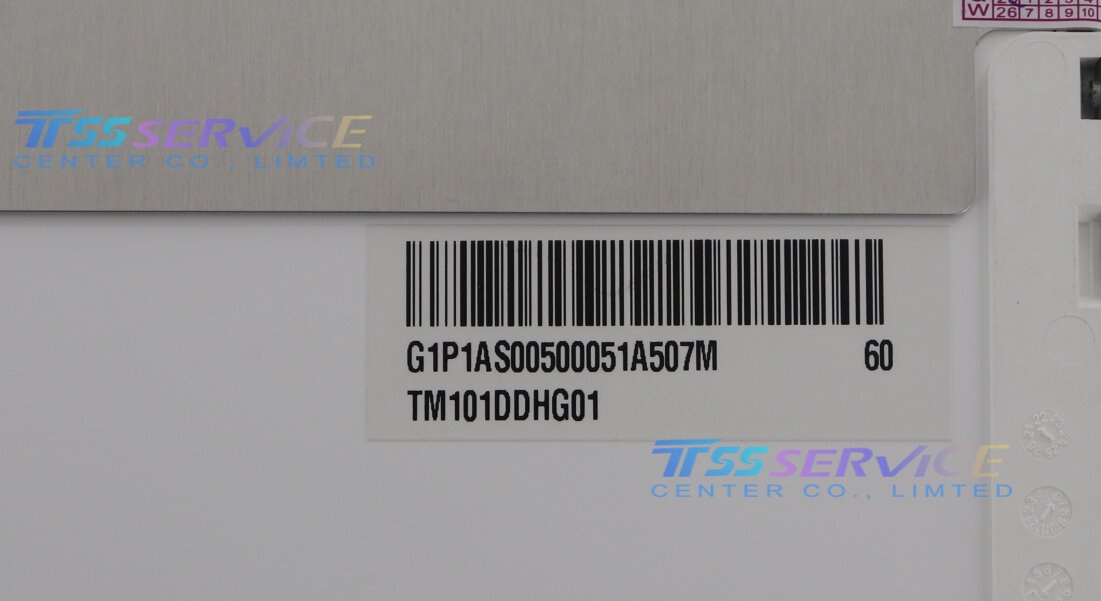

TM101DDHG01-60 |
| Brand |
TIANMA (Tianma) |
| Diagonal Size |
10.1 inch |
| Native Resolution |
1024(RGB) × 600 WSVGA, 117 PPI |
| Pixel Arrangement |
RGB Vertical Stripe |
| Panel Technology |
a-Si TFT-LCD, TN Normally White, Transmissive |
| Typical Brightness |
450 cd/m² |
| Contrast Ratio |
800:1 (Typ.) |
| Color Depth |
262K/16.7M, 47% NTSC |
| Viewing Angle (CR≥10) |
Left 80° / Right 80° / Up 75° / Down 80° |
| Response Time |
Standard Industrial Speed |
| Backlight |
Edge-lit WLED, Long Service Life |
| Signal Interface |

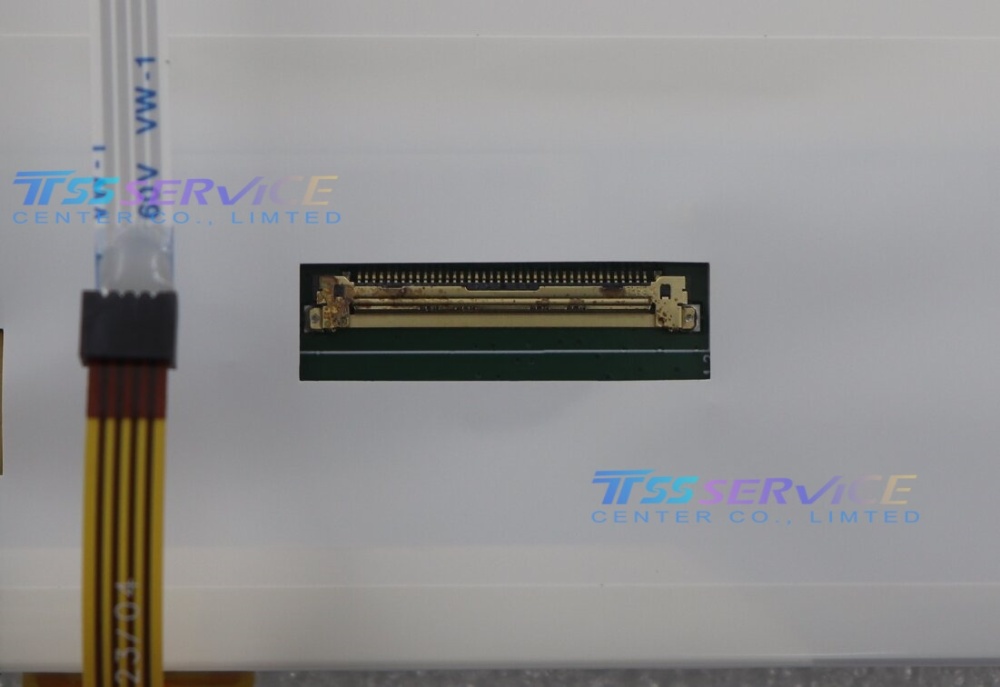

Single Channel LVDS, 40Pin IPEX Connector |
| Active Display Area |
222.72(W) × 125.28(H) mm |
| Overall Outline Dimension |
235.0(W) × 143.0(H) × 4.9(D) mm |
| Surface Treatment |
Anti-Glare AG + 3H Hard Coating |
| Touch Screen |
No Touch Panel |
| Vibration Resistance |
1.5G Industrial Shock & Vibration Proof |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Net Weight |
202g |
| Core Features |
Wide temperature range, High brightness, Anti-glare surface, Stable LVDS signal, Industrial vibration resistance |
Application Paragraph
Tianma TM101DDHG01-60 10.1-inch industrial TFT LCD module is widely deployed in industrial human-machine interfaces, CNC machine operation panels, medical testing & diagnostic equipment, vehicle onboard display units, injection molding machine control screens, environmental monitoring systems, handheld industrial measuring instruments and automated production line terminals. Its wide-temperature performance, high brightness and anti-vibration design make it a premium replacement screen for long-lifecycle industrial and automotive equipment.
