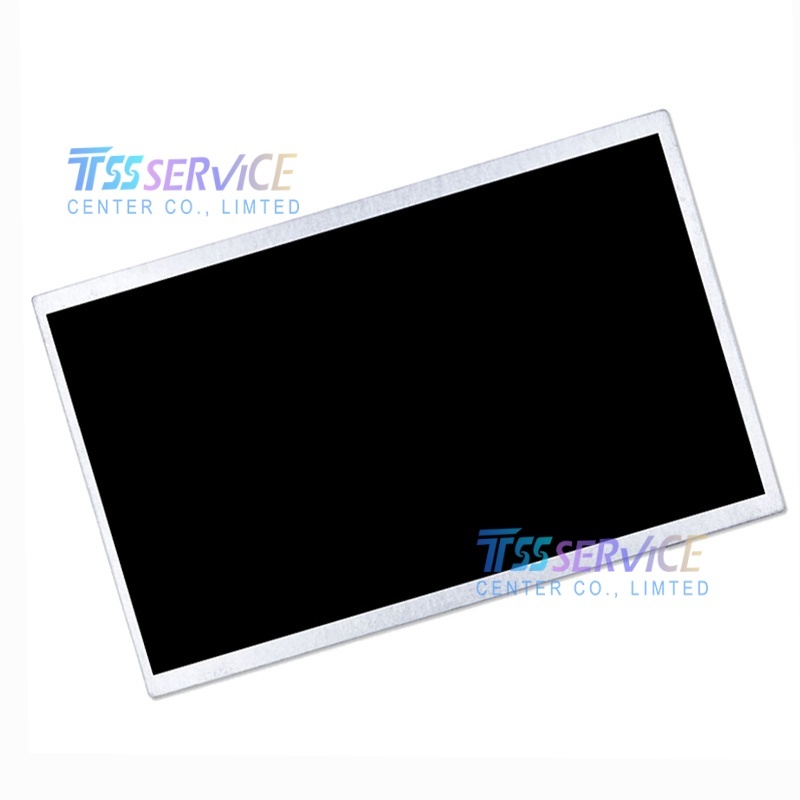

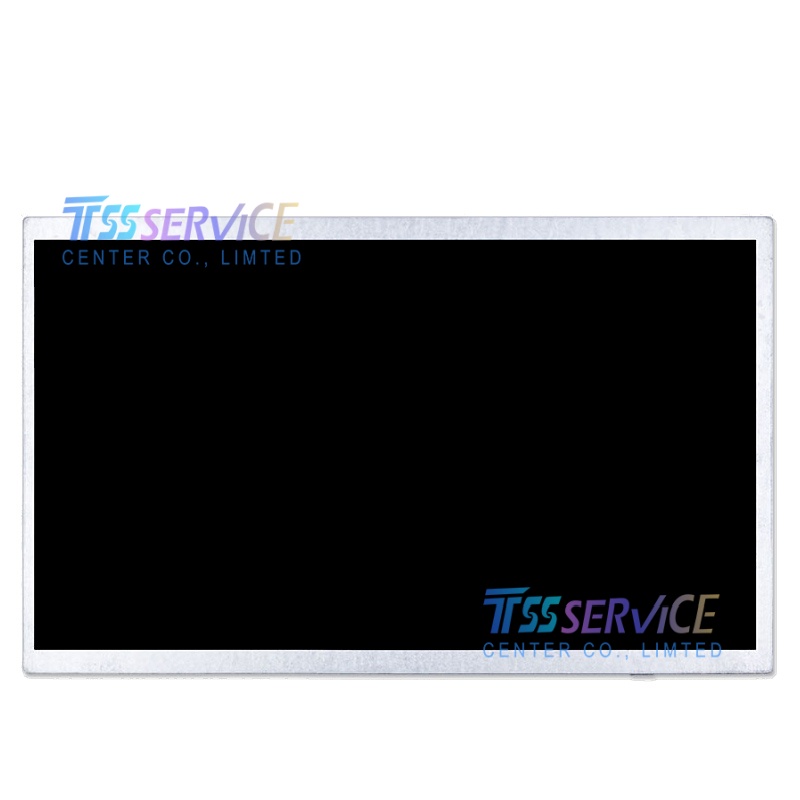

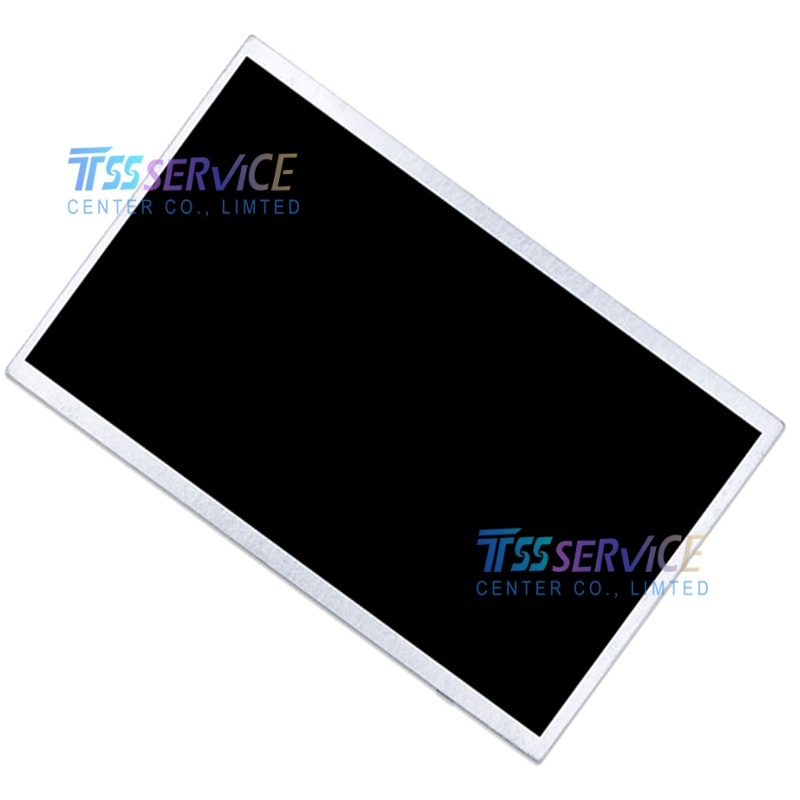

TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial

SKU: TM101DDHG05
Model P/N: TM101DDHG05
Diagonal Size: 10.1"
Panel Type: a-Si TFT-LCD, LCM
Number of dots: 1024(RGB)×600, WSVGA
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$77.00 $75.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
1/1
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
  • Description
TM101DDHG05 Tianma 10.1 inch 1024×600 LCD Panel Display For Industrial
Parameter Details
Manufacturer Tianma Microelectronics
Model Number TM101DDHG05-00
Panel Type a-Si TFT-LCD, Transmissive, Normally Black
Diagonal Size 10.1" (inch)
Resolution 1024(RGB) × 600 (WSVGA), 117 PPI
Aspect Ratio 16:9 (W:H)
Pixel Format RGB Vertical Stripe
Brightness 1400 cd/m² (Typical)
Contrast Ratio 500:1 (Typical)
Viewing Angle 80/80/75/80° (L/R/U/D, CR≥10)
Color Depth 16.7M (8-bit)
Response Time 30 ms (Typical, Tr+Td)
Active Area 222.72 (W) × 125.28 (H) mm
Outline Dimensions 235.0 (W) × 143.0 (H) × 5.7 (D) mm
Surface Anti-glare, Hard coating (3H)
Backlight WLED, 6 strings, Driver IC built-in
Interface LVDS (1 channel, 6/8-bit), 45 pins
Supply Voltage 3.3V (Typical)
Operating Temp. -20°C ~ +70°C
Storage Temp. -30°C ~ +80°C
RoHS Yes

Applications

  • Automotive GPS & Car Navigation: High brightness for sunlight readability in dashboards.
  • Industrial HMI & Outdoor Displays: Factory control panels, outdoor industrial terminals.
  • Marine & Avionics Displays: Rugged, high-brightness screens for transportation.
  • Medical Portable Devices: High-visibility monitors for field/ambulance use.
  • Digital Signage & Kiosks: Outdoor advertising, information kiosks.
  • Rugged Tablets & Handhelds: Military, construction, field service devices.
