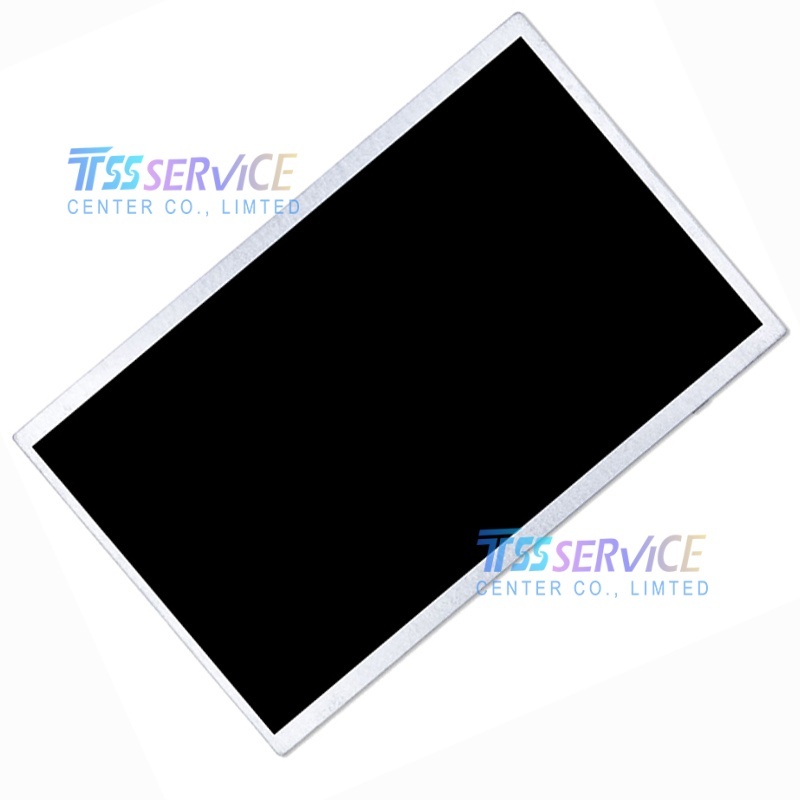

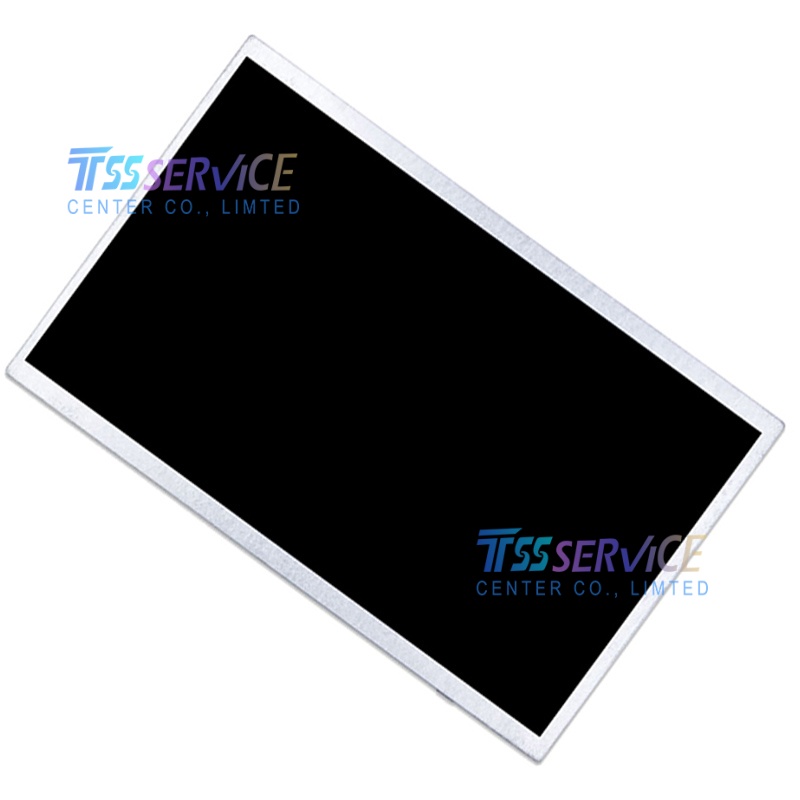

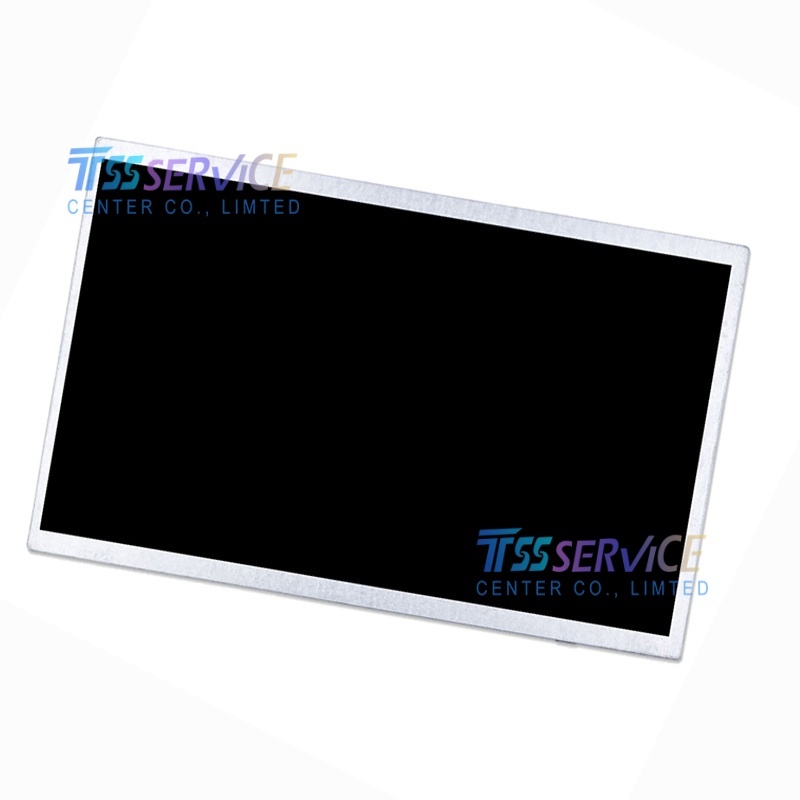

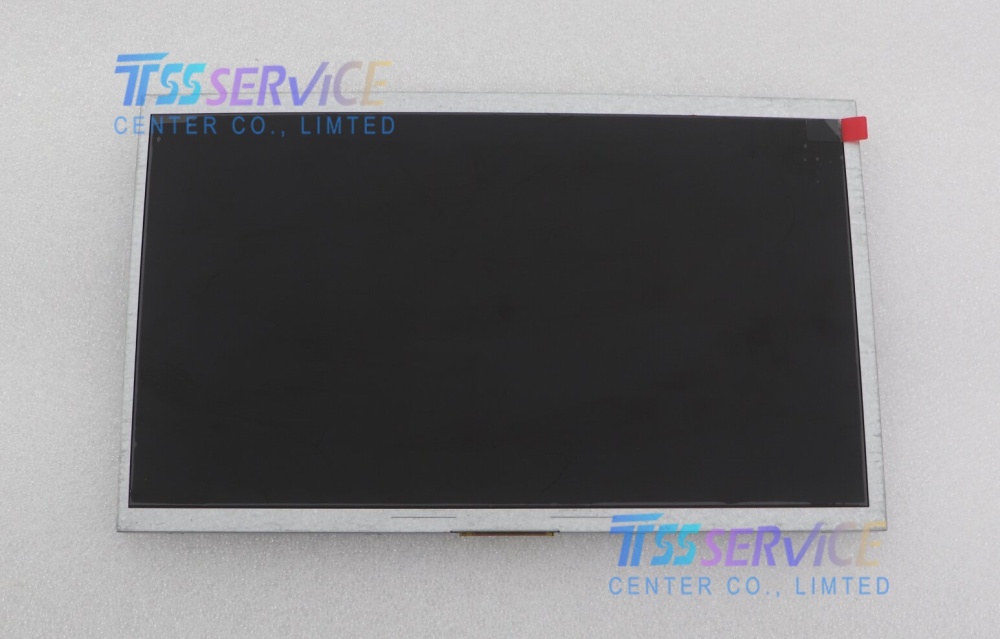

TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial

SKU: TM101DDHG06
Model Number: TM101DDHG06
Brand: TIANMA Micro-electronics a-Si TFT-LCD LCM
Diagonal Display Size: 10.1 Inch Landscape
Native Resolution:1024(RGB) × 600 WSVGA, 16:9 Aspect Ratio, 117 PPI
Pixel Layout: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$58.00 $56.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
1/1
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
  • Description
TM101DDHG06 10.1 Inch Tianma 1024×600 TFT LCD Screen Display Panel for Industrial
Item Specification Parameter
Model Number TM101DDHG06
Brand TIANMA Micro-electronics a-Si TFT-LCD LCM
Diagonal Display Size 10.1 Inch Landscape
Native Resolution 1024(RGB) × 600 WSVGA, 16:9 Aspect Ratio, 117 PPI
Pixel Layout RGB Vertical Stripe Pixel Arrangement
Panel Display Mode TN, Normally White, Transmissive
Active Display Area 222.72 (W) × 125.28 (H) mm
Overall Outline Dimension 235 (W) × 143 (H) × 5.5 (T) mm
Typical Brightness 350 cd/m²
Typical Contrast Ratio 500:1 (TM Transmission Mode)
Viewing Angle L/R/U/D (CR≥10) 80° / 80° / 75° / 80°
Typical Response Time Tr+Td 16 ms
Refresh Frequency 60Hz Standard Industrial Rate
Color Performance 262K / 16.7M True Color
Backlight Light Source 3S8P Built-in WLED, Lifespan 30,000 Hours, No On-board LED Driver IC
Signal Interface TTL (1 ch, 6/8-bit), 50 pins FPC
Input Logic Voltage 3.3V Standard Industrial Voltage
Surface Treatment Matte Anti-Glare Hard Coating, Anti-scratch
Touch Screen Function Without Integrated Touch Digitizer
Operating Temperature Range -20℃ ~ +70℃
Storage Temperature Range -30℃ ~ +80℃
Net Weight Approx 272g

Applications

  1. Industrial HMI & Factory Automation Control Terminals
    CNC auxiliary operation panels, injection molding machine human-machine interfaces, packaging equipment parameter display screens, assembly line visual monitoring stations, mini industrial all-in-one touch control workstations.
  2. POS & Self-Service Commercial Kiosks
    Supermarket cash register POS machine display modules, retail self-checkout touch screens, vending machine control panels, new energy charging pile data display terminals, information query kiosk main monitors.
  3. Medical Diagnostic & Clinical Monitoring Equipment
    Fixed bedside patient vital sign monitors, portable clinical blood analysis devices, veterinary inspection workstations, medical infusion pump operation display screens, laboratory small analysis equipment monitors.
  4. Construction, Agricultural & Light Commercial Vehicle Displays
    Forklift cabin parameter dashboards, tractor auxiliary control screens, commercial vehicle aftermarket multimedia navigation panels, small engineering machinery monitoring terminals.
  5. Laboratory & Portable Precision Test Measuring Instruments
    Environmental gas detection analyzers, portable power quality testers, optical inspection equipment, industrial pipeline inspection monitors, field portable data recording devices.
