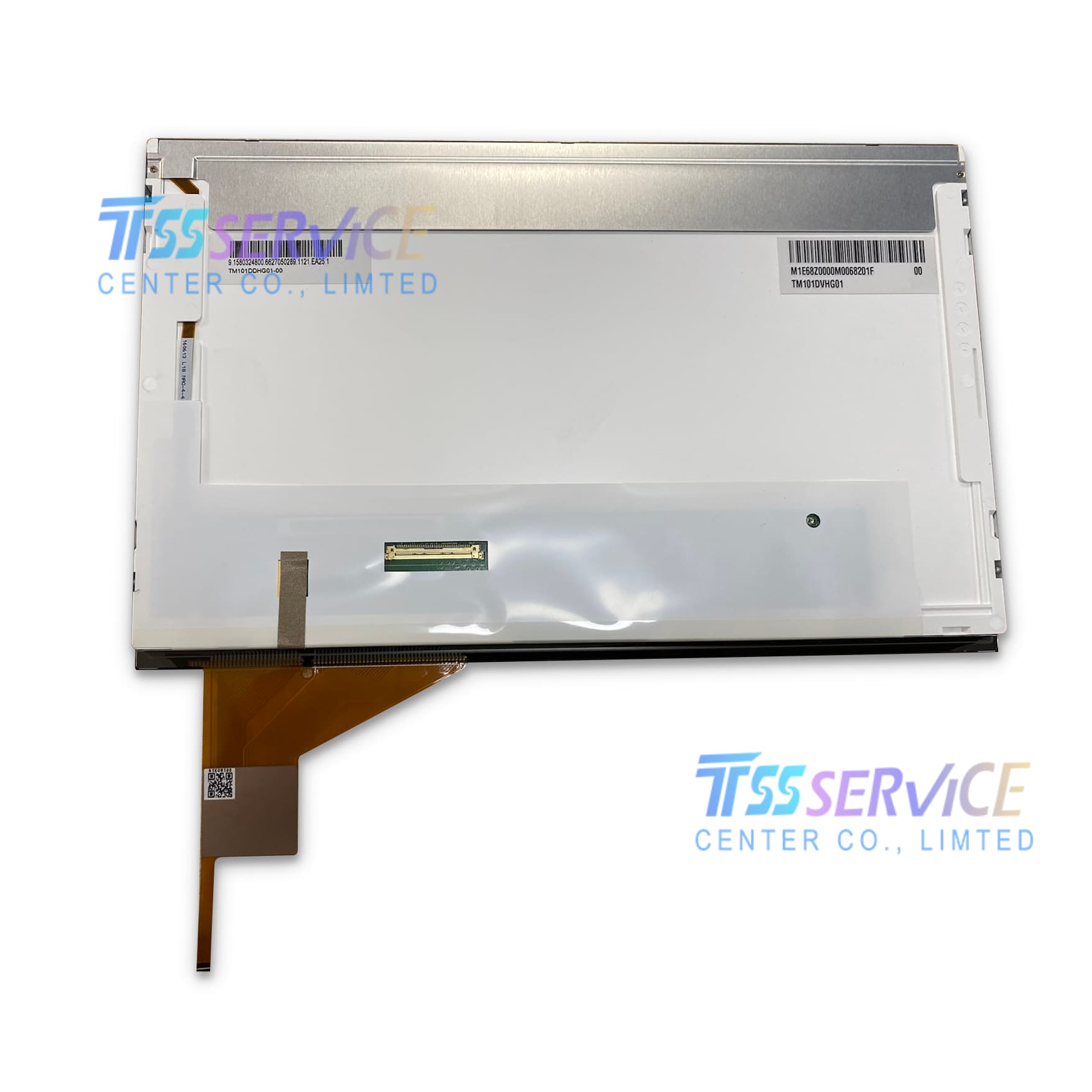

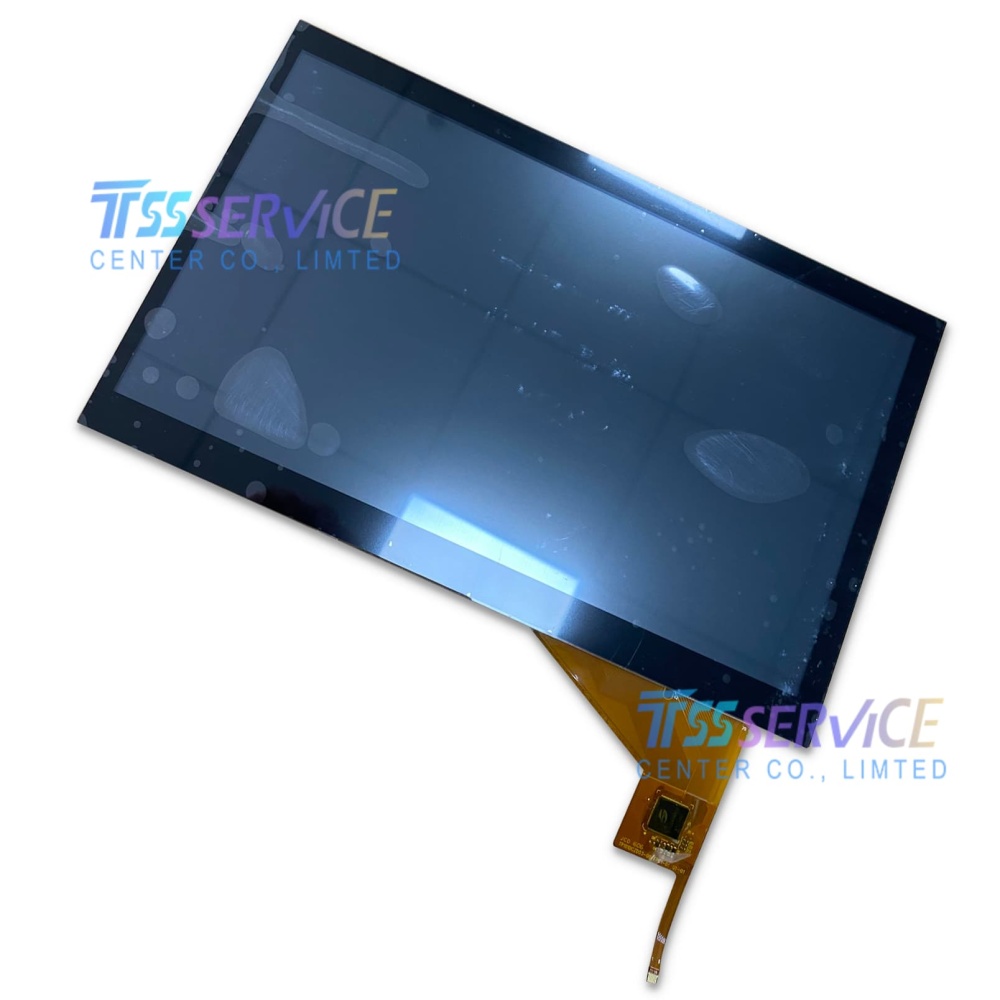

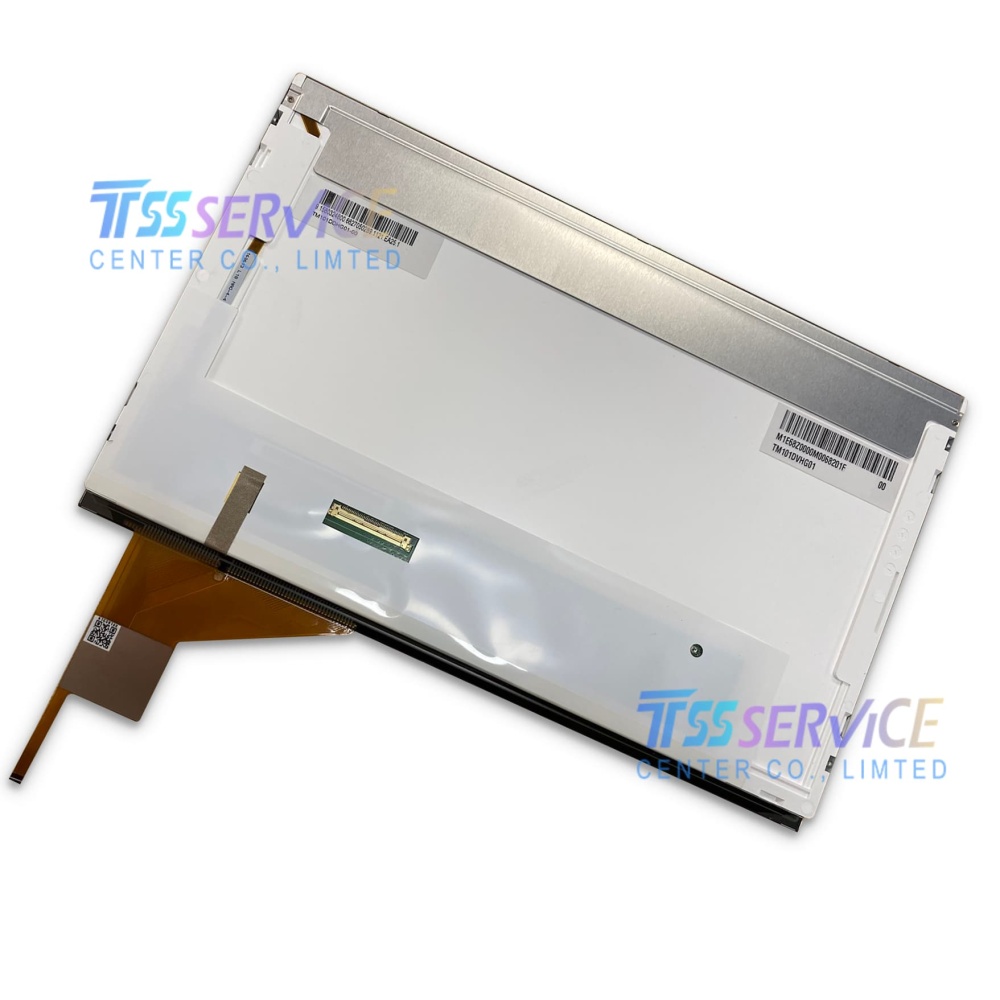

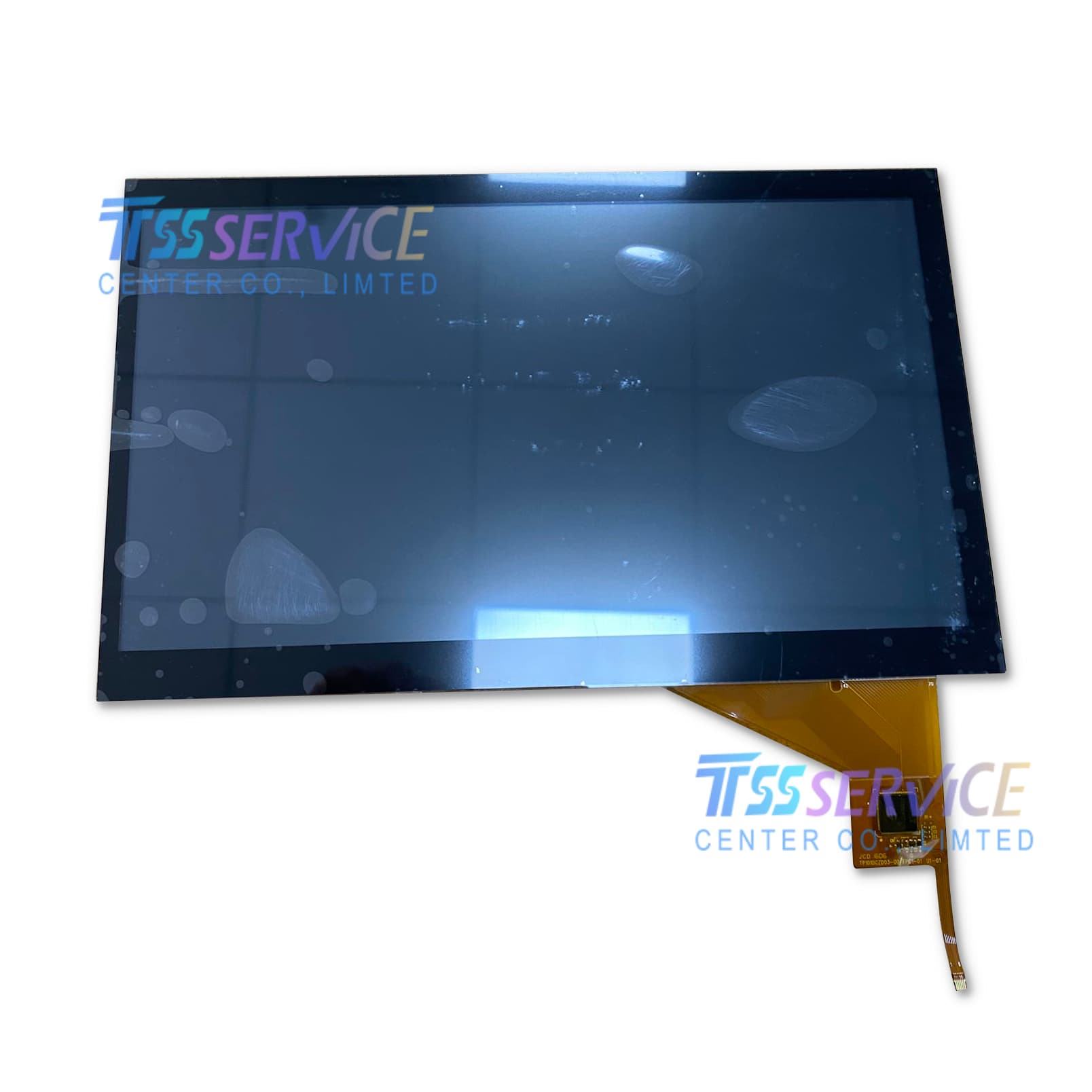

Tianma TM101DVHG01 10.1 Inch TFT LCD Screen 1024×600 Industrial Display Panel

Name: Tianma TM101DVHG01 10.1 Inch TFT LCD Screen 1024×600 Industrial Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM101DVHG01
Price: 148 USD
Availability: InStock

SKU: TM101DVHG01

Model No.: TM101DVHG01
Display Size: 10.1 Inches
Panel Type: a-Si TFT-LCD, LCM, TN Transmissive
Native Resolution: 1024(RGB) × 600 WSVGA, 16:9 Aspect Ratio
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$150.00~~ $148.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Tianma TM101DVHG01 10.1 Inch TFT LCD Screen 1024×600 Industrial Display Panel

Spec Item	Detailed Parameter
Manufacturer	Tianma
Model No.	TM101DVHG01
Display Size	10.1 Inches
Panel Type	a-Si TFT-LCD, LCM, TN Transmissive
Native Resolution	1024(RGB) × 600 WSVGA, 16:9 Aspect Ratio
Dot Layout	RGB Vertical Stripe
Display Mode	Normally White, Transmissive TN
Active Display Area	222.72(W) × 125.28(H) mm
Overall Outline Size	236.4(W) × 147.89(H) × 7.75(D) mm
Net Weight	358g (Typical)
Brightness	360 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ., TM)
Viewing Angle	80°/80°/75°/80° (L/R/U/D, CR≥10)
Response Time	7/9 ms (Tr/Td Typical)
Color Performance	262K / 16.7M Colors, 47% NTSC Gamut
Refresh Frequency	60Hz Standard
Surface Treatment	6H Hard Coating, Scratch Resistant
Backlight Source	Side-entry WLED, 30,000H Lifespan, Built-in LED Driver
Signal Interface	Single Channel 6/8-bit LVDS, 40 Pins FPC Connector
Touch Function	Integrated Projected Capacitive Touch Screen (Multi-touch Support)
Input Voltage	3.3V (Typ.)
Operating Temperature	-20 ℃ ~ +70 ℃
Storage Temperature	-30 ℃ ~ +80 ℃
