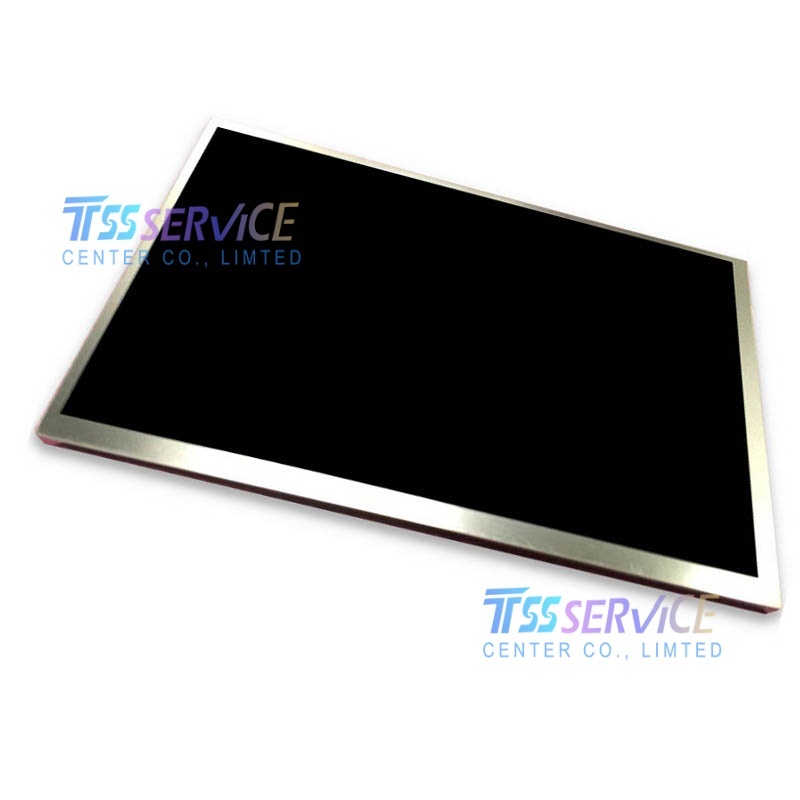

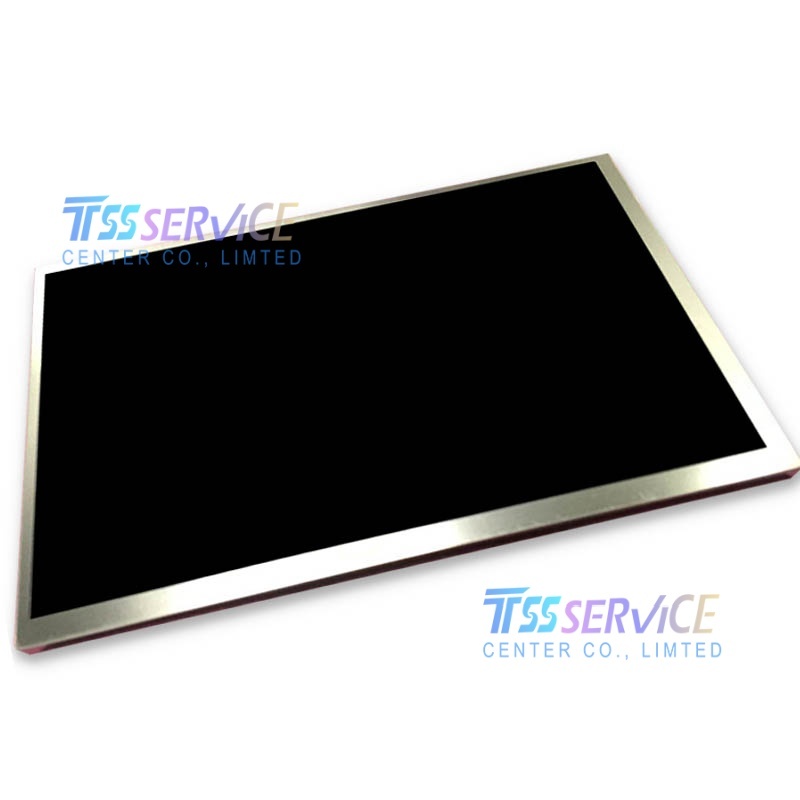

TM101JDHG30 TM101JDHG30-00 10.1 inch 1280×800 TIANMA LCD Panel

Name: TM101JDHG30 TM101JDHG30-00 10.1 inch 1280×800 TIANMA LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM101JDHG30 TM101JDHG30-00
Price: 65 USD
Availability: InStock

SKU: TM101JDHG30 TM101JDHG30-00

1，Condition: New，Grade A

2，Description：TM101JDHG30 TM101JDHG30-00 10.1 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$68.00~~ $65.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TM101JDHG30 (also referenced as TM101JDHG30-00) is a 10.1-inch diagonal a-Si TFT-LCD (Amorphous Silicon Thin-Film Transistor Liquid Crystal Display) module manufactured by TIANMA. It delivers a WXGA resolution of 1280(RGB)×800 pixels with a 16:10 aspect ratio, making it ideal for applications requiring crisp, detailed visuals in a compact form factor.

Parameter	Value
Mfr.	TIANMA
Model Name	TM101JDHG30-00
Display Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, 16:10, WXGA
Pixel Structure	RGB Vertical Stripe
Display Area	216.96(W)×135.6(H) mm
Panel Weight	280g (Typ.)
Outline Size	231.22(W)×150.6(H)×7.1(D) mm
Surface	Hard coating
Brightness	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
View Direction	Symmetry
Response Time	10/15 (Typ.)(Tr/Td) ms
Display Colors	262K/16.7M, 50% NTSC
Frequency	60Hz
Touch Screen	Without
Light Source	6S5P WLED, 50K hrs, With LED Driver
Interface	LVDS (1 ch, 6/8-bit), 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp. -20 ~ 70 °C, Storage Temp. -30 ~ 80 °C

Typical Applications

Thanks to its high brightness, wide viewing angles, integrated LED driver, and robust temperature range, the TM101JDHG30 is well-suited for:

Application Area	Examples
Industrial HMI	Factory automation panels, PLC interfaces, CNC machine displays
Medical Devices	Patient monitors, diagnostic equipment, medical cart terminals
Test & Measurement	Oscilloscopes, spectrum analyzers, benchtop instruments
Home Automation	Smart home control panels, HVAC controllers, security system displays
Commercial Kiosks	POS terminals, self-service kiosks, interactive information displays
Transportation	In-vehicle infotainment (non-automotive grade), railway displays
Gaming & Amusement	Slot machines, arcade game displays, vending machines
