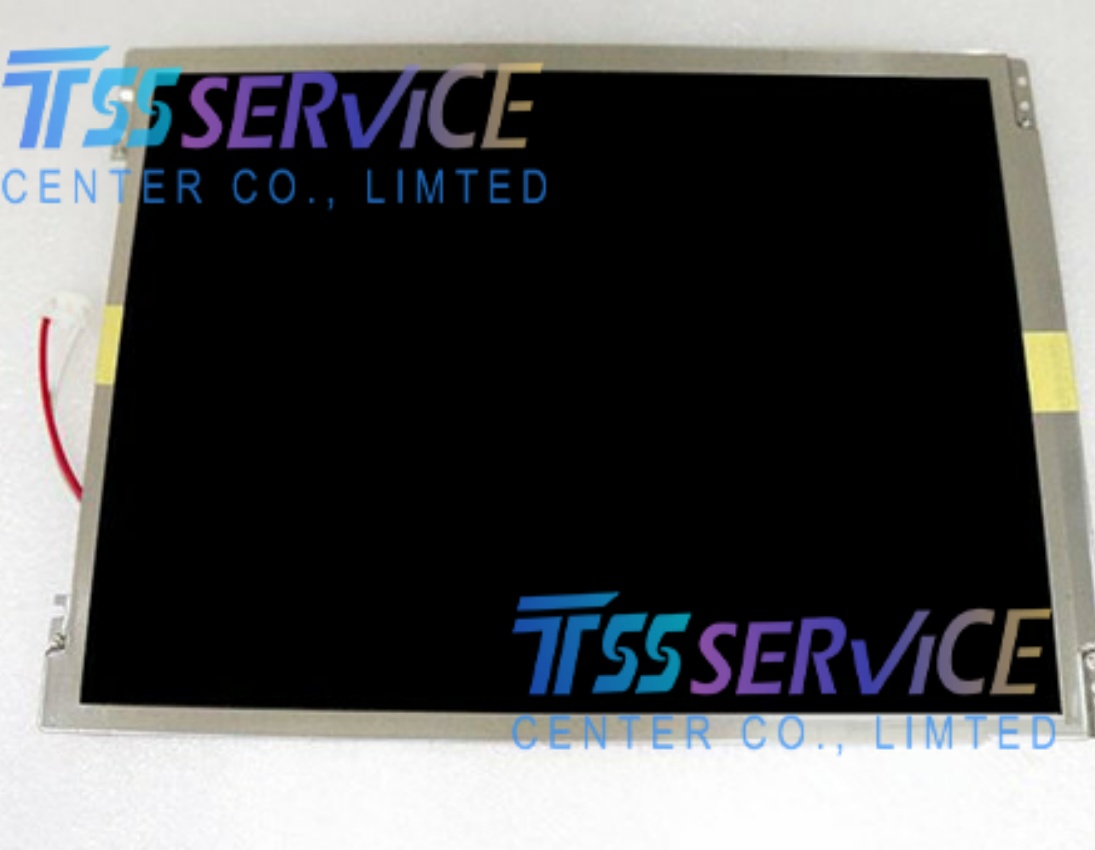

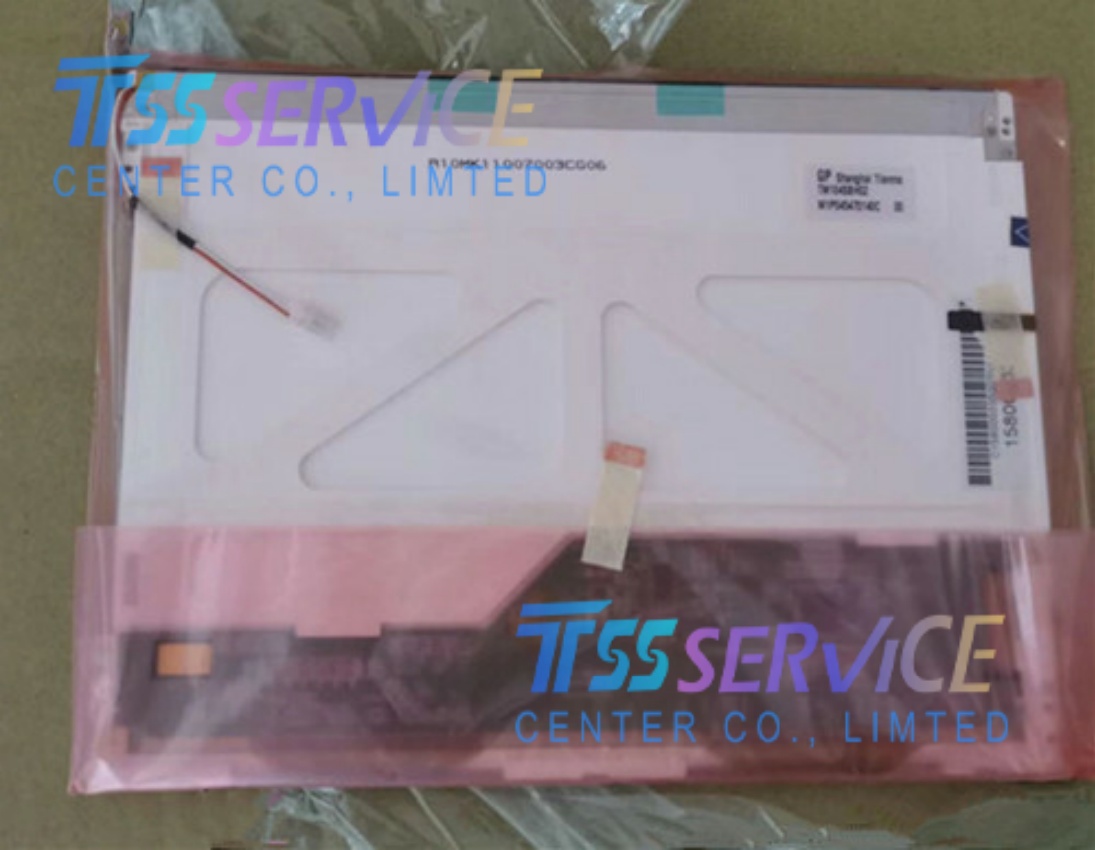

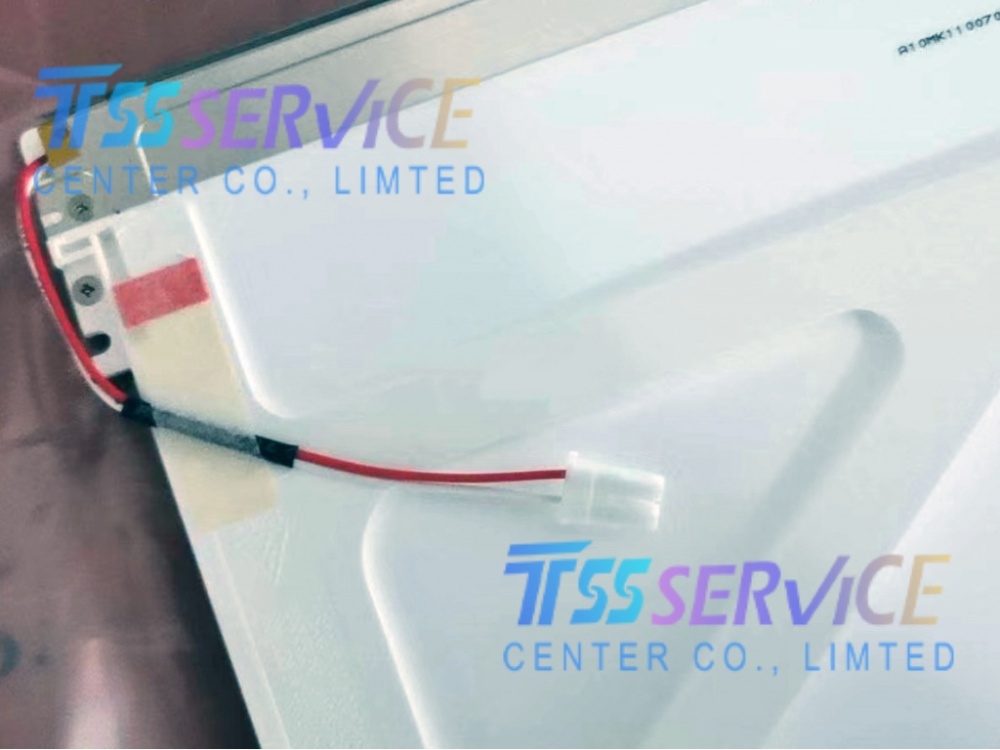

Tianma TM104SBH02 10.4 Inch TFT LCD Screen 800×600 Industrial Display Panel

Name: Tianma TM104SBH02 10.4 Inch TFT LCD Screen 800×600 Industrial Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM104SBH02
Price: 70 USD
Availability: InStock

SKU: TM104SBH02

Model No.: TM104SBH02
Display Size: 10.4 Inches
Panel Type: a-Si TFT-LCD, LCM, TN Transmissive
Native Resolution: 800(RGB) × 600 SVGA, 4:3 Classic Industrial Aspect Ratio
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$75.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Tianma TM104SBH02 10.4 Inch TFT LCD Screen 800×600 Industrial Display Panel

Spec Item	Detailed Parameter
Manufacturer	Tianma Microelectronics
Model No.	TM104SBH02
Display Size	10.4 Inches
Panel Type	a-Si TFT-LCD, LCM, TN Transmissive
Native Resolution	800(RGB) × 600 SVGA, 4:3 Classic Industrial Aspect Ratio
Dot Layout	RGB Vertical Stripe
Display Mode	Normally White, Transmissive TN
Active Display Area	211.2(W) × 158.4(H) mm
Brightness	200 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ., TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Response Time	10/15 ms (Tr/Td Typical)
Color Performance	262K, 44% NTSC
Refresh Frequency	60Hz Standard
Surface Treatment	3H Anti-glare Hard Coating, Anti-scratch & Anti-reflection
Backlight Source	6S5P WLED, 20,000H Lifespan, External Driver Required
Signal Interface	Single Channel 6-bit LVDS, 20 Pins FPC Connector
Touch Function	Integrated 4-Wire Resistive Single-point Touch Screen
Input Voltage	3.3V (Typ.)
Operating Temperature	-10 ℃ ~ +60 ℃
Storage Temperature	-20 ℃ ~ +70 ℃
