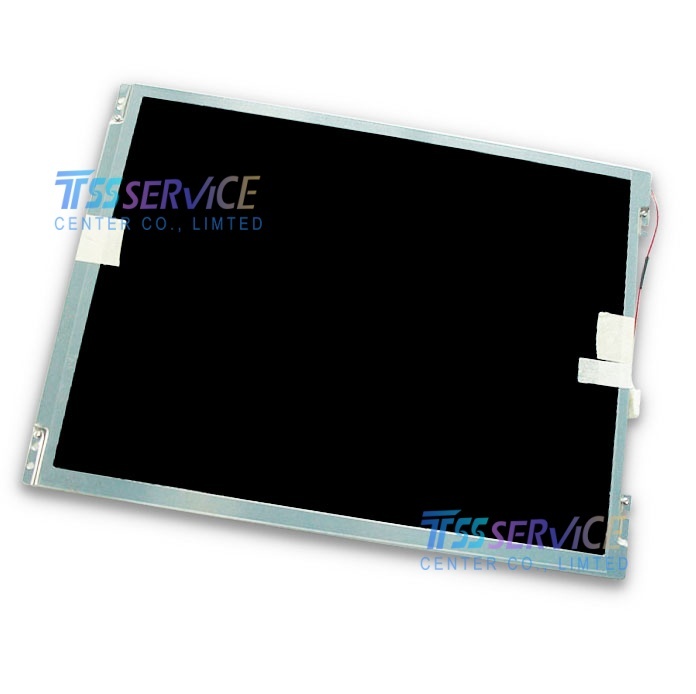

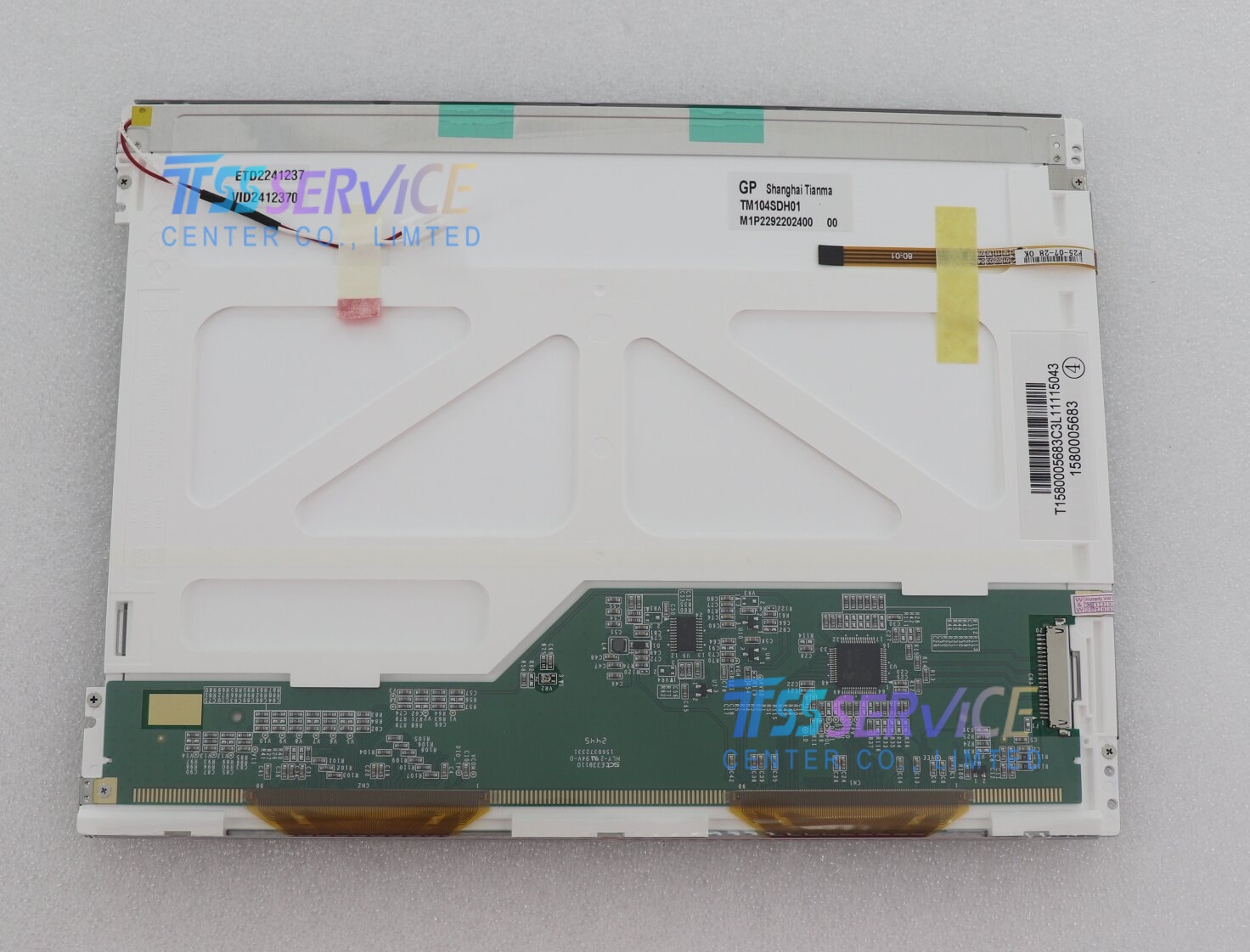

TM104SDH01-00 10.4‘’ 800×600 Lcd Display Panel for TIANMA

SKU: TM104SDH01-00 TM104SDH01-V2.1
Model P/N:TM104SDH01-00
Diagonal Size:10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution:800(RGB)×600, SVGA  96PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$78.00 $72.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM104SDH01-00  10.4‘’ 800×600 Lcd Display Panel for TIANMA
  • TM104SDH01-00  10.4‘’ 800×600 Lcd Display Panel for TIANMA
  • TM104SDH01-00  10.4‘’ 800×600 Lcd Display Panel for TIANMA
  • TM104SDH01-00  10.4‘’ 800×600 Lcd Display Panel for TIANMA
1/1
  • TM104SDH01-00  10.4‘’ 800×600 Lcd Display Panel for TIANMA
  • TM104SDH01-00  10.4‘’ 800×600 Lcd Display Panel for TIANMA
  • Description
The TM104SDH01-00 is a high-quality 10.4-inch amorphous silicon (a-Si) Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) module manufactured by TIANMA Microelectronics .engineered for reliable performance in industrial and medical applications, this module delivers clear image quality, a slim profile, and robust durability, making it a trusted choice for human-machine interfaces and embedded systems .

Parameter Specification
Brand TIANMA
Model P/N TM104SDH01-00
Diagonal Size 10.4"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 96PPI
Pixel Format RGB Vertical Stripe
Active Area 211.2(W)×158.4(H) mm
Bezel Opening 215.0(W)×162.0(H) mm
Outline Dim. 236(H)×176.9(V)×5.9(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 10/15 (Typ.)(Tr/Td) ms
Viewing Angle 70/70/60/70 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K 50% NTSC
Light Source WLED [65GP], 30K hours, W/O Driver
Weight 288g
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 6-bit), 20 pins Connector
Power Supply 3.3V (Typ.)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

Applications

The TM104SDH01-00 is ideally suited for a wide variety of industrial and commercial applications where reliability and slim design are critical, including:

  • Industrial Control Systems and human-machine interfaces (HMI)

  • Medical devices and patient monitoring systems

  • Industrial instrumentation and test equipment

  • Factory Automation (FA) equipment

  • Portable diagnostic tools and embedded systems

  • Banking terminals and kiosks .
