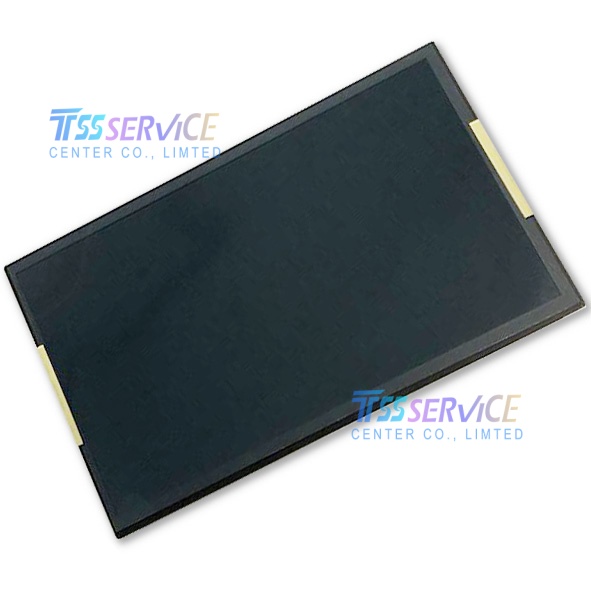

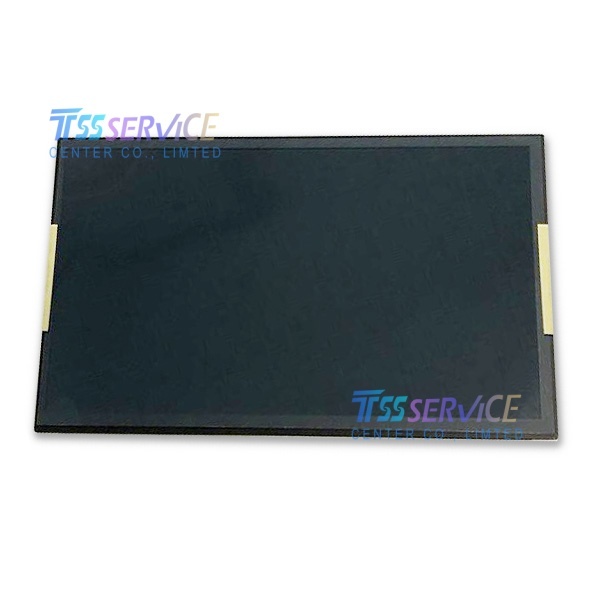

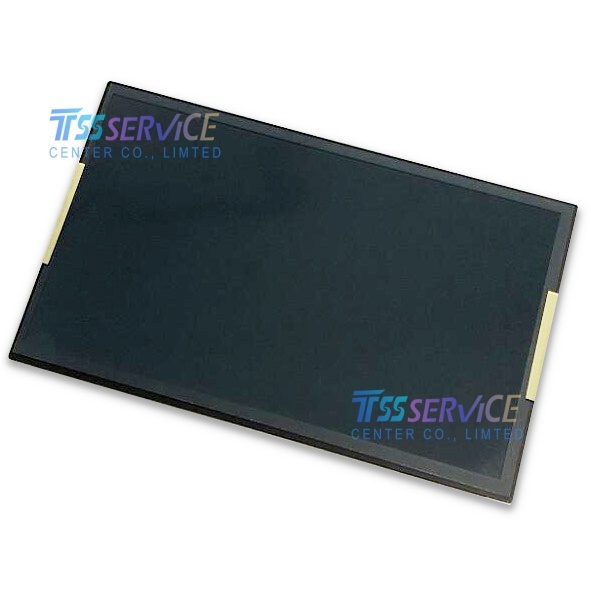

TM116VDSP02-00 Tianma 11.6 inch 1920×1080 LCD Display Panel Screen for Industrial

Name: TM116VDSP02-00 Tianma 11.6 inch 1920×1080 LCD Display Panel Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM116VDSP02-00
Price: 128 USD
Availability: InStock

SKU: TM116VDSP02-00

Model P/N: TM116VDSP02-00
Diagonal Size: 11.6"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD 190PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$130.00~~ $128.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM116VDSP02-00 Tianma 11.6 inch 1920×1080 LCD Display Panel Screen for Industrial

Parameter	Details
Part Number	TM116VDSP02-00
Diagonal Size	11.6" (29.46 cm)
Resolution	1920(RGB) × 1080 (FHD)，190 PPI
Aspect Ratio	16:9 (W:H)
Pixel Format	RGB Vertical Stripe
Pixel Pitch	0.1335 × 0.1335 mm
Active Area	256.32 (W) × 144.18 (H) mm
Outline Dimensions	273.5(W)×166.5(H) ×11.5(D) mm
Bezel Area	259.31 (W) × 148.73 (H) mm
Panel Type	a-Si TFT-LCD，SFT，Normally Black，Transmissive
Surface Treatment	Hard Coating (HC)
Brightness	1600 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (Transmissive)
Response Time	25 ms (Typ.) (Tr+Td)
Viewing Angle	88°/88°/88°/88° (Typ.) @ CR≥10
Color Gamut	70% NTSC (Typ.)
Display Colors	16.7M (8-bit)
Backlight	WLED
Backlight VF/IF	36.6 V / 40 mA
Interface	LVDS (2 ch，8-bit)，30 pin（IPEX 20453-230T-11 / 20455-030E-76 ）
Supply Voltages	VCC=3.3V，AVDD=10.7V，VGH=20V，VGL=-7.0V (Typ.)
Power Consumption	~552 mA (VCC=3.3V)
Operating Temp.	-20°C ~ +80°C
Storage Temp.	-30°C ~ +85°C
Touch Screen	No
RoHS	Compliant
