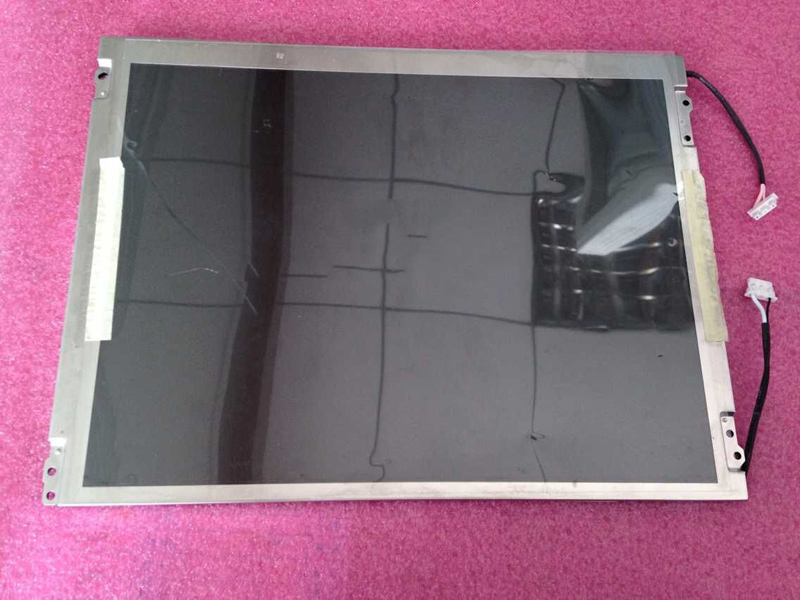

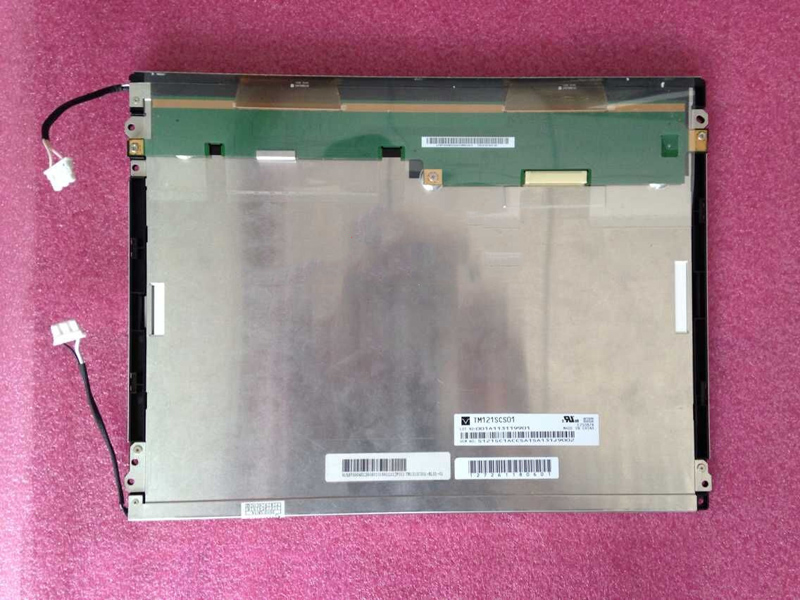

The TM121SCS01 is a 12.1-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module manufactured by Tianma (AVIC) . This industrial-grade SVGA display panel is designed specifically for demanding industrial applications requiring reliable performance, excellent visibility, and long-term durability . The module features a high-brightness CCFL backlight with an exceptional 50,000-hour lifespan and utilizes a standard LVDS interface for easy system integration .
| Attribute |
Value |
| Brand |
AVIC |
| Model P/N |
TM121SCS01 |
| Diagonal Size |
12.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA 82PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
246(W)×184.5(H) mm |
| Bezel Opening |
249.0(W)×188.3(H) mm |
| Outline (mm) |
279×209×11 (H×V×D) |
| Treatment |
Antiglare |
| Luminance |
400 cd/m² (Typ.) |
| Contrast Ratio |
600 : 1 (Typ.) (TM) |
| Viewing Angle |
70/70/50/60 (Typ.)(CR≥10) |
| Response |
10/25 (Typ.)(Tr/Td) ms |
| Work Mode |
TN, Normally White, Transmissive |
| Color Depth |
262K/16.2M 55% NTSC |
| Backlight |
2 pcs CCFL, 50K hours, No Driver |
| Mass |
425g |
| Refresh Rate |
60Hz |
| Touchscreen |
Without |
| Signal Type |
LVDS (1 ch, 6/8-bit), Connector 20 pins |
| Voltage Supply |
3.3V (Typ.) |
| Max. Ratings |
Storage Temp.: -30 ~ 80 °C; Operating Temp.: -20 ~ 70 °C |
Applications
This industrial-grade display panel is ideal for:
-
Industrial control panels and HMI (Human-Machine Interface)
-
CNC machine tools and factory automation systems
-
Medical devices and diagnostic equipment
-
Industrial PCs and operator terminals
-
Test and measurement instruments
-
Energy and power distribution monitoring systems
-
Transportation and logistics control interfaces
-
Legacy system retrofits and equipment repairs
