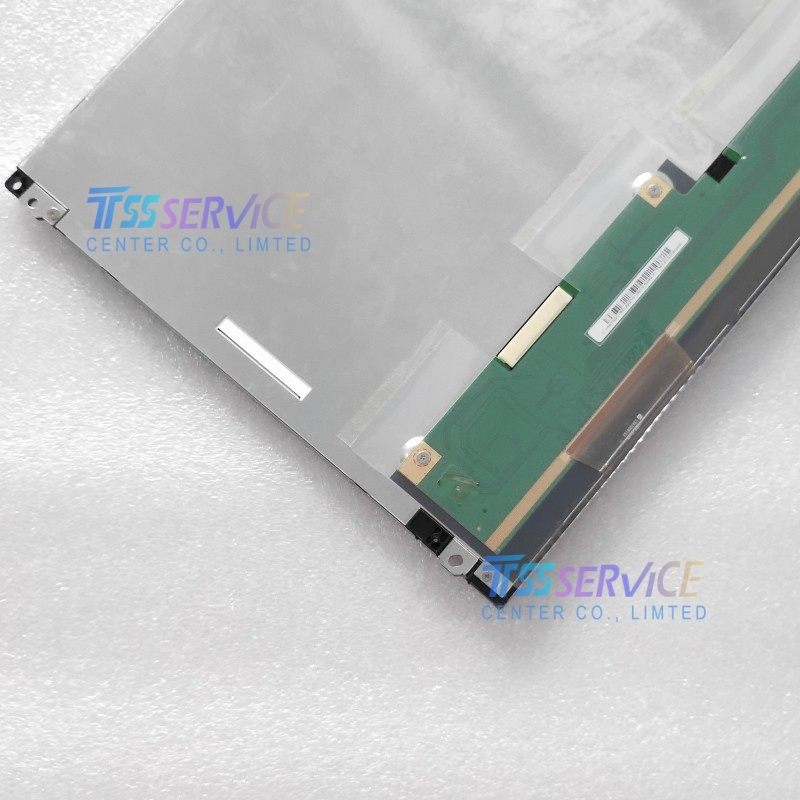

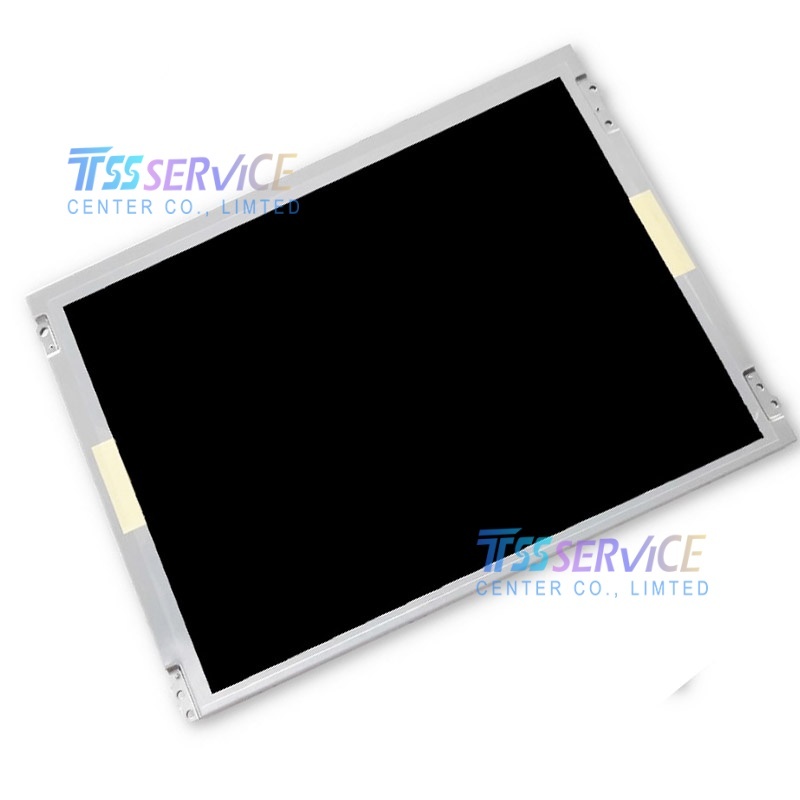

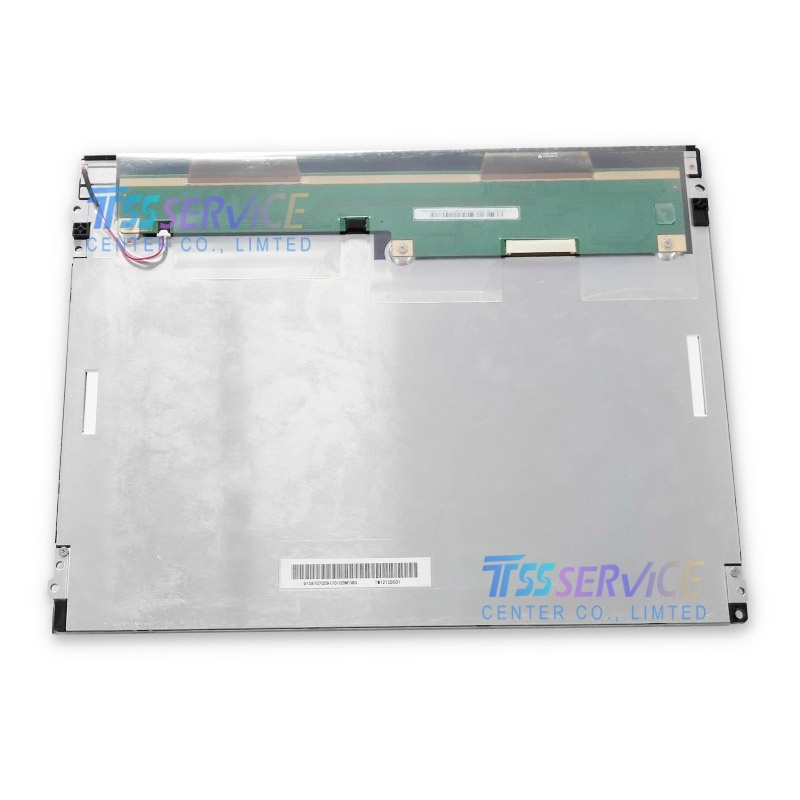

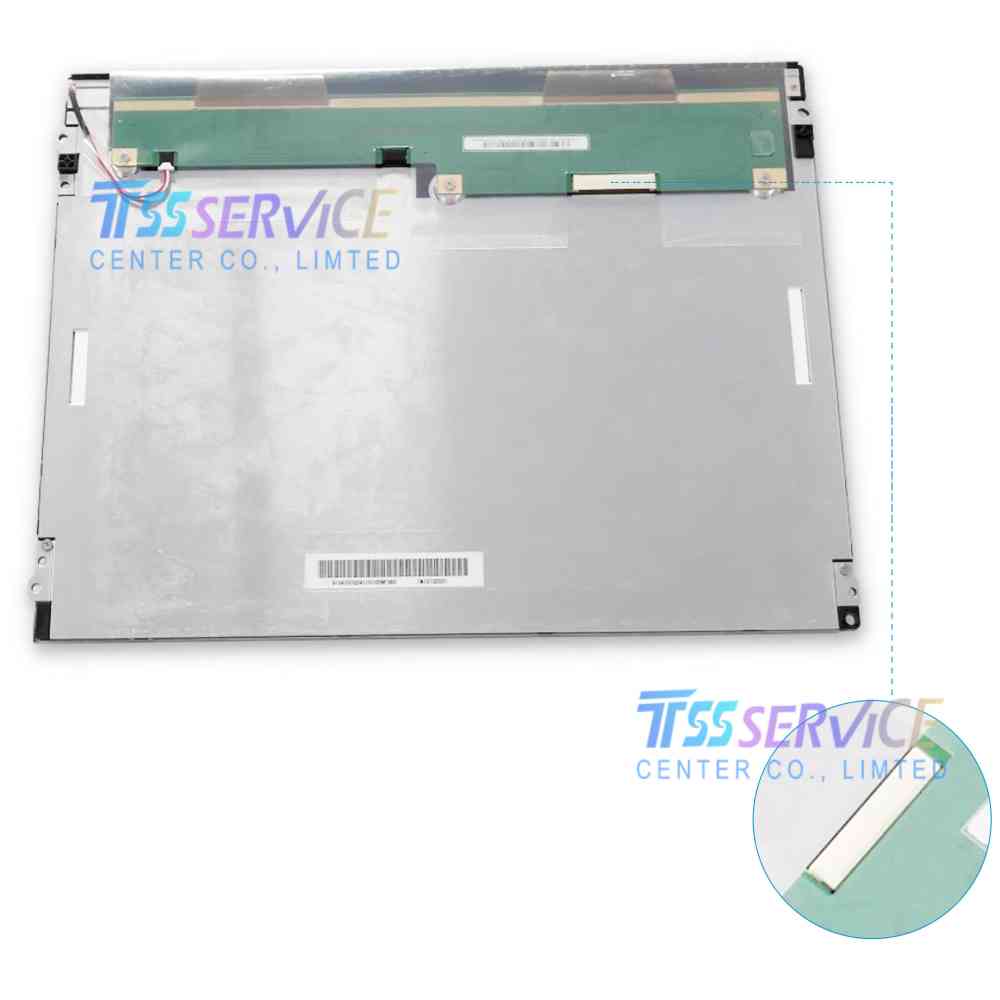

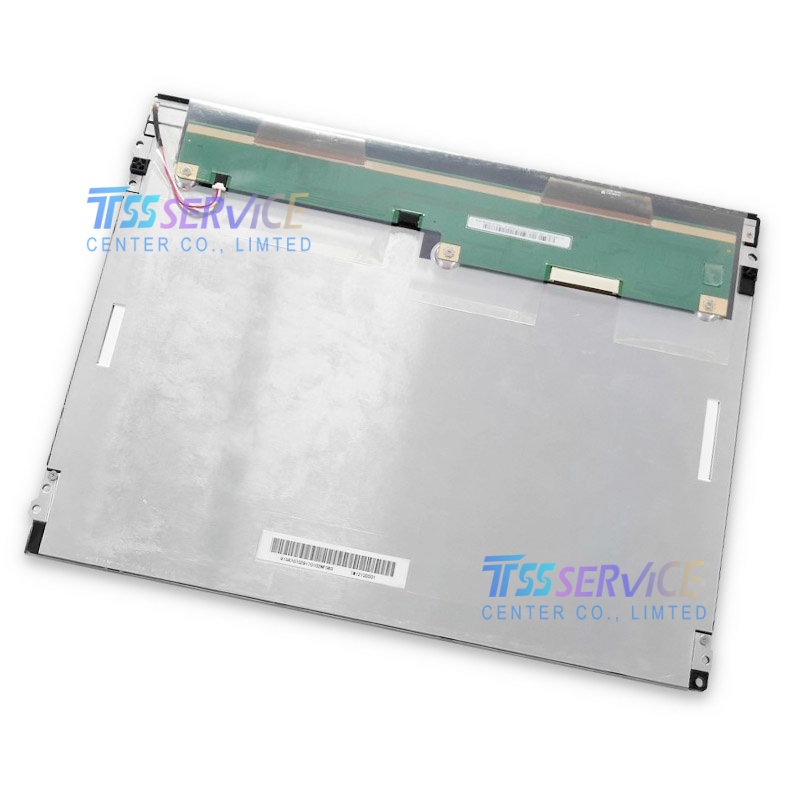

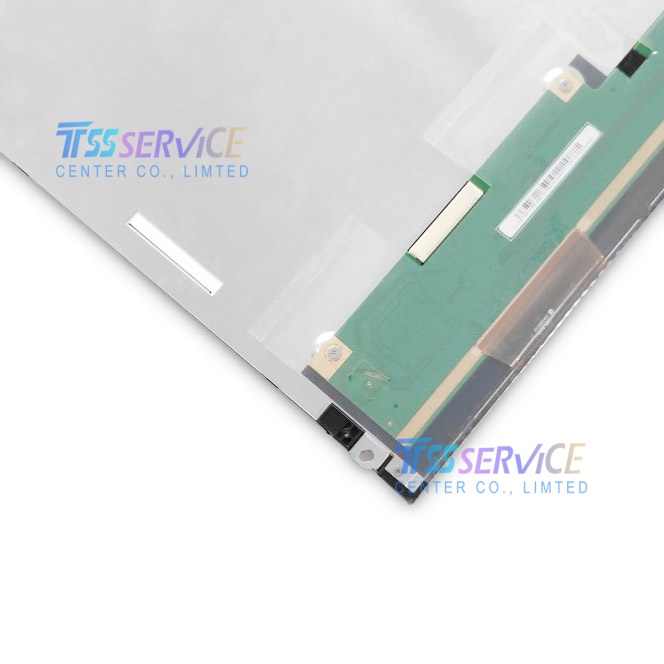

The TM121SDS01 is a 12.1-inch a-Si TFT-LCD module engineered by Tianma for demanding industrial and medical applications . This model features SVGA resolution of 800×600 pixels with a classic 4:3 aspect ratio and 82 PPI pixel density, delivering clear and stable image quality for professional Human-Machine Interface (HMI) environments.
| Parameter |
Description |
| Brand |
TIANMA |
| Model P/N |
TM121SDS01 |
| Diagonal Size |
12.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA 82PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
246(W)×184.5(H) mm |
| Bezel Opening |
249.05(W)×188.3(H) mm |
| Outline Dim. |
279(H)×209(V)×9.3(D) mm |
| Treatment |
Antiglare |
| Luminance |
450 cd/m² (Typ.) |
| Contrast Ratio |
700:1 (Typ.) (TM) |
| Response Time |
10/25 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/65/75 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K/16.2M 55% NTSC |
| Light Source |
WLED [10S2P], 50K hours, With LED Driver |
| Weight |
540g |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Typical Applications:
-
Industrial automation and control panels
-
Medical monitoring equipment
-
Human-Machine Interface (HMI) terminals
-
Financial terminal equipment
-
Point-of-Sale (POS) systems
-
Embedded industrial systems
