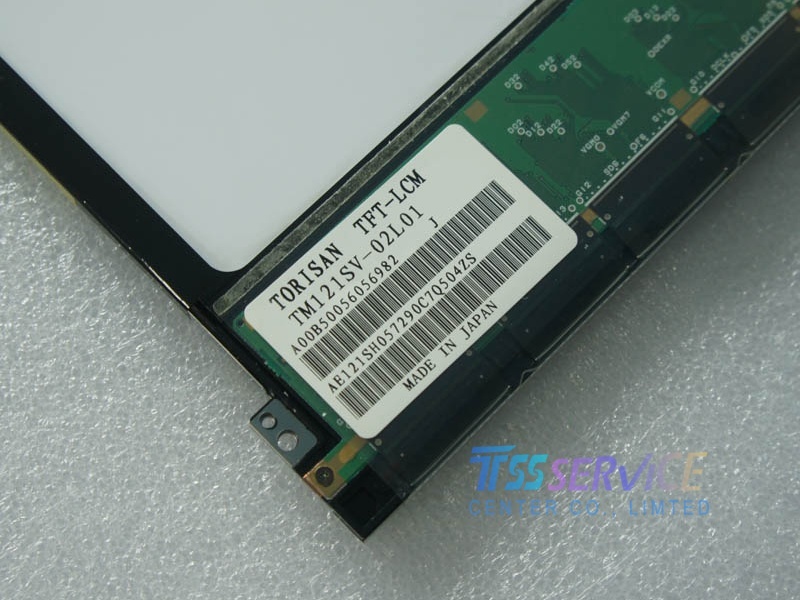

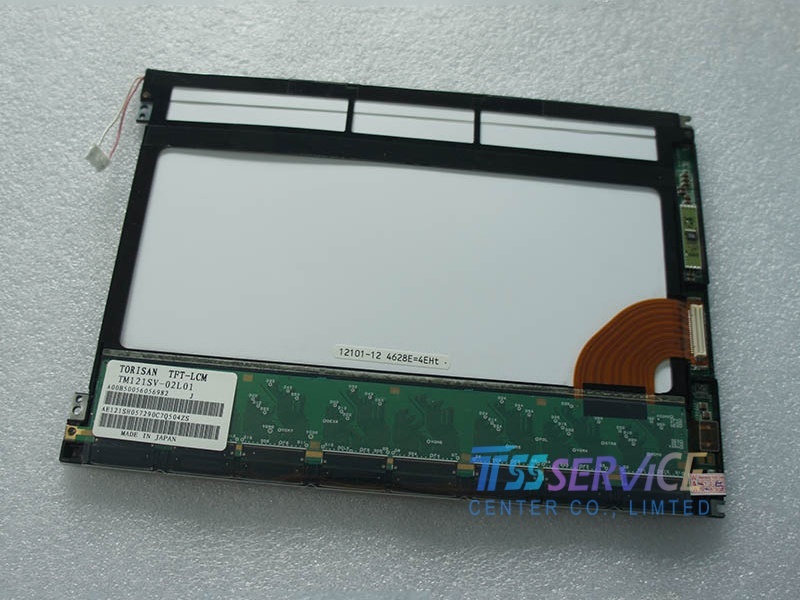

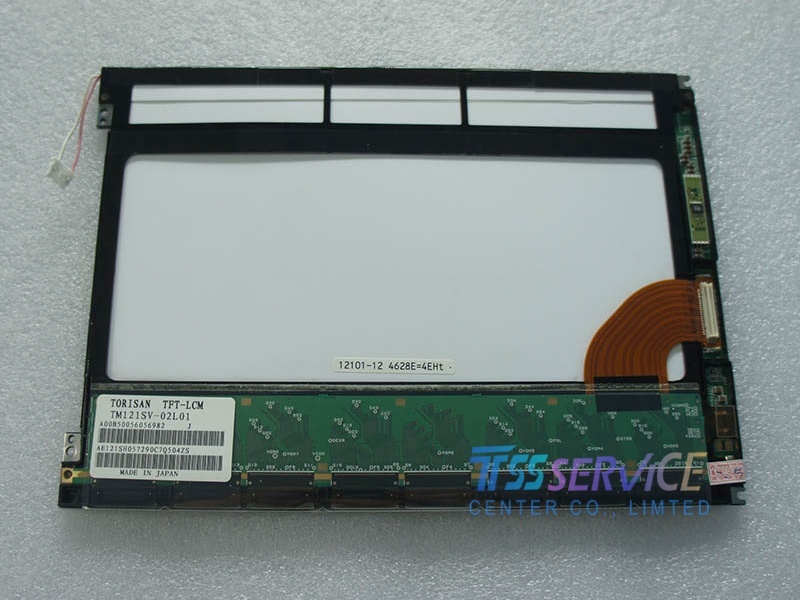

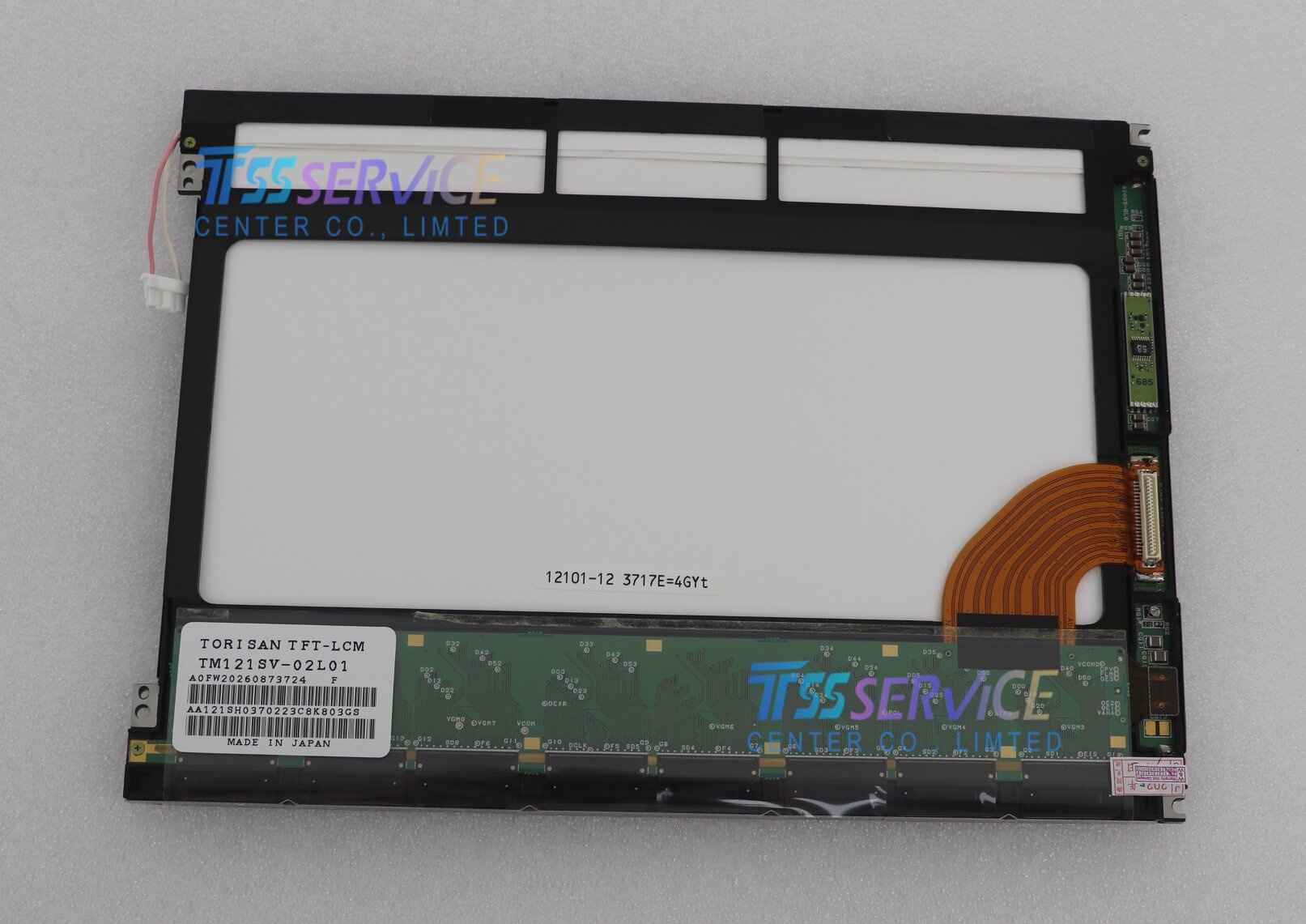

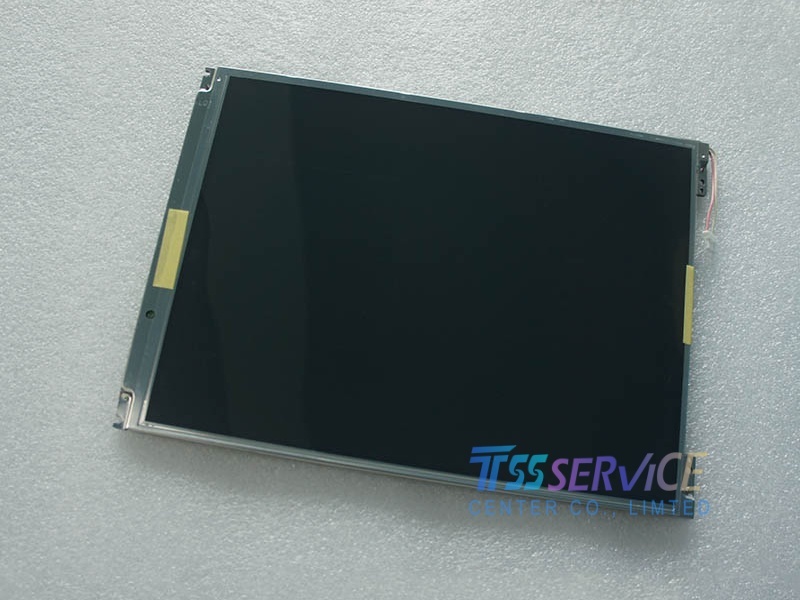

TM121SV-02L01A 12.1inch 800*600 Lcd Display Panel for TORISAN

Name: TM121SV-02L01A 12.1inch 800*600 Lcd Display Panel for TORISAN
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM121SV-02L01A
Price: 68 USD
Availability: InStock

SKU: TM121SV-02L01A

Model P/N:TM121SV-02L01A
Diagonal Size：12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 82PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$74.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TORISAN TM121SV-02L01A is a 12.1-inch a-Si TFT-LCD module designed for industrial applications requiring a cost-effective and reliable display solution. This model represents an older generation of LCD technology but remains relevant for specific legacy system integrations and replacement purposes.

Brand	TORISAN
Model P/N	TM121SV-02L01A
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	250.0(W)×188.5(H) mm
Outline Size	275(W)×199(H)×6.9(D) mm
Treatment	Antiglare
Luminance	100 cd/m² (Typ.)
Contrast Ratio	150 : 1 (Min.) (TM)
Viewing Angle	45/45/10/30 (Typ.)(CR≥10)
Response	30/20 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 42% NTSC
Backlight	1 pcs CCFL , 20K hours , No Driver
Refresh Rate	60Hz
Touchscreen	Without

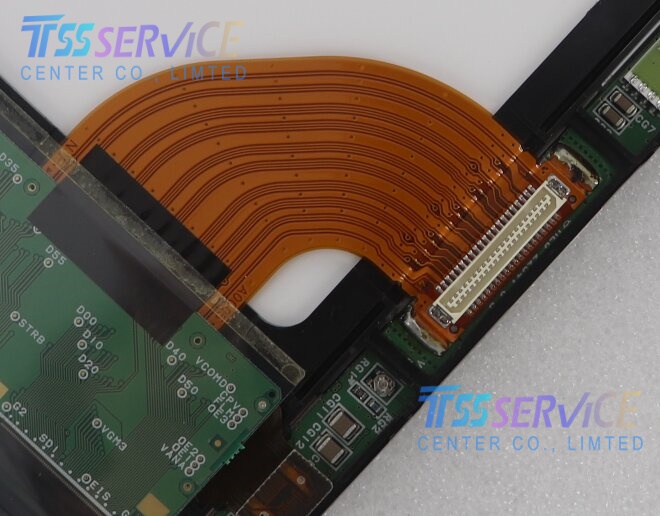

Signal Type	Parallel RGB (1 ch, 6-bit) , 41 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C ; Operating Temp.: 0 ~ 50 °C

Applications:
Due to its standard resolution and interface, this display is typically used in industrial control panels, legacy equipment upgrades, test instrumentation, and replacement/repair applications where specific interface requirements or form factor compatibility is needed.
