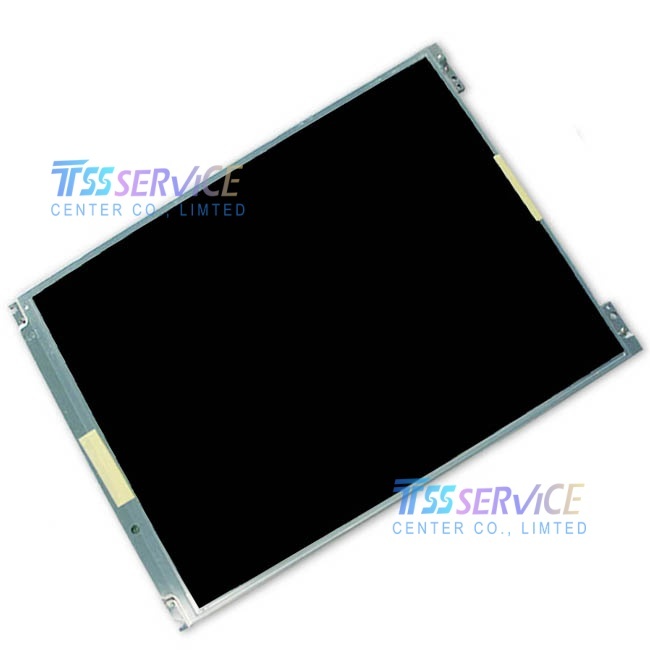

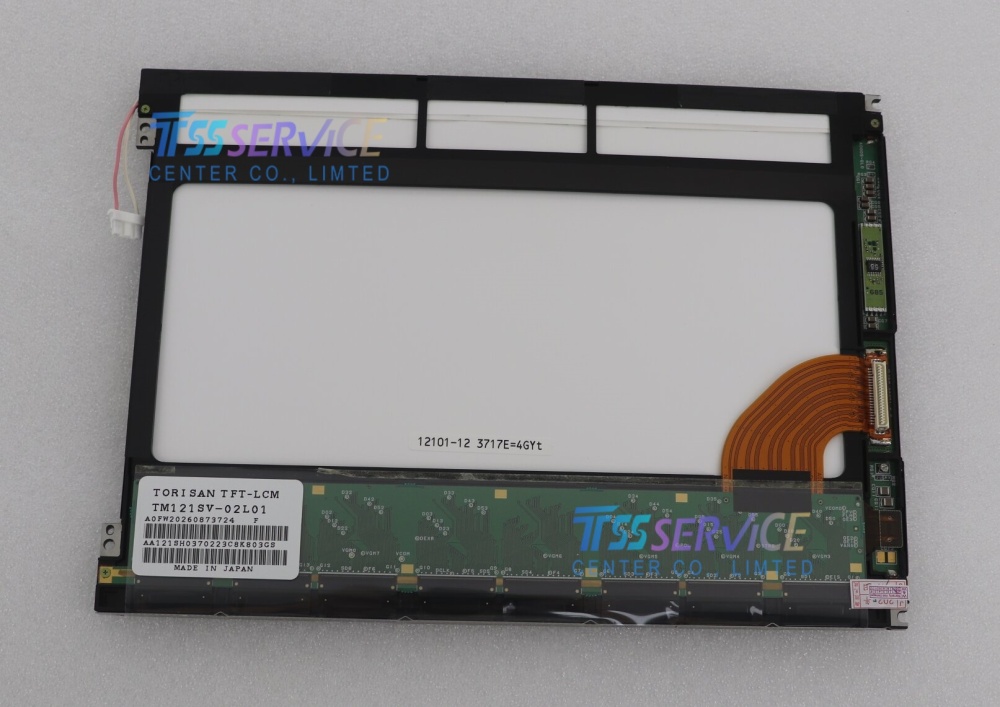

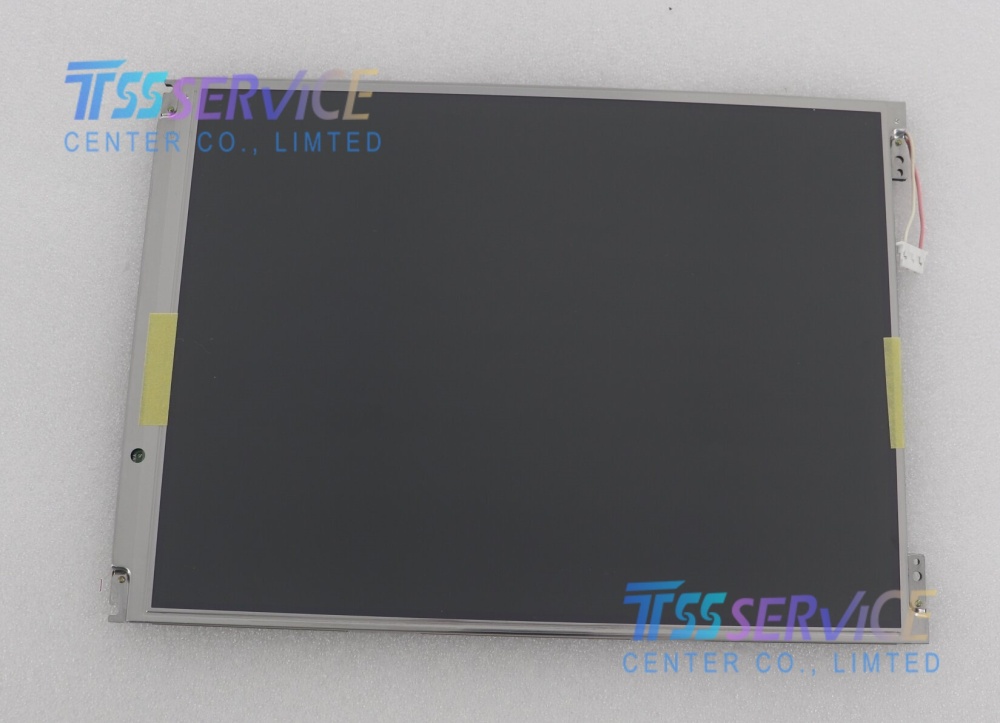

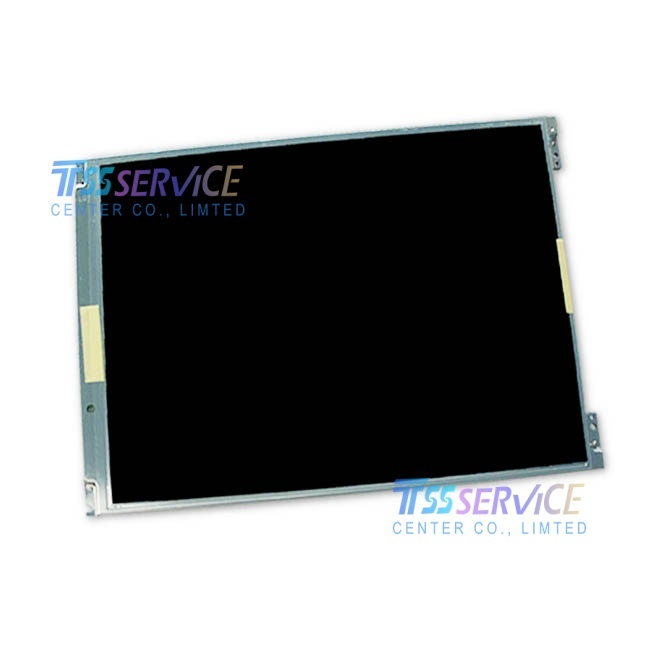

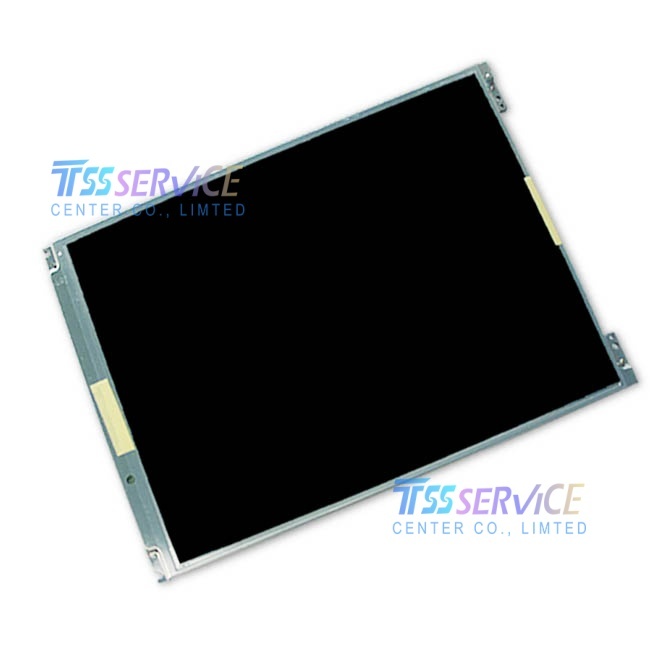

TM121SV-02L01N | Sanyo/Torisan 12.1” SVGA Industrial TFT-LCD (Non-Touch)
TM121SV-02L01N is a 12.1-inch SVGA industrial TFT-LCD panel by Sanyo (Torisan), featuring 800×600 resolution, 200 cd/m² brightness, and single CCFL backlight. It uses a TN normally white transmissive structure with parallel TTL RGB 6-bit interface, optimized for general industrial HMI, factory automation, and low-brightness indoor display replacement with stable performance and long-term availability.
| Parameter Item |
Specification Details |
| Part Number |
TM121SV-02L01N |
| Manufacturer |
Sanyo / Torisan |
| Diagonal Size |
12.1 inch, 4:3 aspect ratio |
| Native Resolution |
800×600 (SVGA), RGB vertical stripe |
| Display Technology |
a-Si TN TFT-LCD, normally white, transmissive |
| Active Display Area |
246 mm (W) × 184.5 mm (H) |
| Typical Brightness |
200 cd/m² |
| Contrast Ratio |
300:1 (Typ.) |
| Viewing Angle (CR≥10) |
50°/50°/30°/40° (L/R/U/D) |
| Display Colors |
262K colors (6-bit) |
| Backlight Source |
1× CCFL (cold cathode fluorescent lamp) |
| Backlight Lifespan |
≥50,000 hours (25°C) |
| Signal Interface |
Parallel TTL RGB (6-bit, 1 channel, 41 pins) |
| Touchscreen |
Without touch (external overlay optional) |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
–20°C ~ +80°C |
| Surface Treatment |
Antiglare (Haze 13%), 3H hard coating |
| Refresh Rate |
60Hz |
| Supply Voltage |
3.3V (logic) / 5V (backlight driver) |
| Dimensions (W×H×D) |
275 × 199 × 7 mm |
| Weight |
Approx. 1.2 kg |
| Certification |
RoHS compliant
|
