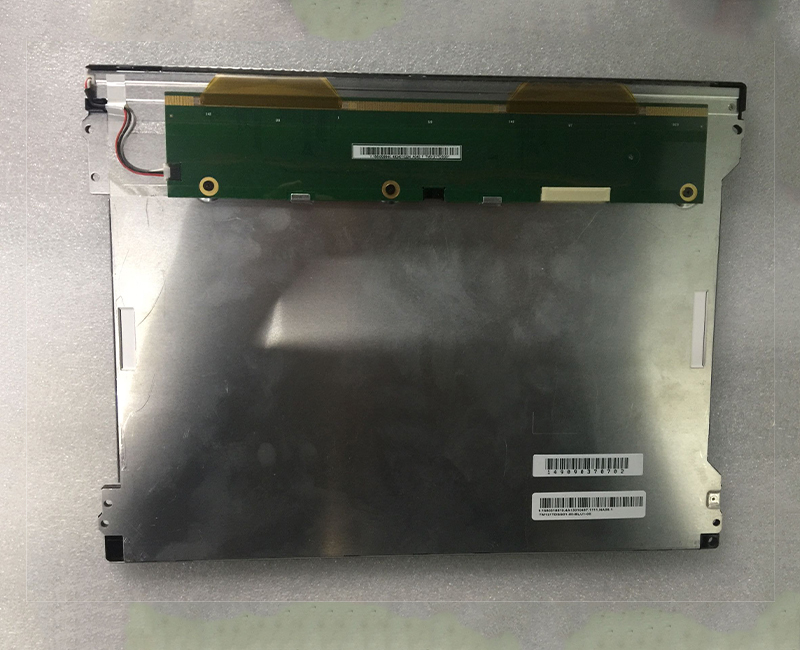

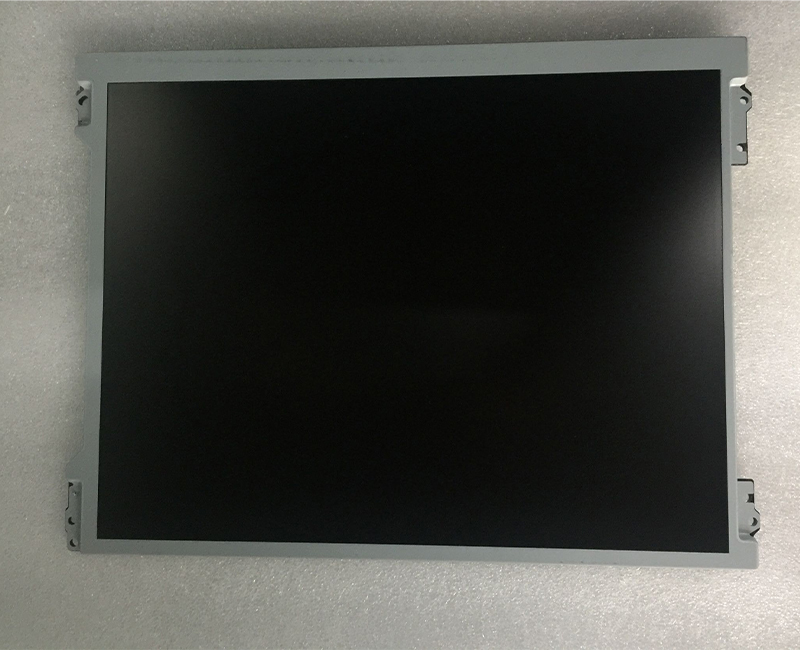

TM121TDSG01 12.1-inch 1024×768 TFT-LCD PANEL for TIANMA

Name: TM121TDSG01 12.1-inch 1024×768 TFT-LCD PANEL for TIANMA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM121TDSG01 TM121TDSG01-00
Price: 108 USD
Availability: InStock

SKU: TM121TDSG01 TM121TDSG01-00

1，Condition: New，Grade A

2，Description: TM121TDSG01 12.1 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$110.00~~ $108.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TM121TDSG01 is a 12.1-inch a-Si TFT-LCD module manufactured by TIANMA. It features a resolution of 1024×768 (XGA) with a pixel density of 105 PPI, delivering clear and stable image quality. The display adopts a TN (Twisted Nematic) mode with normally white and transmissive design, offering a typical brightness of 450 cd/m² and a contrast ratio of 700:1, ensuring good readability even in well-lit environments.

Brand	TIANMA	Model P/N	TM121TDSG01
Diagonal Size	12.1"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI	Pixel Format	RGB Vertical Stripe
Active Area	245.76(W)×184.32(H) mm	Bezel Opening	250.8(W)×189.4(H) mm
Outline Size	279(W)×209(H)×9(D) mm	Surface	Antiglare
Brightness	450 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.) (TM)
Viewing Angle	80/80/70/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock	Response Time	35 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 55% NTSC	Lamp Type	9S2P WLED, 50K hours, Without Driver
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

Applications

Industrial Control Panels – HMI for factory automation and machinery.
Medical Equipment – Patient monitors, diagnostic displays.
Transportation – In-vehicle infotainment or navigation systems.
Outdoor Kiosks – ATMs, ticketing machines, public information displays.
Embedded Systems – Rugged single-board computer (SBC) projects requiring reliable LCD.

☛Delivery Details:

We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.

☛About us:

We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)

We are willing to provide the good service,professional technology and excellent products to you.

If you have any general questions and please contact us via julie@atssservice.com ,we will give you a exact reply within 24hours.
