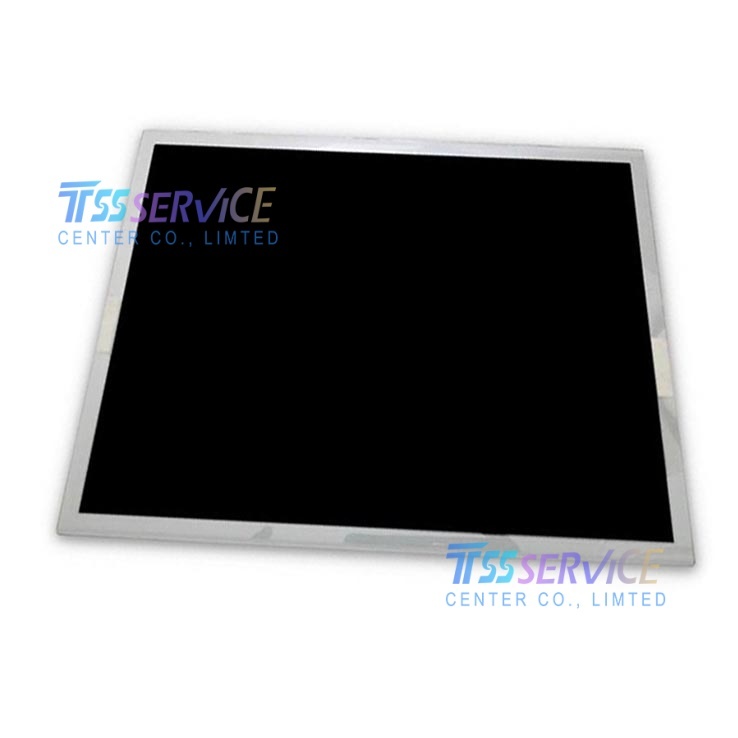

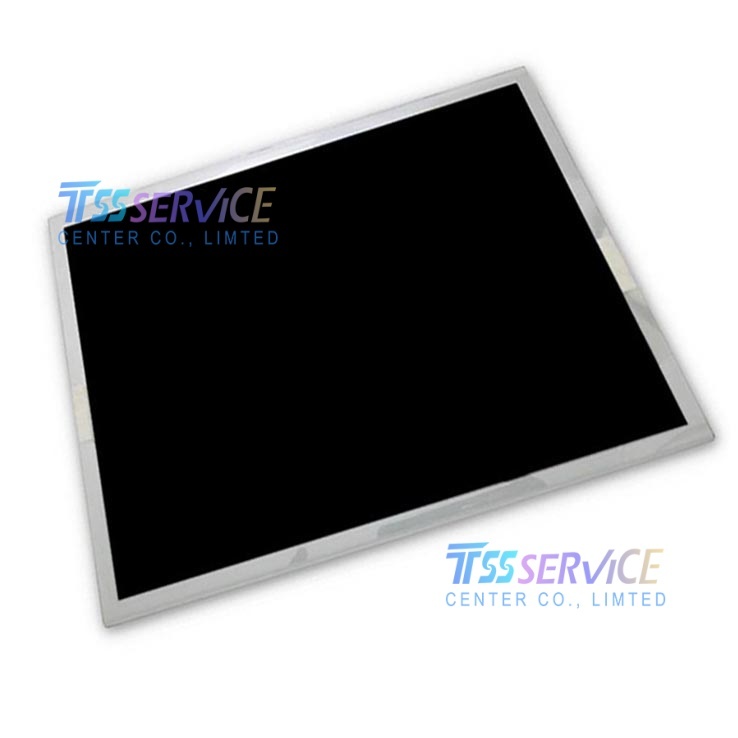

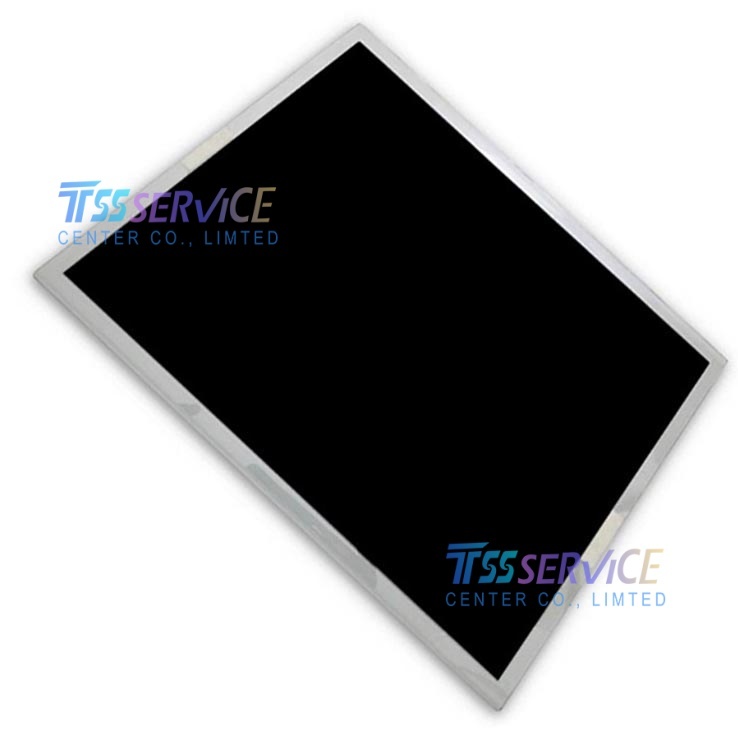

The TM150TDSG71 is a 15.0-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module manufactured by TIANMA. Designed for industrial and commercial applications, this panel delivers reliable performance with excellent image quality and wide operating temperature range.
| Parameter |
Description |
| Brand |
TIANMA |
| Model P/N |
TM150TDSG71 |
| Diagonal Size |
15.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1024(RGB)×768, XGA 85PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
304.128(W)×228.096(H) mm |
| Bezel Opening |
307.4(W)×231.3(H) mm |
| Outline Dim. |
326.5(H)×253.5(V)×12.1(D) mm |
| Treatment |
Antiglare |
| Luminance |
450 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
8 (Typ.)(Tr+Td) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K/16.2M 62% NTSC |
| Light Source |
WLED, 50K hours, With LED Driver |
| Weight |
1.00Kgs (Typ.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Applications
The TM150TDSG71 is ideal for a wide range of industrial applications, including:
-
Industrial control panels
-
Medical equipment displays
-
Human-machine interfaces (HMI)
-
Test and measurement instruments
-
Commercial kiosks and terminals
