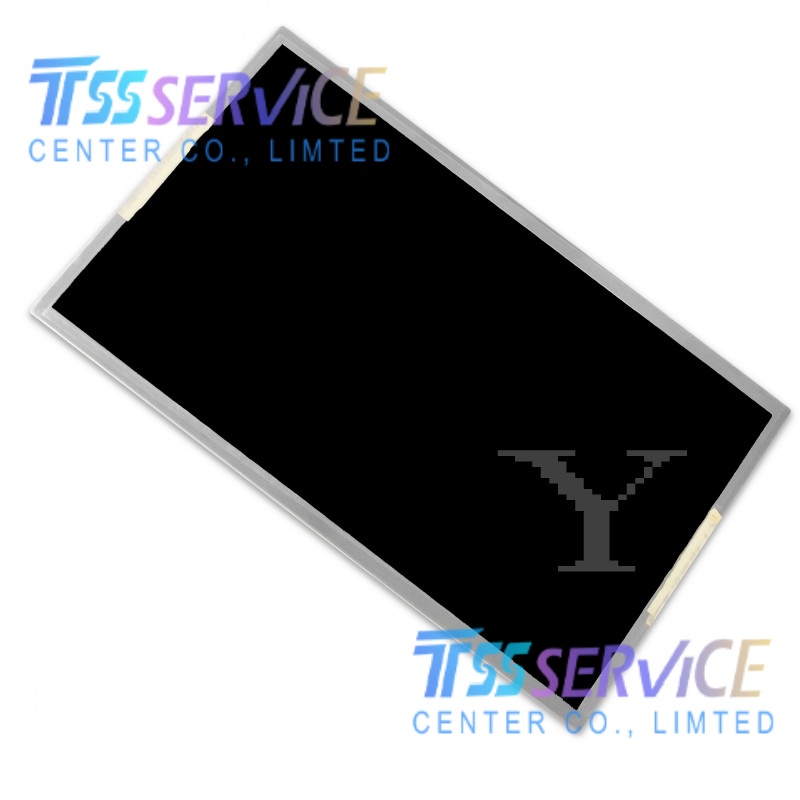

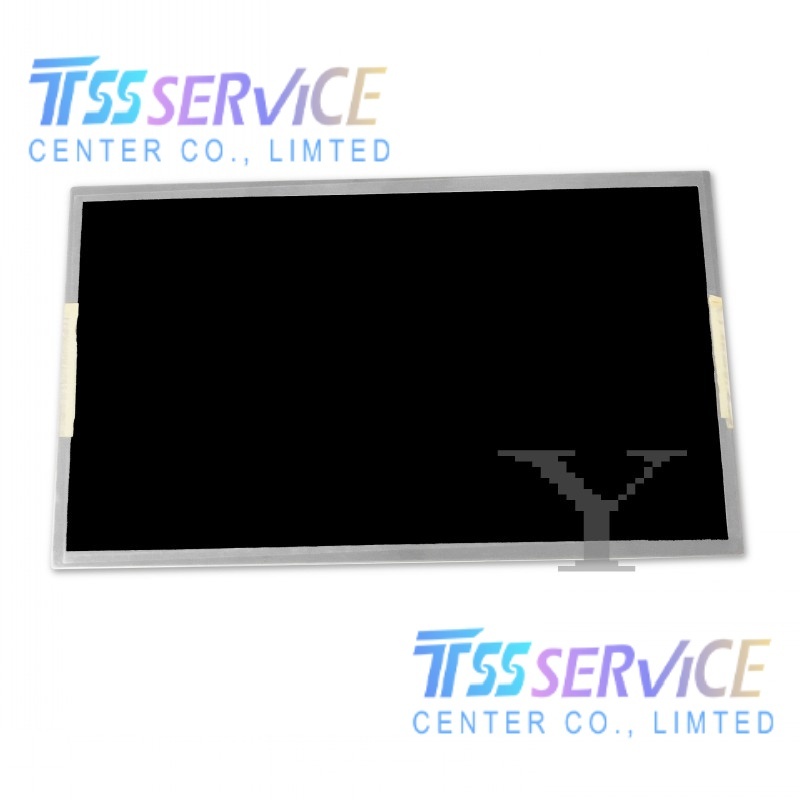

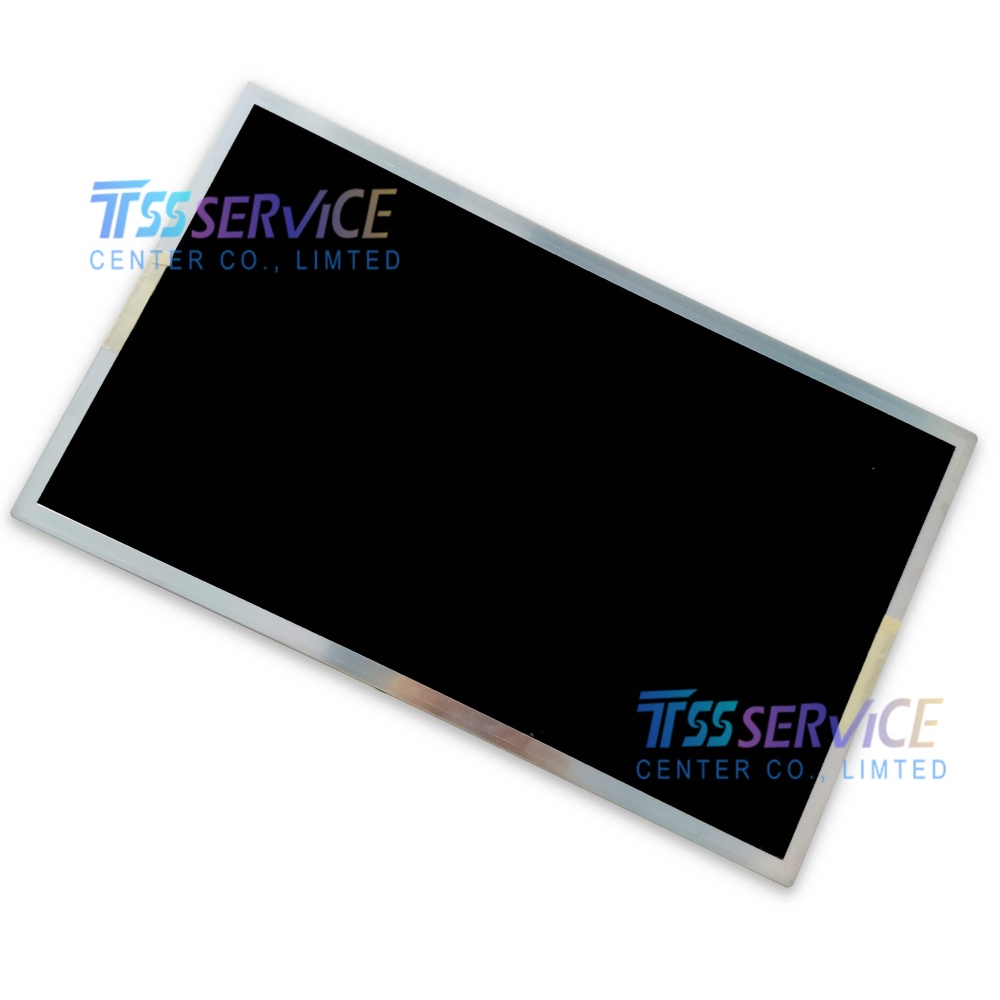

Tianma TM156JDSG70-00 15.6 inch LCD Display Screen For Industrial

Name: Tianma TM156JDSG70-00 15.6 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM156JDSG70-00
Price: 175 USD
Availability: InStock

SKU: TM156JDSG70-00

Model: TM156JDSG70-00
Size: 15.6 inch, 16:9 widescreen
Panel Type: a-Si TFT-LCD, LCM, IPS
Resolution: 1920×1080 (Full HD), 141 PPI

0.0 (0 Reviews)

0 Sold

~~$180.00~~ $175.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Tianma TM156JDSG70-00 15.6 inch LCD Display Screen For Industrial

Parameter	Specification
Brand	Tianma
Model	TM156JDSG70-00
Size	15.6 inch, 16:9 widescreen
Panel Type	a-Si TFT-LCD, LCM, IPS
Resolution	1920×1080 (Full HD), 141 PPI
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	88°/88°/88°/88° (U/D/L/R, CR≥10)
Display Colors	16.7M colors (8-bit)
Backlight	WLED, integrated driver, ≥50,000 hrs
Interface	LVDS (2-ch, 20 pins), 3.3V logic
Touch Screen	No touch
Active Area	344.16 × 193.59 mm
Overall Dimension	350.7 × 216.4 mm, thickness ~8.5 mm
Surface Treatment	Anti-glare (AG), 3H hard coating
Weight	~650 g
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Compliance	RoHS

Typical Applications

Industrial HMI & Control Panels
Factory automation, PLC workstations, CNC machinery, industrial PCs, cabinet displays.
Medical Equipment
Patient monitors, diagnostic devices, medical imaging (non-sterile area), lab analyzers.
Automotive & Transportation
Commercial vehicle dashboards, in-vehicle infotainment, coach/train passenger displays.
Kiosk & POS
Self-service terminals, retail POS, vending machines, ticketing systems, information kiosks.
Smart Home & Appliances
Large smart refrigerators, industrial kitchen control panels, building automation displays.
