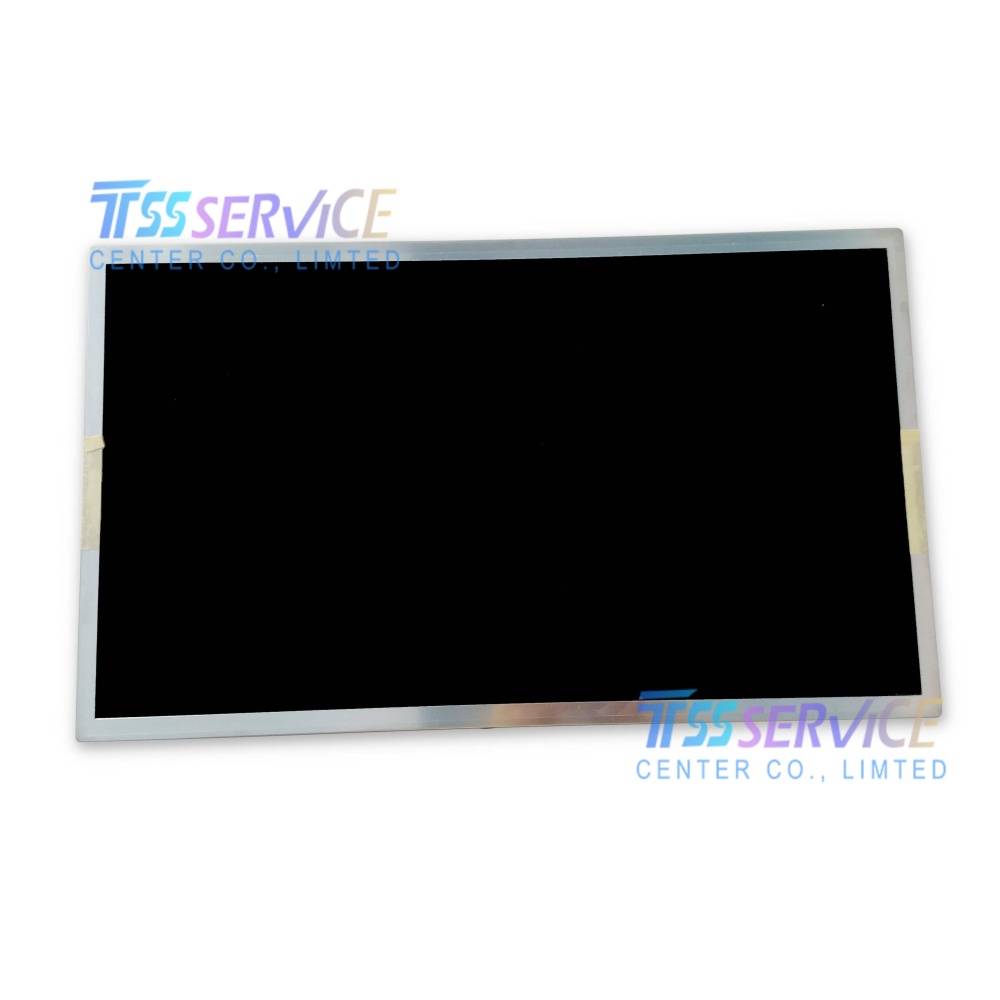

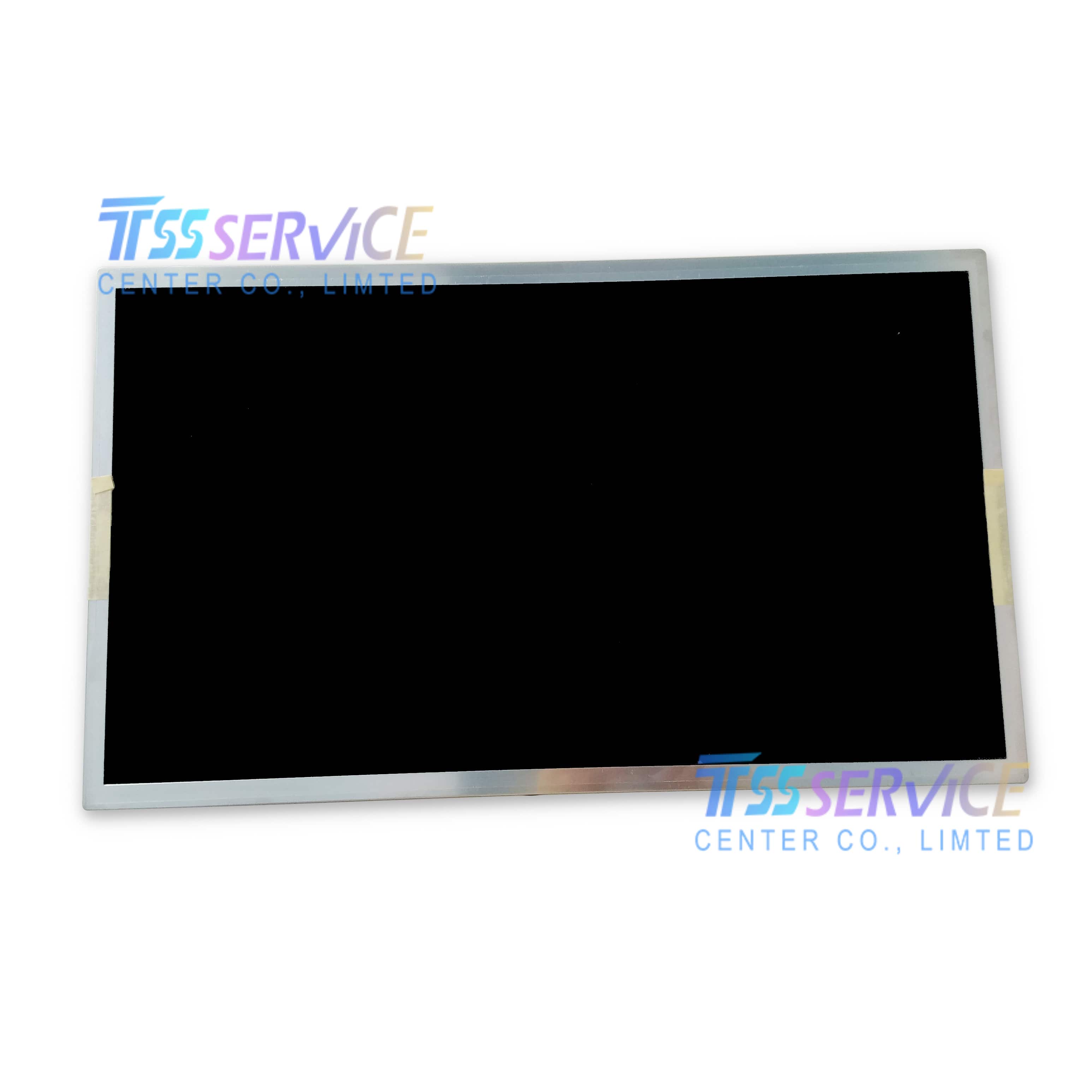

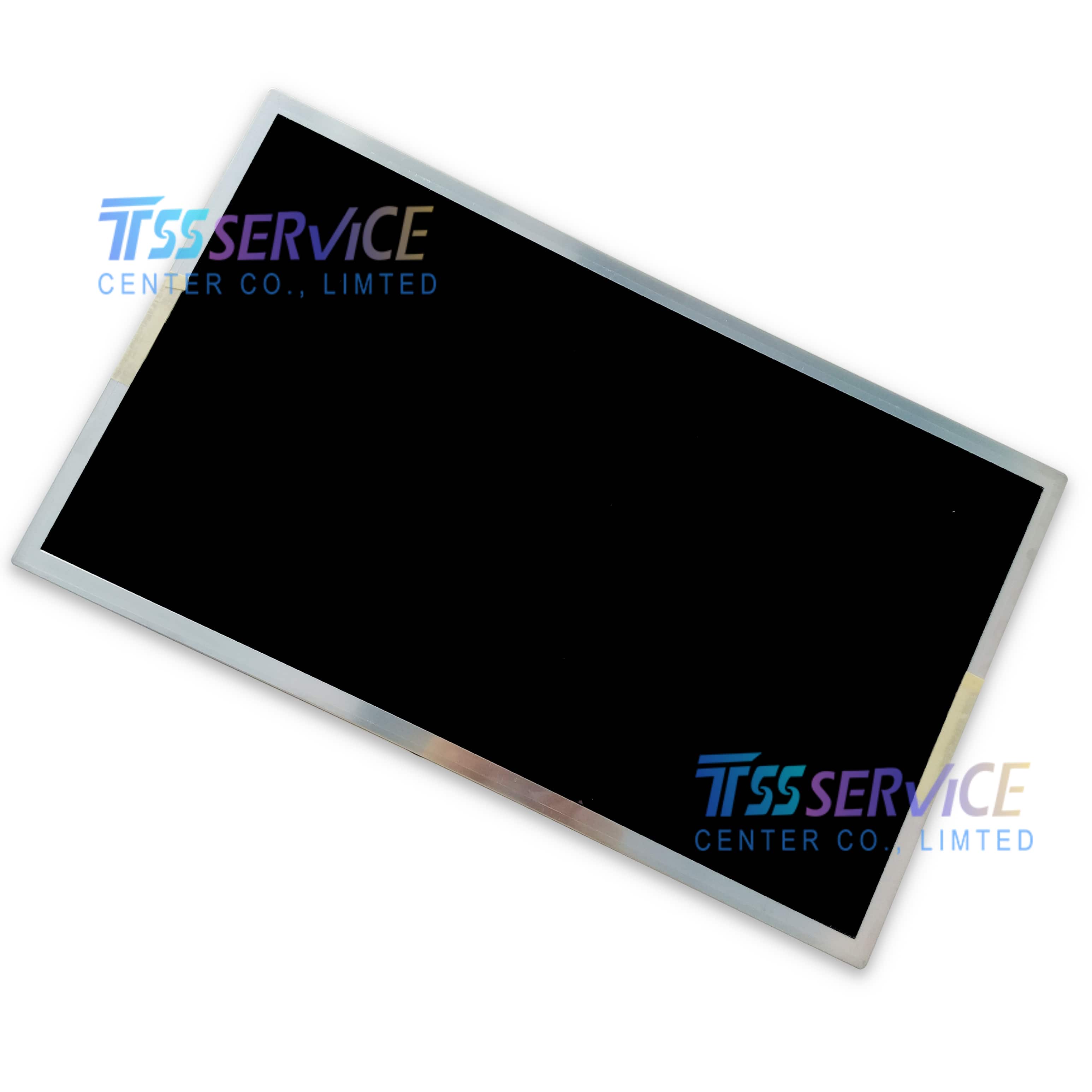

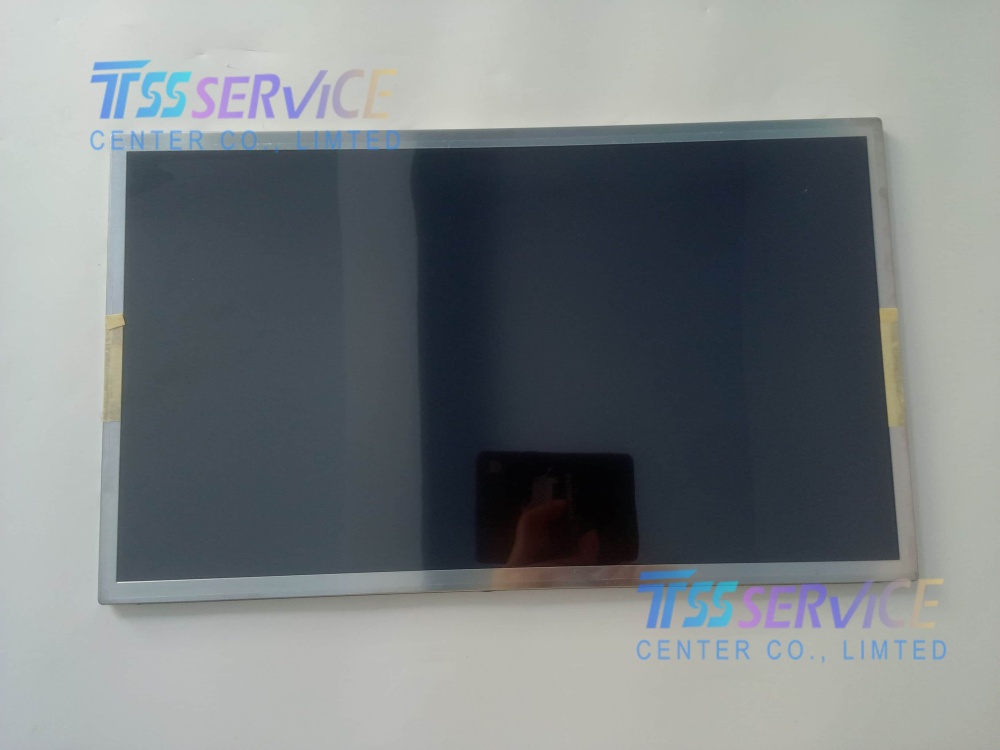

Tianma TM156VDSG17 15.6 inch 1920×1080 LCD Panel Display For Industrial
| Parameter |
Detail |
| Manufacturer |
Tianma (TIANMA MICRO-ELECTRONICS) |
| Model |
TM156VDSG17 |
| Panel Type |
a-Si TFT-LCD, SFT (Super Fine TFT), Normally Black, Transmissive |
| Diagonal Size |
15.6 Inches |
| Resolution |
1920 × 1080 (FHD, 16:9) |
| Active Area |
344.16 × 193.59 mm (W×H) |
| Outline Dimensions |
363.8 × 215.9 × 6.3 mm (W×H×D) |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Viewing Angle |
88/88/88/88 (Typ.) (L/R/U/D, CR≥10) |
| Response Time |
25 ms (Typ.) (Tr+Td) |
| Color Depth |
16.7M Colors (8-bit) |
| Color Gamut |
72% NTSC (CIE1931) |
| Backlight |
WLED, Side Entry, 50K Hours (Min.), with LED Driver |
| Interface |
LVDS |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-20°C ~ 70°C |
| Surface Treatment |
Anti-glare (Matte) |
| Vibration Resistance |
1.2G |
| Application Focus |
Industrial, Automotive, Avionics |
This industrial-grade, wide-temperature, wide-viewing-angle LCD module is ideal for high-reliability embedded systems requiring stable performance in harsh environments.
Key Application Scenarios:
- Automotive & Transportation:
- In-vehicle Infotainment (IVI) systems
- Rear-seat entertainment (RSE) displays
- Central control displays & car navigation systems
- Aerospace & Aviation:
- Aircraft in-flight entertainment (IFE) seatback screens
- Avionics control panels & airborne monitoring equipment
- Industrial Control & Automation:
- Factory HMI (Human-Machine Interface) panels
- Industrial PCs & process control monitors
- Test & measurement instruments
- Medical & Healthcare:
- Bedside patient monitors
- Portable medical diagnostic equipment
- Telecom & Networking:
- Base station monitoring consoles
- Rugged network equipment displays
