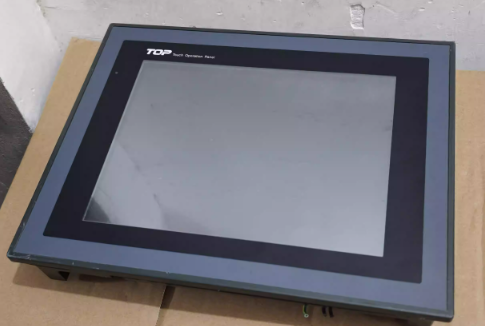

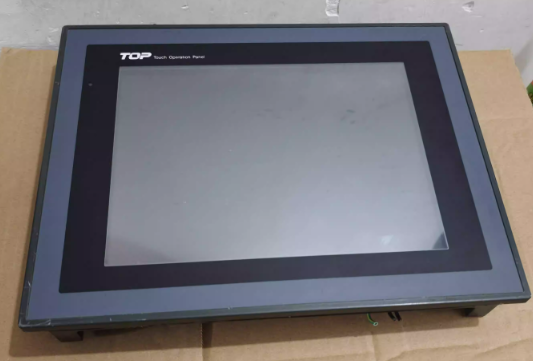

1. Display Specifications
| Parameter | Specification Option 1 | Specification Option 2 | Notes |
|---|---|---|---|
| Display Type | 10.4" TFT LCD (Color) | 10.4" TFT LCD (Color) | -1-9 |
| Resolution | 640 × 480 pixels (VGA) | 800 × 600 pixels (SVGA) | Multiple sources list both resolutions; likely different models within the series -1-6-9. |
| Display Colors | 256 colors | 256 colors | -1-2-6 |
| Brightness | 200 cd/m² | 230 cd/m² | Varies between sources -6-9. |
| Backlight | CCFL (likely) | CCFL (likely) | Not specified in search results, but typical for era. |
| Touch Screen Type | Analog Resistive | Matrix | The TOP6TA is listed with both "精密电阻触摸" (precision resistive) and "矩阵触摸" (matrix touch) -2-3-9. |
2. Processor & Memory
| Parameter | Specification | Notes |
|---|---|---|
| CPU | 32-bit RISC Processor | Provides high-speed graphics processing -1-2-6. |
| Flash Memory (Application) | 4MB or 6MB | Varies by specific sub-model -1-2-6. |
| Internal Memory | 4096 Word | Likely for recipe/data -6. |
| Battery-Backed SRAM | 256kB (on some models) | For data retention during power loss -6. |
3. Communication Interfaces
| Interface | Type | Notes |
|---|---|---|
| Serial Ports | RS-232C (2 ports, up to 115,200 bps) / RS-422 (up to 115,200 bps) / RS-485 | -1-2-6. |
| Expansion Slot | CF Card (CompactFlash) | For data backup, recipe storage, and logging -1-6. |
| Printer Port | Built-in / Optional | Support for connecting a printer -2-6-9. |
| Fieldbus (Optional) | CC-Link | Mentioned as an optional communication type -6. |
4. Electrical Specifications
5. Physical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Dimensions (W × H × D) | 305 × 239 × 55 mm | Standard dimensions for the series -2-3-4. |
| Panel Cutout (W × H) | 295 × 229 mm or 294 × 228 mm | Slight variations between sources -2-9. |
| Weight | Not specified | |
| Cooling Method | Natural air circulation (fanless) | Not explicitly stated, but typical for this type of HMI. |
6. Environmental Specifications
7. Software & Programming
| Parameter | Specification | Notes |
|---|---|---|
| Programming Software | TOP Design (Editor Software) | M2I's proprietary configuration software -3. |
| Language Support | Multilingual (Chinese, Korean, Japanese, English, Windows Fonts) | Supports switching between multiple languages on the same unit -1-2-6. |
| Features | Recipe Management, Data Logging, Alarm Handling, Trend Graphs | Built-in functionality for industrial control -1-2-6. |
