TP-3044S2
Short English Description

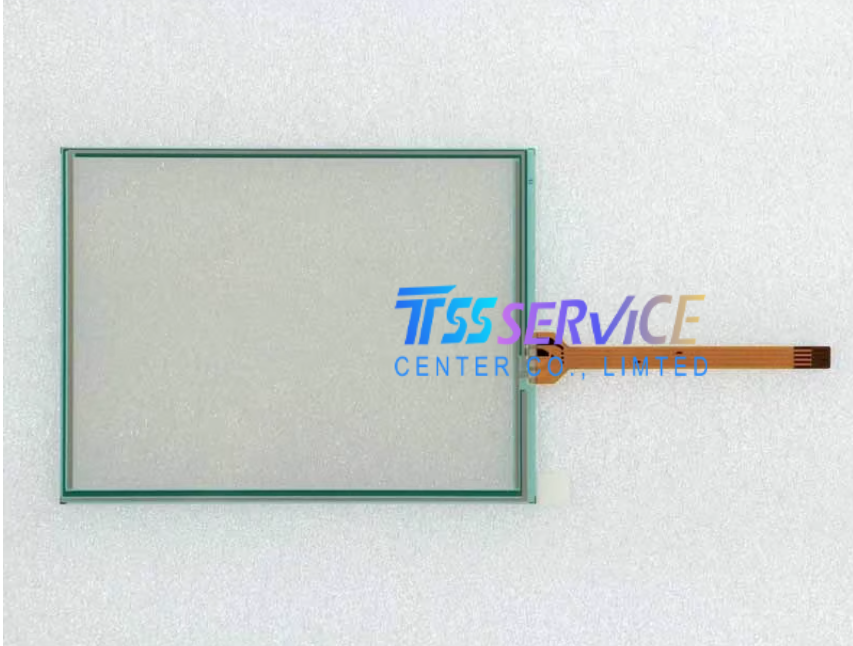

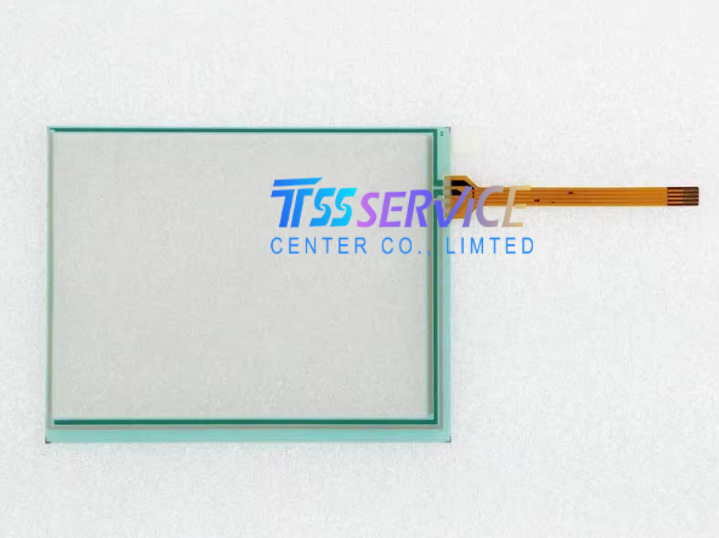

TP-3044S2 is an 8.6-inch 4-wire resistive touch panel, designed as a direct replacement for Pro-face GP2400 series HMIs. It features high linearity, 3H hard coating, ≥78% light transmittance, and excellent durability, supporting reliable operation in industrial environments.
| Parameter |
Details |
| Model |
TP-3044S2 |
| Compatible HMI |
Pro-face GP2400 series |
| Technology |
4-wire resistive touch |
| Diagonal Size |
8.6 inches |
| Aspect Ratio |
4:3 |
| Outline Dimensions (W×H) |
185 × 145 mm |
| Active Area (W×H) |
170 × 128 mm |
| Thickness |
1.8 mm (glass) |
| Surface Treatment |
Hard coating (3H hardness), anti-glare |
| Transmittance |
≥78% (typical 80%) |
| Linearity Error |
<1.5% |
| Response Speed |
<10 ms |
| Resolution |
1024 × 1024 points |
| Operating Force |
20–80 g |
| Lifespan |
≥1 million touches |
| Interface |
FPC (6-pin, 1.0 mm pitch) |
| Cable Length |
60 mm (left exit) |
| Operating Temperature |
−10°C ~ +60°C |
| Storage Temperature |
−20°C ~ +70°C |
| Humidity |
10%–90% RH (non-condensing) |
| Certifications |
RoHS compliant |
| Weight |
Approx. 80 g |
