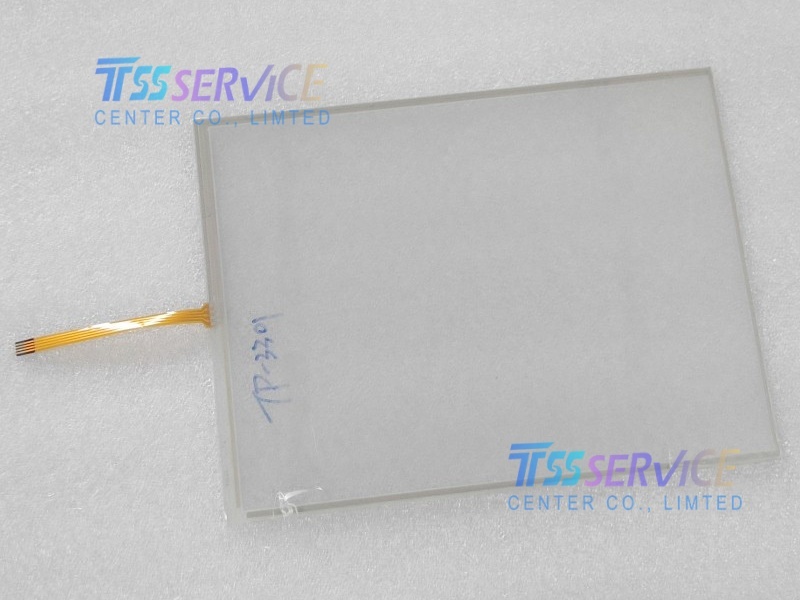

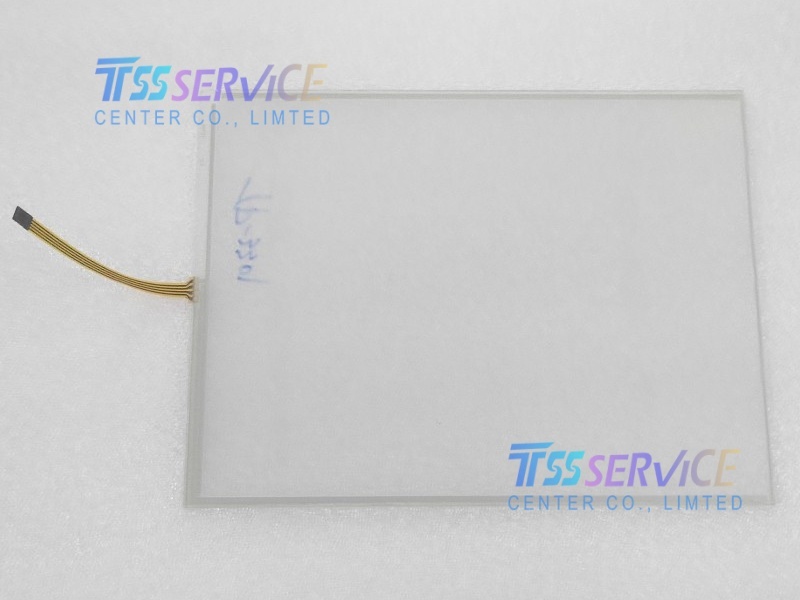

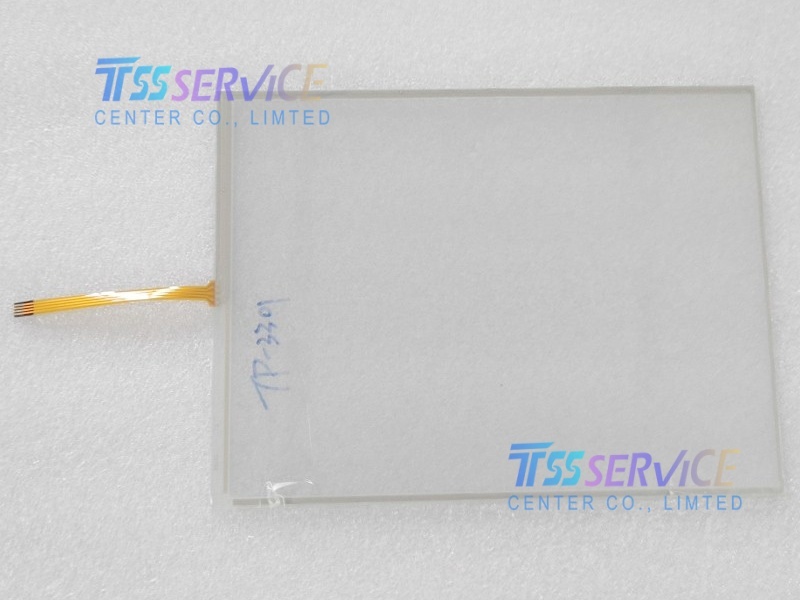

TP-3301S3
TP-3301S3 is a 5.7-inch 4-wire resistive touch panel, widely used as a replacement for Proface AGP3300/ST3301S series HMIs. It features high sensitivity, scratch-resistant surface, ≥75% light transmittance, and stable performance for industrial control environments.
| Parameter |
Details |
| Model |
TP-3301S3 |
| Compatible Model |
Proface AGP3300-S1-D24 / ST3301S |
| Technology |
4-wire resistive touch |
| Diagonal Size |
5.7 inches |
| Aspect Ratio |
4:3 |
| Outline Dimensions (W×H) |
122 × 92 mm |
| Active Area (W×H) |
119 × 90 mm |
| Thickness |
1.2 mm (glass) |
| Surface Treatment |
Hard coating (2H hardness), anti-glare |
| Transmittance |
≥75% (typical 78%) |
| Resolution |
1024 × 1024 points |
| Operating Force |
30–100 g |
| Lifespan |
≥5 million touches |
| Interface |
FPC (6-pin, 1.0 mm pitch) |
| Cable Length |
50 mm (right exit) |
| Operating Temperature |
−10°C ~ +55°C |
| Storage Temperature |
−20°C ~ +70°C |
| Humidity |
10%–90% RH (non-condensing) |
| Certifications |
RoHS compliant |
| Weight |
Approx. 45 g |
