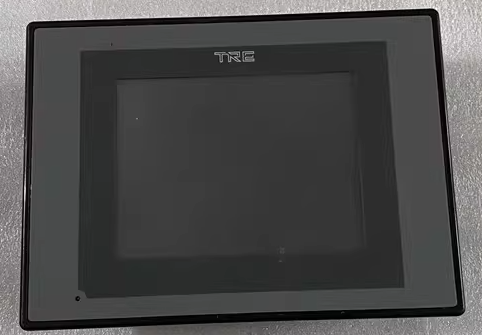

New Touch Screen TP106PT-24V
1. Display Specifications
Parameter Specification Notes
Display Type 5.6" TFT LCD (Thin Film Transistor) Color display
Display Colors 65,536 colors
Resolution 320 × 234 pixels
Display Area (Active) 115.2 × 86.4 mm
Backlight Type LED backlight
Backlight Lifetime 50,000+ hours Long-life LED design
Brightness Control Adjustable via analog potentiometer Rotational adjustment
Display Attributes Flash / Reverse display support
2. Touch Panel Specifications
Parameter Specification Notes
Touch Technology Digital precision resistive matrix 4-wire resistive typical
Touch Key Size 20 × 20 mm
Touch Key Array 16 × 12 keys
Touch Action Supports 1-point and 2-point touch
3. Memory & Storage
Parameter Specification Notes
Flash Memory 3 MB For user application storage
SRAM 512 KB For data retention
4. Communication Interfaces
Interface Type Notes
COM1 RS-232C / RS-422 / RS-485 Configurable serial port
COM2 RS-232C
Programming Software Tp-Designer Supports TP100/TP200/TP300 series; provides unified device management, variable management, and multi-language support
5. Electrical Specifications
Parameter Specification Notes
Input Voltage DC 24V ± 15% Native 24V support eliminates need for external converters
Power Consumption 8W
Allowable Momentary Power Failure Less than 20ms
Dielectric Withstand Voltage AC1000V-10mA, 1 minute
Insulation Resistance Approx. 20MΩ @ DC500V
6. Physical Specifications
Parameter Specification Notes
Dimensions (W × H × D) 202 × 148 × 61 mm
Enclosure Material Metal housing Enhanced durability and EMC/EMI protection
Grounding Ground resistance less than 100Ω
7. Environmental Specifications
Parameter Specification Notes
Front Panel Protection IP65F Dust-tight and protected against water jets
Operating Temperature 0°C to +50°C
Storage Temperature -10°C to +60°C
Operating Humidity 10% to 90% RH (non-condensing)
Vibration Resistance 10-25Hz, 2G for 30 minutes in X, Y, Z directions
Noise Immunity DC1000Vp-p, pulse width 1μs, hold 1ns
Ambient Air No corrosive gases
EMC Protection Metal housing with EMC-compatible design Resists interference from welding machines, motors, and frequency converters
8. Text & Language Support
Parameter Specification Notes
Languages Supported Chinese, English
Character Sets Dot matrix basic fonts, vector fonts Windows fonts selectable, size adjustable
9. Key Features & Benefits
Feature Benefit
Native DC 24V Operation Direct connection to standard industrial control systems; no external power converters required
Dual Communication Ports COM1 supports RS232/422/485; COM2 supports RS232 for flexible device connectivity
65K Color TFT Display Clear, vibrant visualization for process data and graphics
LED Backlight (50,000+ hrs) Long service life with minimal maintenance
Adjustable Brightness Optimal viewing in various lighting conditions via analog potentiometer
IP65F Front Panel Withstands dust, water spray, oil, and harsh industrial environments
Precision Resistive Touch Reliable operation with gloved hands; 16×12 touch key matrix
Metal Housing with EMC Protection Excellent noise immunity in electrically noisy environments (welding, motors)
3MB Flash + 512KB SRAM Adequate storage for applications and data retention
Tp-Designer Software Consistent programming environment across TP series; supports project migration without recreation
