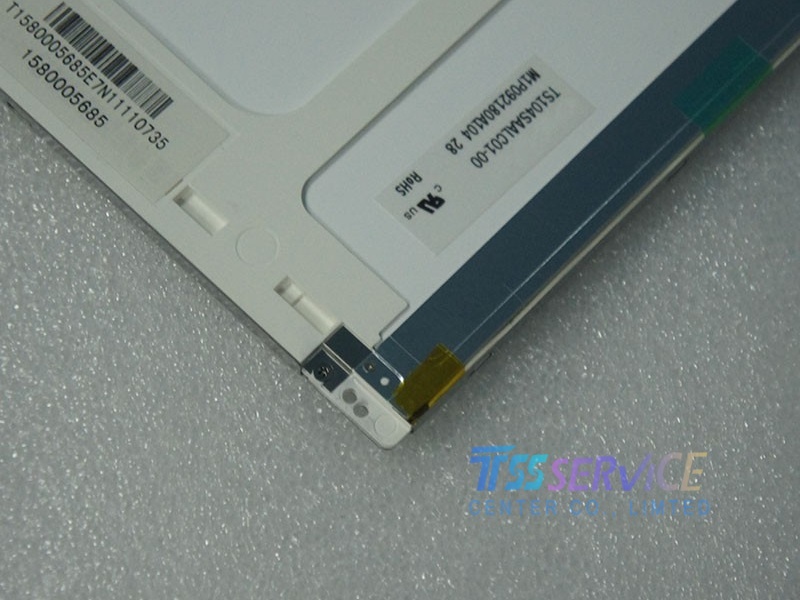

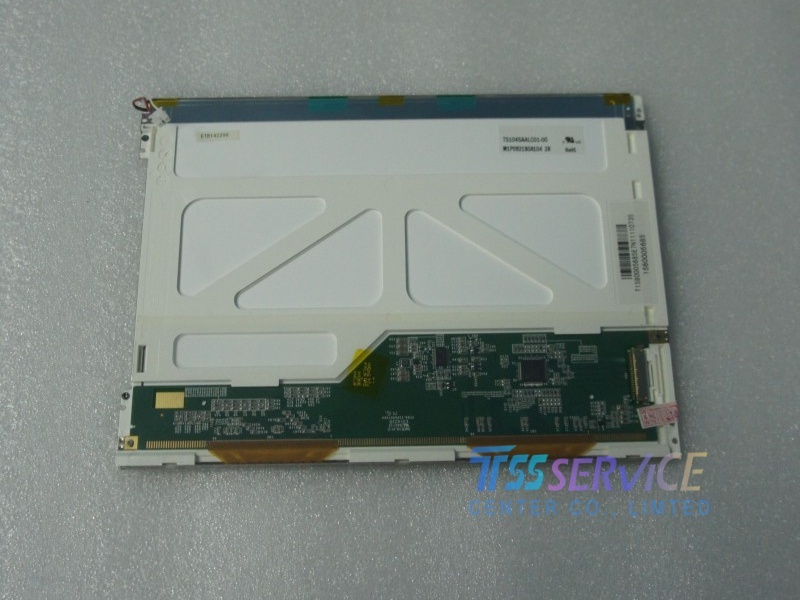

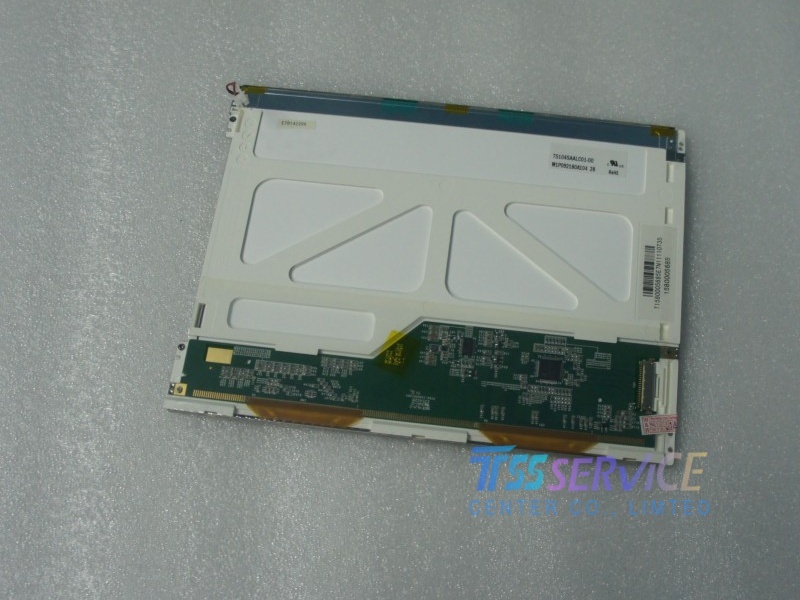

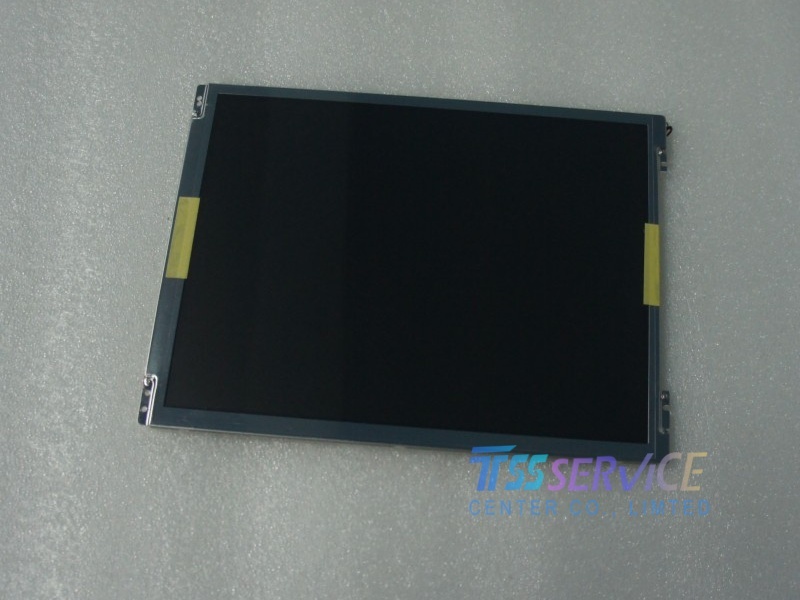

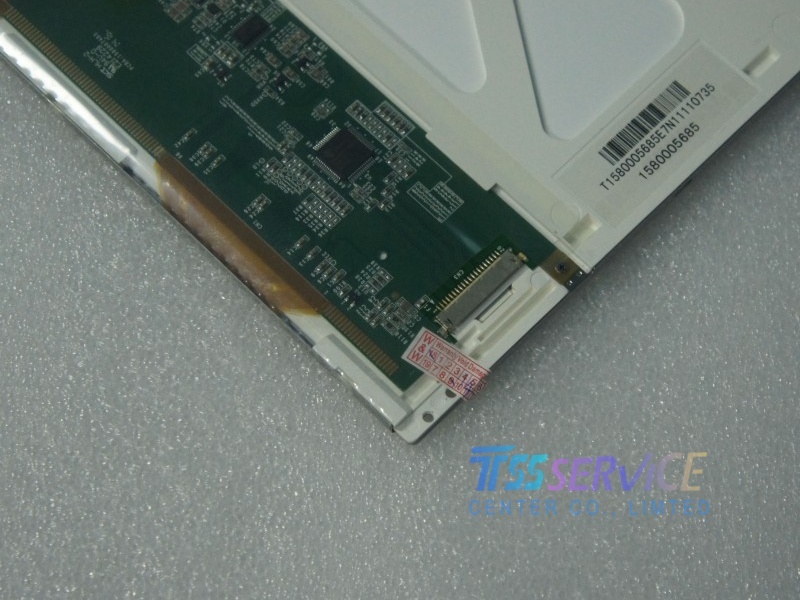

The TIANMA TS104SAALC01-00 is a high-performance 10.4-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module designed for industrial and multimedia applications. Engineered for reliability and clarity, this display features an SVGA resolution of 800 x 600 pixels with a 96 PPI density, utilizing RGB Vertical Stripe arrangement for precise color reproduction.
| Parameter |
Description |
| Brand |
TIANMA |
| Model P/N |
TS104SAALC01-00 |
| Diagonal Size |
10.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA 96PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Bezel Opening |
215.0(W)×162.0(H) mm |
| Outline Dim. |
236(H)×176.9(V)×5.9(D) mm |
| Treatment |
Antiglare, Hard coating (3H) |
| Luminance |
230 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
10 (Typ.)(TTr+Td) |
| Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K 50% NTSC |
| Light Source |
CCFL [1 pcs], W/O Driver |
| Weight |
288g (Typ.) |
| Touch Panel |
Without |
| Frame Rate |
60Hz |
| Interface Type |
LVDS (1 ch, 6-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Key Applications
This display model is specifically designed and recommended for industrial applications . Typical uses include:
-
Industrial PCs and Human-Machine Interface (HMI) terminals
-
Medical monitoring equipment
-
Point-of-Sale (POS) systems
-
Industrial control and automation systems
-
Communication and financial terminal equipment
-
Digital signage and advertising displays
