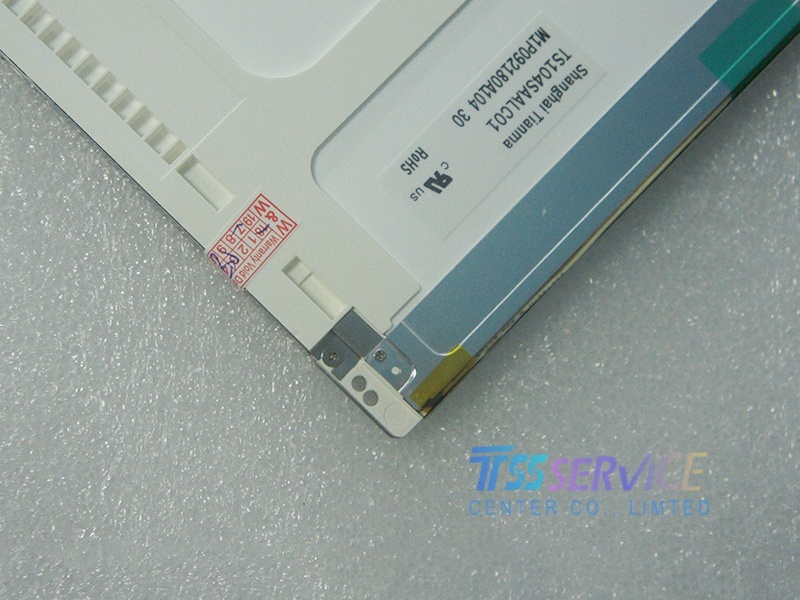

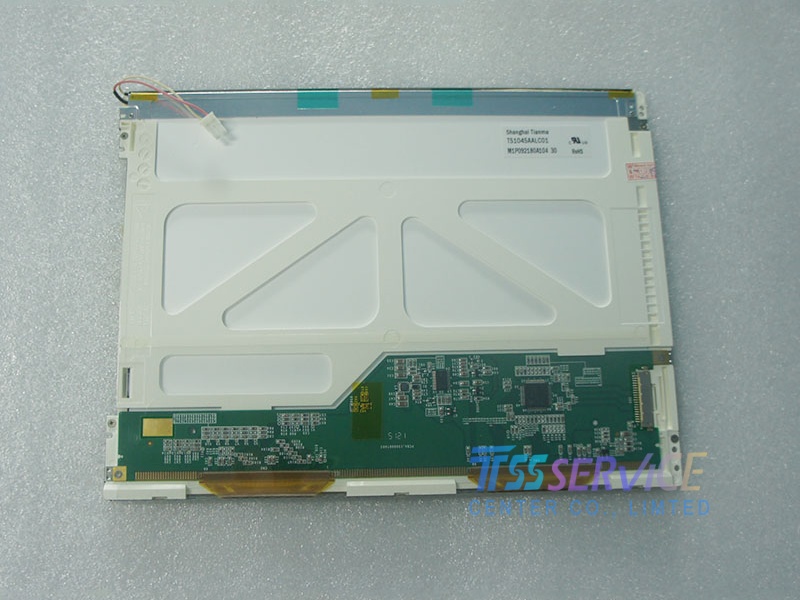

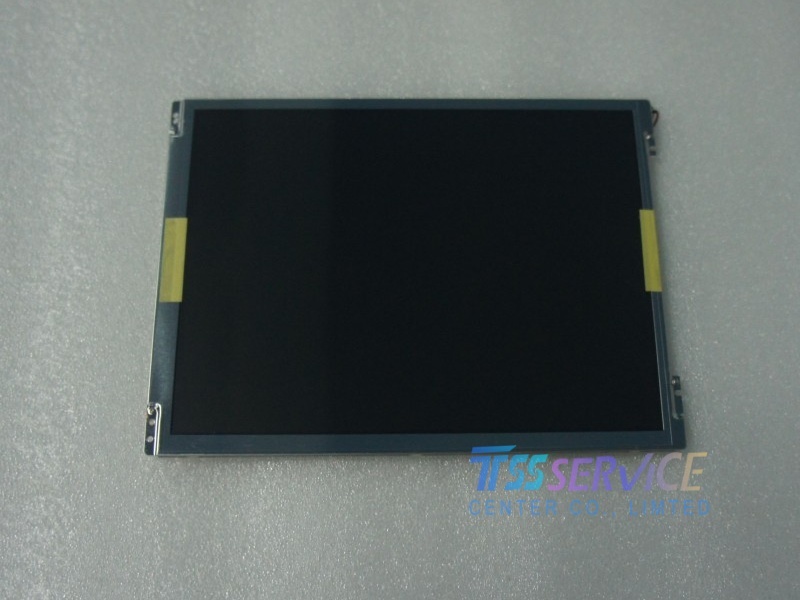

10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30

SKU: TS104SAALC01-30

1,Condition: New,Grade A

2,Description: TS104SAALC01-30 10.4 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$72.00 $70.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
1/1
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • 10.4" TIANMA SVGA Industrial LCD Display TS104SAALC01-30
  • Description
The TS104SAALC01-30 is a 10.4-inch a-Si TFT-LCD module engineered by Tianma for rugged industrial environments. This model maintains the trusted 4:3 aspect ratio and SVGA resolution (800 × 600 pixels) , delivering clear and stable imagery for professional Human-Machine Interface (HMI) applications.

Parameter Description
Brand TIANMA
Model P/N TS104SAALC01-30
Diagonal Size 10.4"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 96PPI
Pixel Format RGB Vertical Stripe
Active Area 211.2(W)×158.4(H) mm
Bezel Opening 215.0(W)×162.0(H) mm
Outline Dim. 236(H)×176.9(V)×5.9(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 230 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 10 (Typ.)(TTr+Td)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K 50% NTSC
Light Source CCFL [1 pcs], W/O Driver
Weight 288g (Typ.)
Touch Panel Without
Frame Rate 60Hz

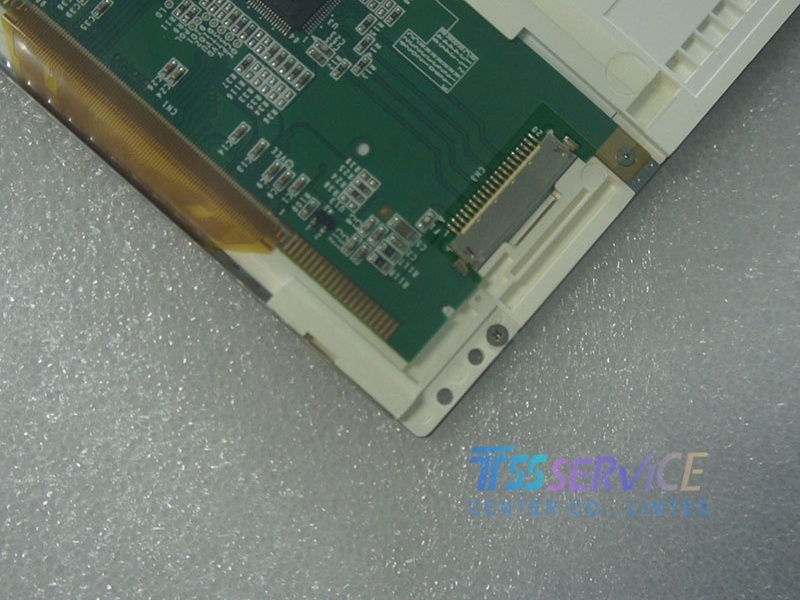

Interface Type LVDS (1 ch, 6-bit), 20 pins Connector
Power Supply 3.3V (Typ.)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C

Typical Applications:

  • Industrial Automation Control Panels

  • Medical Monitoring Devices

  • POS (Point of Sale) Terminals

  • Embedded Systems

  • Portable Instrumentation
