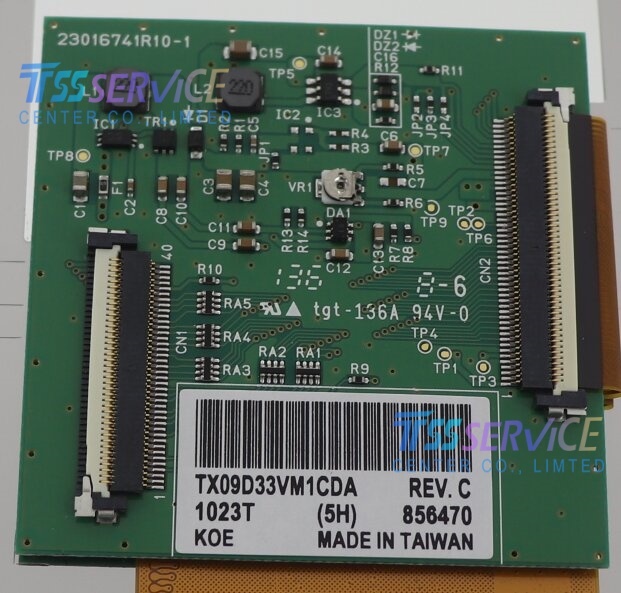

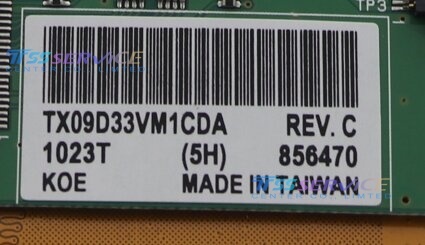

KOE /Hitachi 3.5 INCH TX09D33VM1CDA LCD Panel Display For Industrial

Name: KOE /Hitachi 3.5 INCH TX09D33VM1CDA LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX09D33VM1CDA
Price: 90 USD
Availability: InStock

SKU: TX09D33VM1CDA

Model: TX09D33VM1CDA
Diagonal Size: 3.5 inch
Display Type: a-Si TFT-LCD, LCM (Transmissive, Normally White, TN)
Resolution: 240 (RGB) × 320 pixels (QVGA, 113 PPI)

0.0 (0 Reviews)

0 Sold

~~$92.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KOE /Hitachi 3.5 INCH TX09D33VM1CDA LCD Panel Display For Industrial

Parameter	Specification (English)
Manufacturer	Hitachi
Model	TX09D33VM1CDA
Diagonal Size	3.5 inch
Display Type	a-Si TFT-LCD, LCM (Transmissive, Normally White, TN)
Resolution	240 (RGB) × 320 pixels (QVGA, 113 PPI)
Active Area	57.64 mm (W) × 75.52 mm (H)
Outline Dimension	64 mm (W) × 86 mm (H) × 7.6 mm (D)
Brightness	320 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.)
Viewing Angle	70°/70°/80°/60° (U/D/L/R, CR≥5)
Response Time	30 ms (Typ., Tr+Td)
Color Depth	262K colors (6-bit, 60% NTSC)
Backlight	WLED (6 pcs), with driver, 40,000 hrs lifespan
Interface	CMOS (1 channel, 6-bit), 40-pin FPC connector
Operating Temperature	-30°C ~ +80°C (Wide Industrial)
Storage Temperature	-30°C ~ +85°C
Touch Panel	Optional (4/5-wire Resistive)
Surface Treatment	Anti-Glare (AG), Hard Coating (3H)
Weight	~80 g
Production Status	Active (In production)

Applications

Industrial HMI & Control Panels: Factory automation terminals, PLC operator interfaces, and machinery control panels requiring compact size (3.5") and wide temperature (-30°C to +80°C).
Medical Devices: Portable diagnostic equipment, patient monitors, and medical instruments needing reliable performance and compact design.
Portable Industrial Devices: Field test equipment, handheld controllers, and portable barcode scanners benefiting from low power consumption and small form factor.
Smart Home & Appliances: Intelligent control panels, elevator displays, and home automation hubs with 320 cd/m² brightness for indoor use.
Automotive & Marine Displays: In-vehicle infotainment, rear-seat entertainment, and marine dashboard displays for commercial vehicles and boats.
