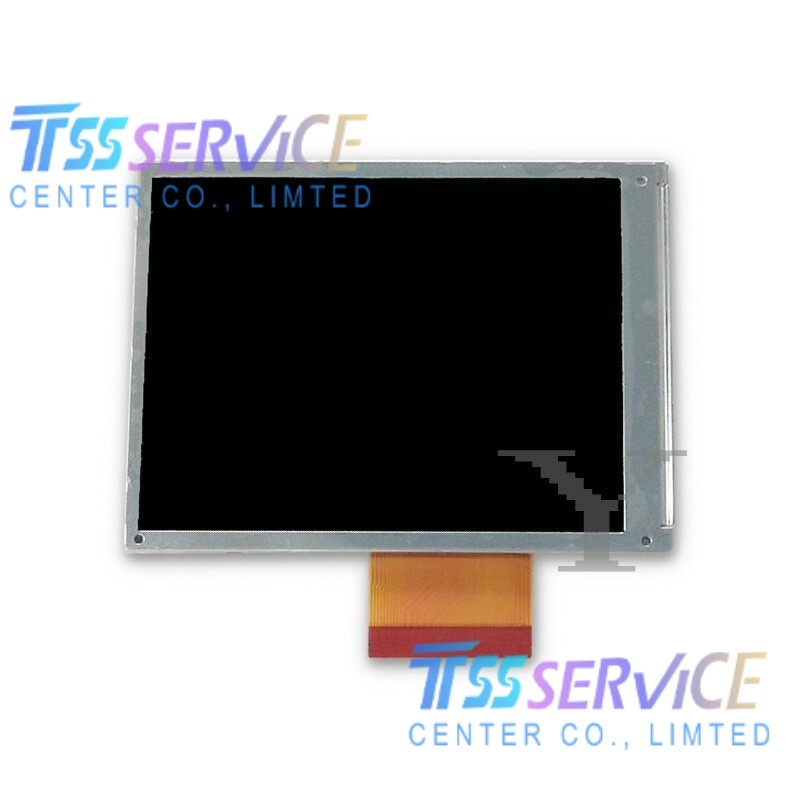

Hitachi TX09D34VM3CAA 3.5" 240x320 Industrial LCD Screen Module for HMI & Handheld Devices

Name: Hitachi TX09D34VM3CAA 3.5" 240x320 Industrial LCD Screen Module for HMI & Handheld Devices
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX09D34VM3CAA
Price: 110 USD
Availability: InStock

SKU: TX09D34VM3CAA

Model: TX09D34VM3CAA
Brand: Hitachi
Screen Size: 3.5 inch (Diagonal)
Display Type: a-Si TFT-LCD Module
Resolution: 240(RGB)×320, QVGA, 113 PPI

0.0 (0 Reviews)

0 Sold

~~$130.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Hitachi TX09D34VM3CAA 3.5" 240x320 Industrial LCD Screen Module for HMI & Handheld Devices

Item	Specification
Model	TX09D34VM3CAA
Brand	Hitachi
Screen Size	3.5 inch (Diagonal)
Display Type	a-Si TFT-LCD Module
Resolution	240(RGB)×320, QVGA, 113 PPI
Brightness	430 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.)
Viewing Angle	L/R/U/D: 50°/80°/80°/80°
Display Colors	262K Colors, 46% NTSC
Backlight	WLED, Lifespan: 40,000 Hours
Interface	CMOS 6-bit, 1 Channel, 50 Pins FPC
Operating Temperature	-30℃ ~ +80℃
Storage Temperature	-30℃ ~ +80℃
Compliance	RoHS

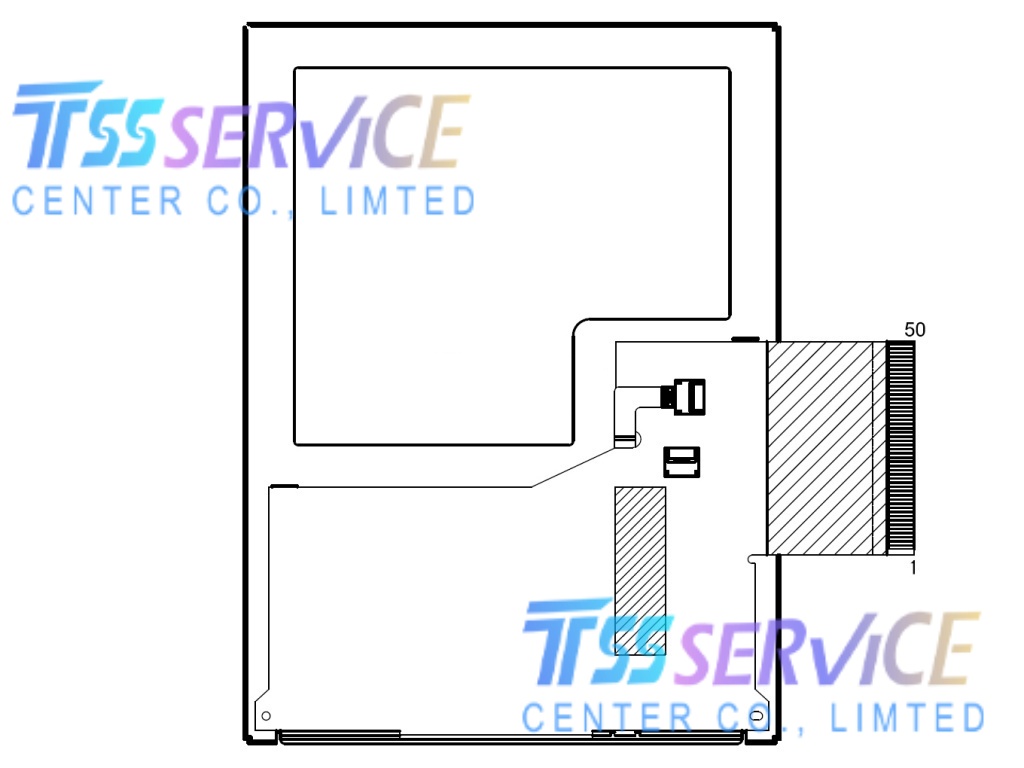

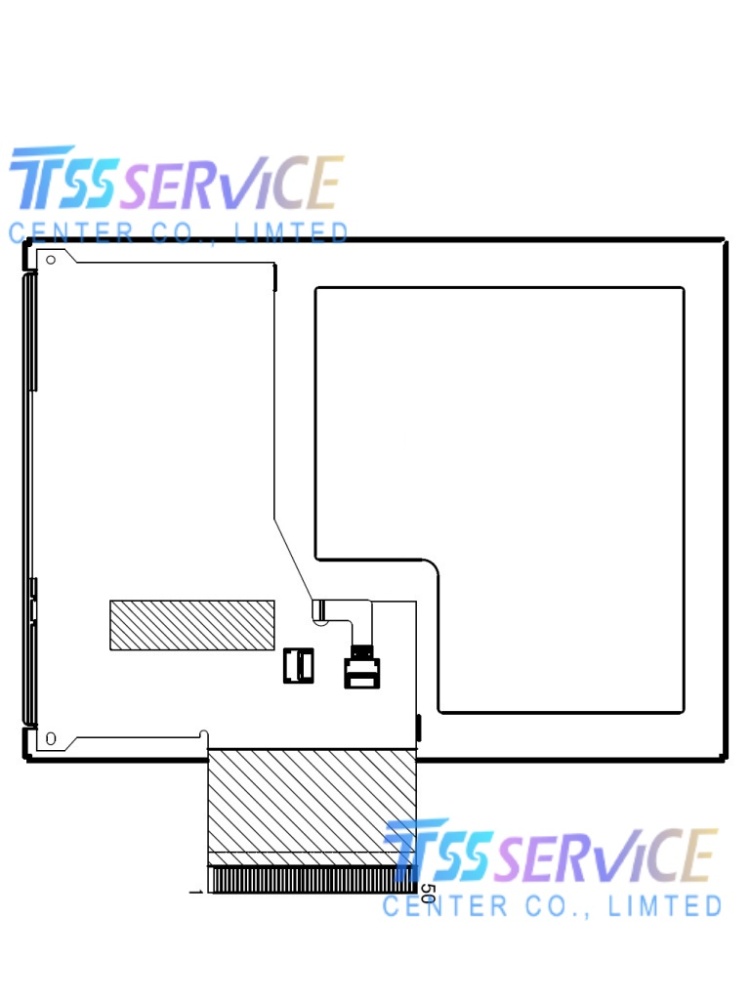

Outline Dimension	76.5(W) × 54.5(H) × 2.8(D) mm
Weight	Approx. 36g
