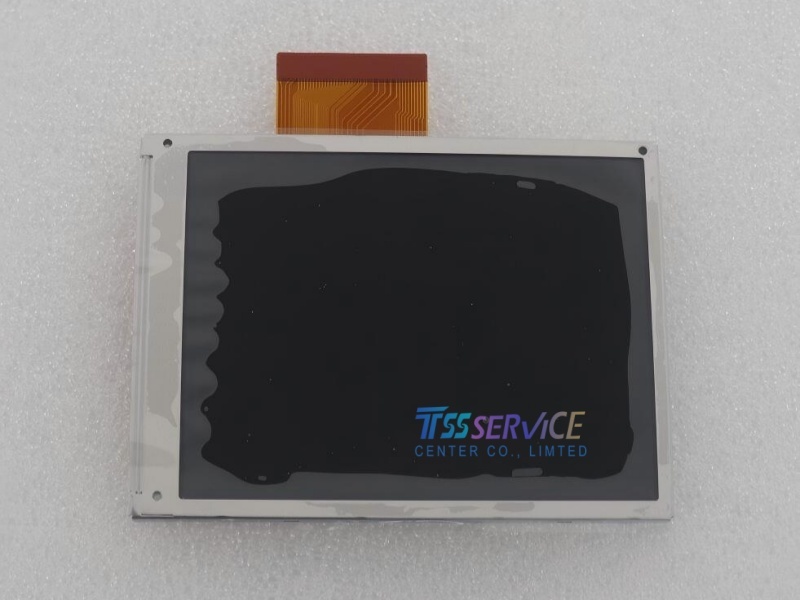

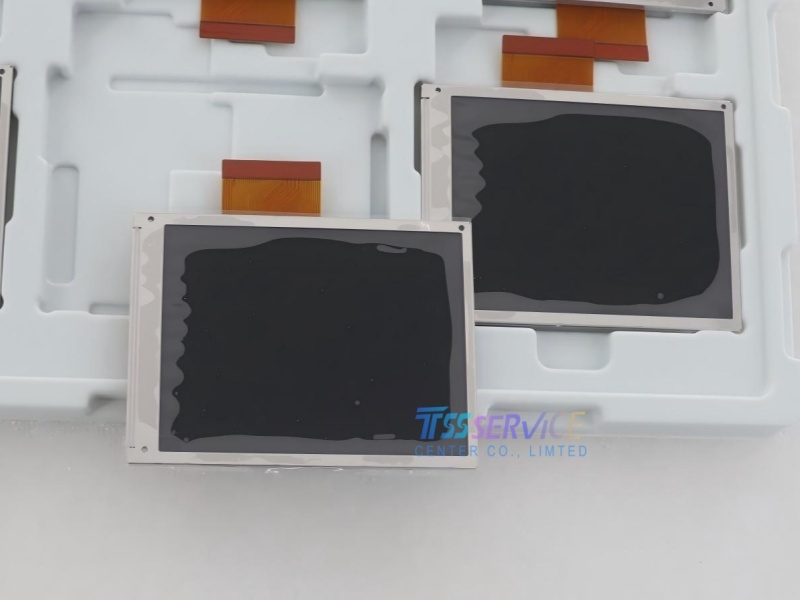

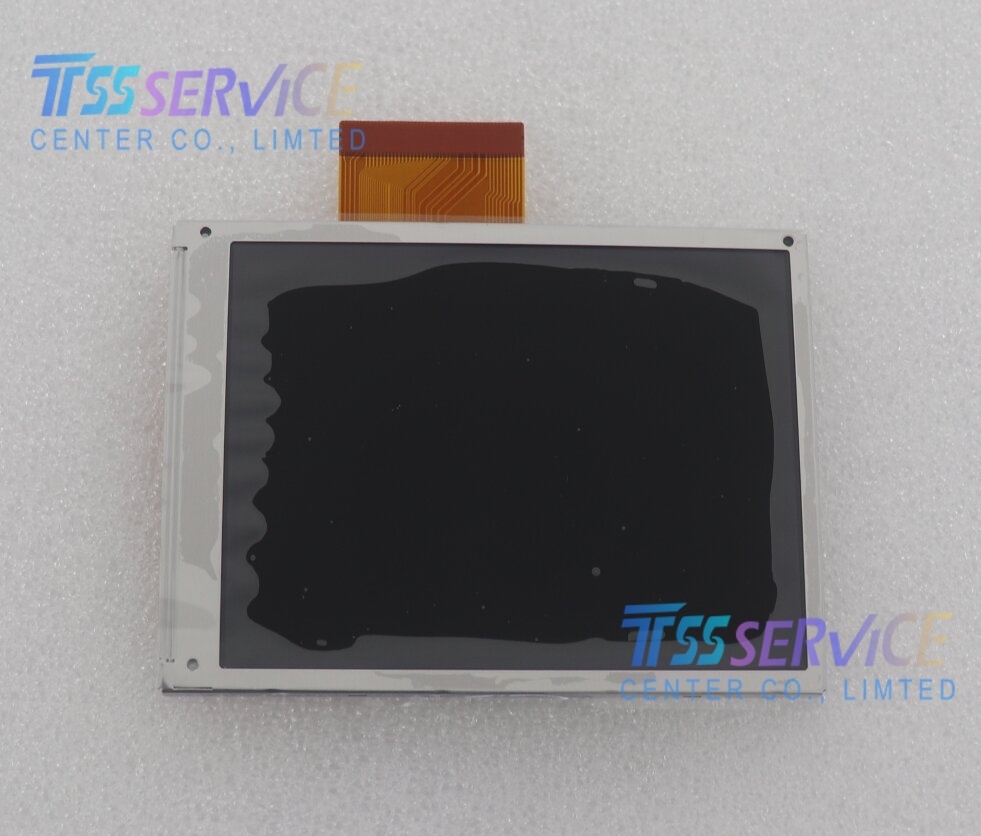

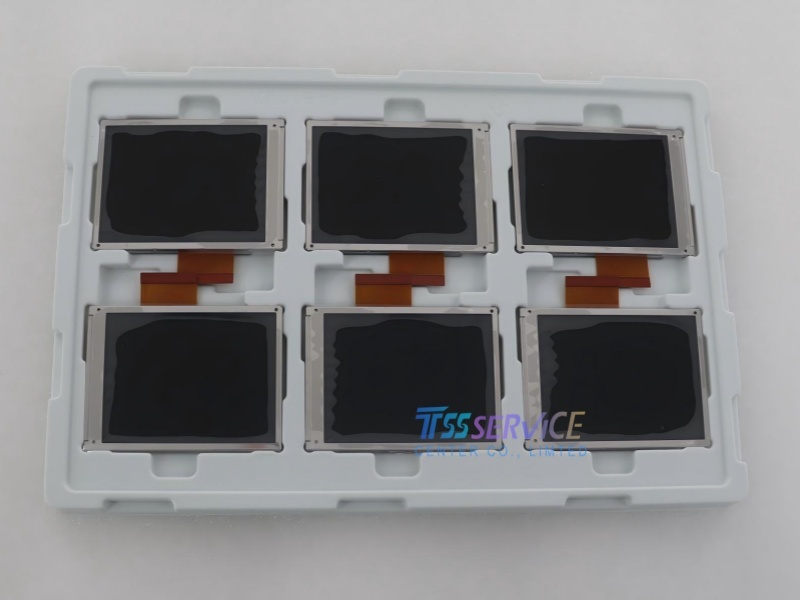

Hitachi /KOE TX09D40VM3CBA REV.D 3.5 inch 240×320 LCD Display Module for industrial
| Parameter |
Details |
| Model Number |
TX09D40VM3CBA, REV.D |
| Manufacturer |
Hitachi (KOE, Kaohsiung Opto Electronics) |
| Display Type |
a-Si TFT-LCD, Transmissive |
| Diagonal Size |
3.5 inch (88.9 mm) |
| Resolution |
240 (RGB) × 320 pixels (QVGA) |
| Pixel Format |
RGB vertical stripe |
| Pixel Pitch |
0.0745 (W) × 0.2235 (H) mm |
| Active Area |
53.64 (W) × 71.52 (H) mm |
| Outline Dimensions |
64.0 (W) × 86.0 (H) mm |
| Module Thickness |
4.0 mm (Typ.), 5.5 mm (Max.) |
| Display Mode |
TN, Normally White, Transmissive |
| Color Depth |
6-bit RGB, 262K colors |
| Brightness |
430 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) |
| Viewing Angle (CR≥5) |
80° (L), 50° (R), 80° (U), 80° (D) |
| Backlight |
WLED (White LED), 1-ch, non-touch |
| Interface |
Parallel RGB (1 ch, 6-bit), 50-pin FPC |
| Driver Voltage |
VCC: 3.0V (Typ.), VDH: 8.45V (Typ.), VGH: 16.5V (Typ.), VGL: -8.05V (Typ.) |
| Frequency |
V-sync: 60 Hz (Typ.), H-sync: 20.77 kHz (Typ.), DCLK: 5.6 MHz (Typ.) |
| Power Consumption |
ICC: 0.22 mA (VCC), IDH: 3.3 mA (VDH) |
| Operating Temp. |
-20°C ~ +70°C |
| Storage Temp. |
-30°C ~ +80°C |
| Weight |
44.0 g (Typ.) |
| Surface |
Anti-glare, Hard coating (3H) |
| RoHS |
Compliant |
The TX09D40VM3CBA REV.D is a rugged, industrial-grade 3.5-inch QVGA TFT-LCD module designed for handheld, portable, and industrial embedded systems requiring high reliability, wide temperature tolerance, and compact form factor.
- Industrial Handheld Terminals & PDAs
Portable data collectors, barcode scanners, inventory management devices, and rugged mobile computers used in manufacturing, logistics, and field service.
- Industrial Control & HMI
Human-machine interfaces, factory automation panels, test & measurement equipment, and process monitoring displays.
- Medical & Healthcare Devices
Portable diagnostic tools, patient monitors, and handheld medical instruments requiring stable, clear display in clinical environments.
- Automotive & In-Vehicle Displays
On-board diagnostics (OBD), rear-seat entertainment, and automotive control interfaces (suitable for wide temp range).
- Portable Test & Measurement
Handheld multimeters, oscilloscopes, signal generators, and field calibration tools.
- Embedded & Specialty Equipment
Avionics, marine instruments, military portable devices, and high-end consumer electronics requiring long-life displays.
