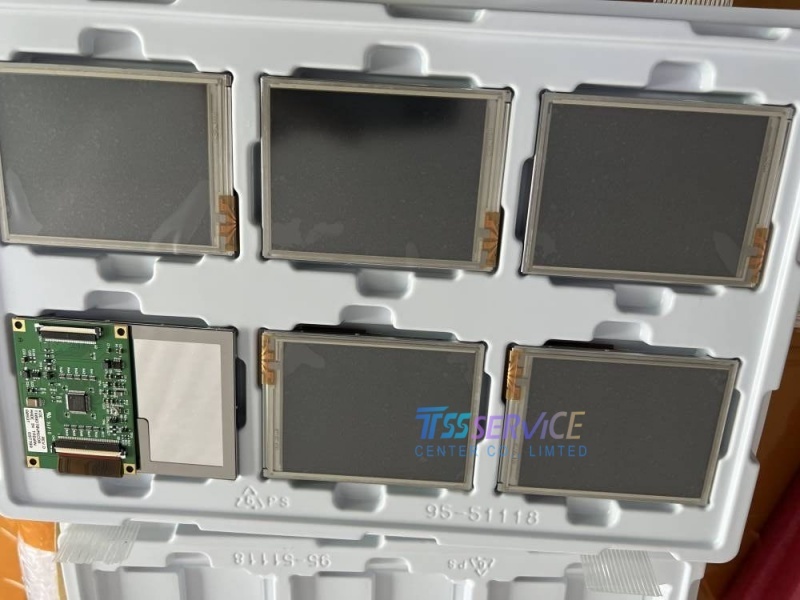

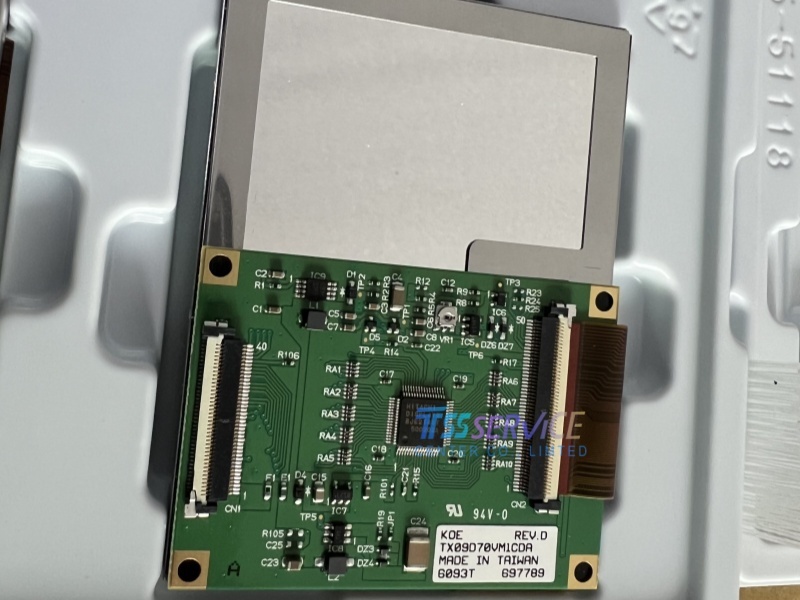

TX09D70VM1CDA 3.5-inch TFT-LCD Display Module: Precision and Clarity for Embedded Applications
The TX09D70VM1CDA is a high-performance 3.5-inch TFT-LCD display module designed to deliver exceptional visual performance and reliability for embedded systems and industrial applications. Engineered with advanced thin-film transistor (TFT) technology, this module offers superior image quality, wide viewing angles, and robust operation in demanding environments.
| Parameter |
Value |
| Mfr. |
HITACHI |
| Model Name |
TX09D70VM1CDA |
| Display Size |
3.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
240(RGB)×320, QVGA, 3:4 |
| Dot Layout |
RGB Vertical Stripe |
| Display Area |
53.64(W)×71.52(H) mm |
| Panel Weight |
40.0g (Typ.) |
| Outline Size |
64(W)×86(H)×7.47(D) mm |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) (TM) |
| Viewing Angle |
70/70/80/60 (Typ.)(CR≥5) |
| Display Mode |
TN, Normally White, TMR |
| View Direction |
12 o'clock |
| Response Time |
30 (Typ.)(Tr+Td) ms |
| Display Colors |
262K, 60% NTSC |
| Touch Screen |
Without |
| Power Usage |
0.42W (Typ.) |
| Light Source |
WLED, With LED Driver |
| Frequency |
60Hz |
| Interface |
CMOS (1 ch, 6-bit), 40 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
| Vibration |
2.0G (19.6 m/s²) |
Target Applications
The TX09D70VM1CDA is ideally suited for integration into:
- Industrial control panels and HMI systems
- Medical monitoring devices
- Portable instrumentation and test equipment
- Automotive infotainment and dashboard displays
- Consumer electronics and smart appliances
- Embedded computing and IoT devices
-
