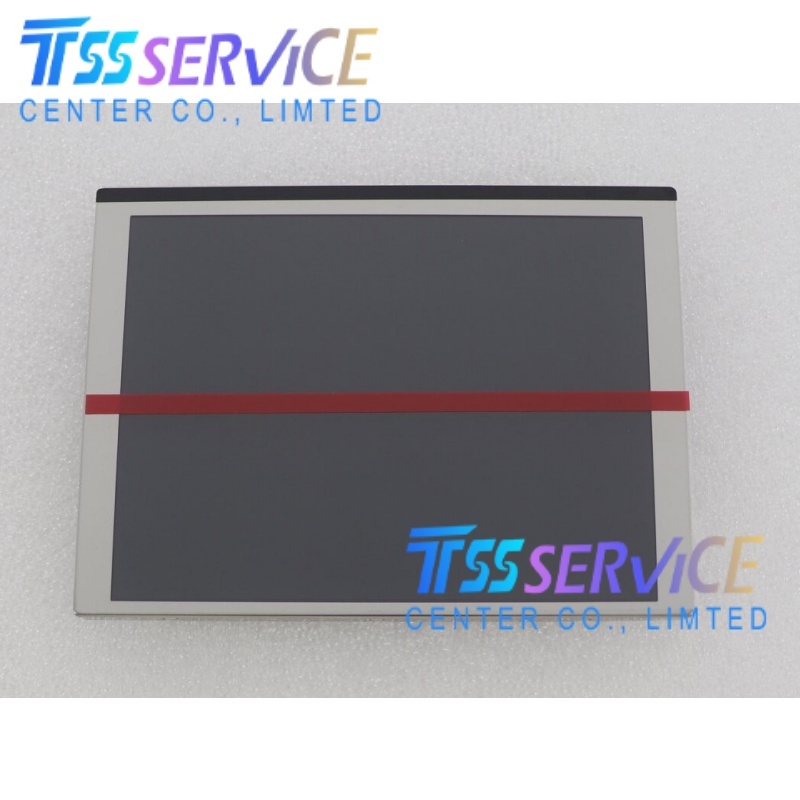

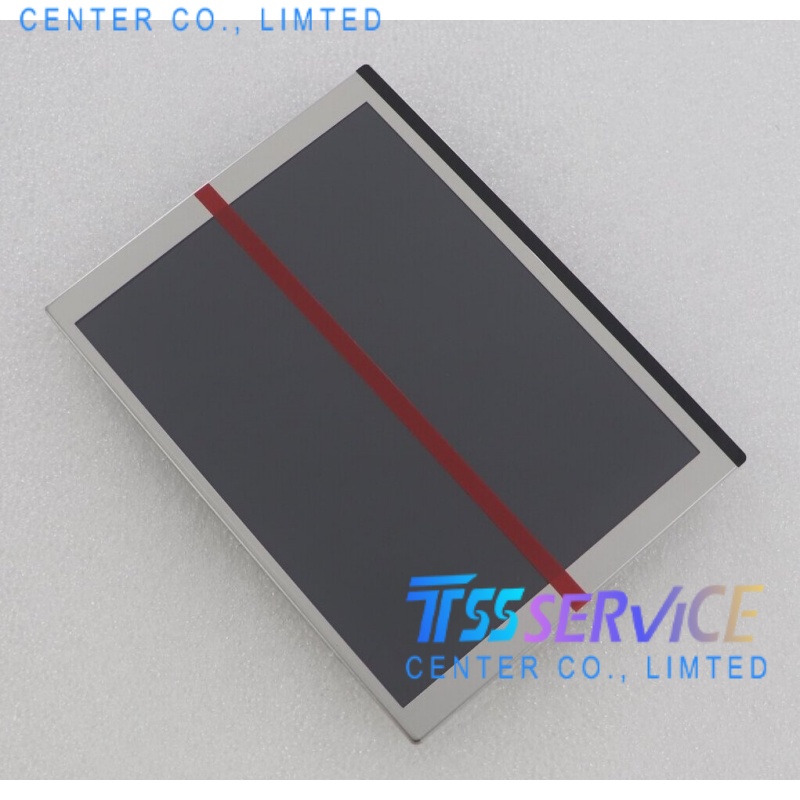

KOE/JDI/HITACH 5.0 inch LCD Display Panel TX20D203VM0BAA for Industrial NEW
| Parameter |
Specification |

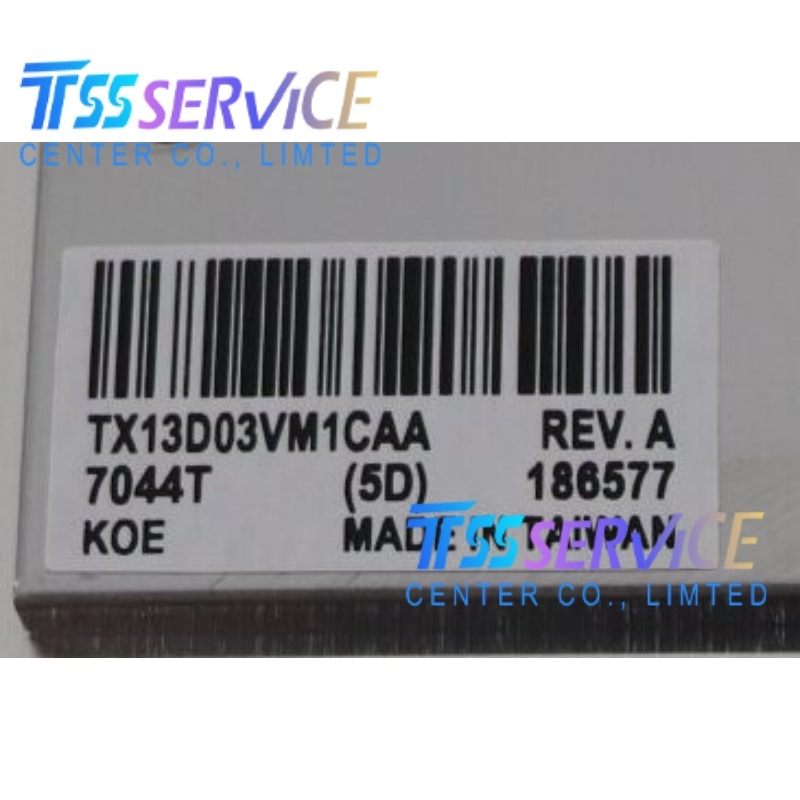

| Model Number |
TX13D03VM1CAA |
| Manufacturer |
Hitachi (KOE) |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Display Size |
5.0 inches (Diagonal) |
| Resolution |
640 (RGB) × 480 pixels (VGA) |
| Pixel Pitch |
0.225 mm (H) × 0.225 mm (V) (Approx.) |
| Active Area |
115.2 mm (W) × 86.4 mm (H) |
| Outline Dimensions |
~132.0 mm (W) × 105.0 mm (H) × ~10-12 mm (D) (Varies by backlight unit) |
| Color Depth |
262,144 colors (6-bit) or 16.7M (8-bit depending on config) |
| Interface |
TTL (Parallel RGB) |

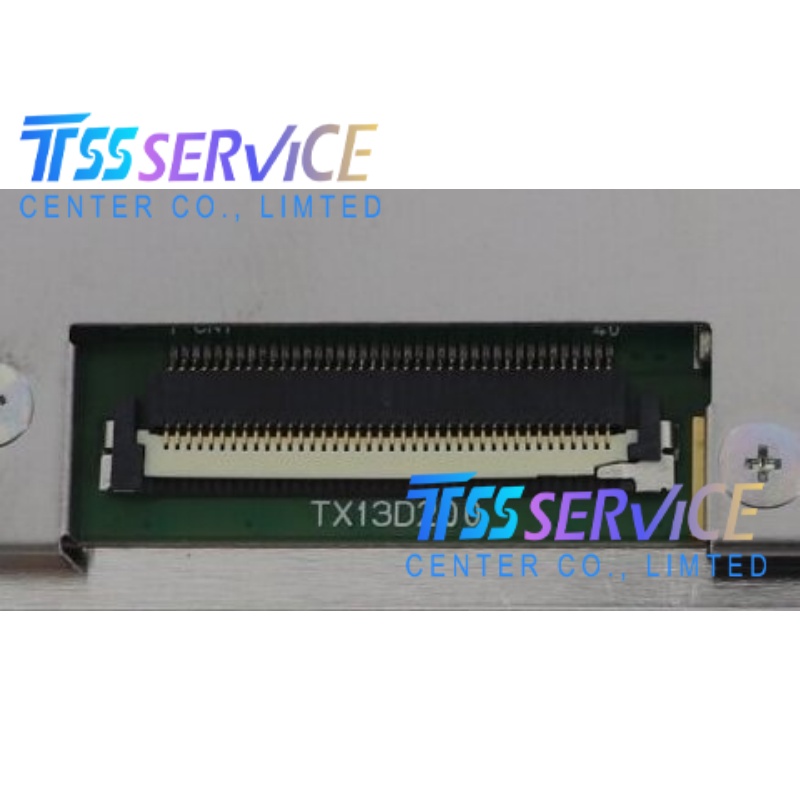

| Signal Connector |
Typically 30-pin or 31-pin FPC/Connector |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp) or LED (Revision dependent) |
| Brightness |
400 ~ 600 cd/m² (Typical) |
| Contrast Ratio |
400:1 to 500:1 (Typical) |
| Viewing Angle |
80°/80°/80°/80° (L/R/U/D) (Min. CR>10) |
| Operating Temp. |
-20°C to +70°C |
| Storage Temp. |
-30°C to +80°C |
| Weight |
Approx. 300g - 400g |
| Orientation |
Landscape |
The TX13D03VM1CAA is engineered for industrial and professional use cases rather than consumer electronics. Its specific applications include:
-
Industrial Automation & HMI:
- Used as the primary display for Human-Machine Interfaces (HMIs) on factory floors.
- Integrated into PLC control panels for monitoring manufacturing lines, robotic arms, and assembly processes.
- Suitable for environments with moderate vibration and temperature fluctuations.
-
Medical Equipment:
- Found in patient monitoring systems (vital signs monitors).
- Used in diagnostic imaging consoles (ultrasound, X-ray control units) where reliable grayscale and color reproduction are necessary.
- Integrated into infusion pumps and laboratory analysis devices.
-
Transportation & Railway Systems:
- Employed in train control panels and onboard passenger information displays (older generations).
- Used in ticket vending machines and station control kiosks.
- Applied in aviation ground support equipment displays.
-
Test & Measurement Instruments:
- Serves as the display screen for oscilloscopes, multimeters, and spectrum analyzers.
- Used in calibration equipment where a stable, non-glare image is required.
-
Legacy System Maintenance:
- Frequently used as a replacement panel for repairing older industrial machinery, ensuring continuity of operation for equipment that was originally designed with this specific Hitachi module.
