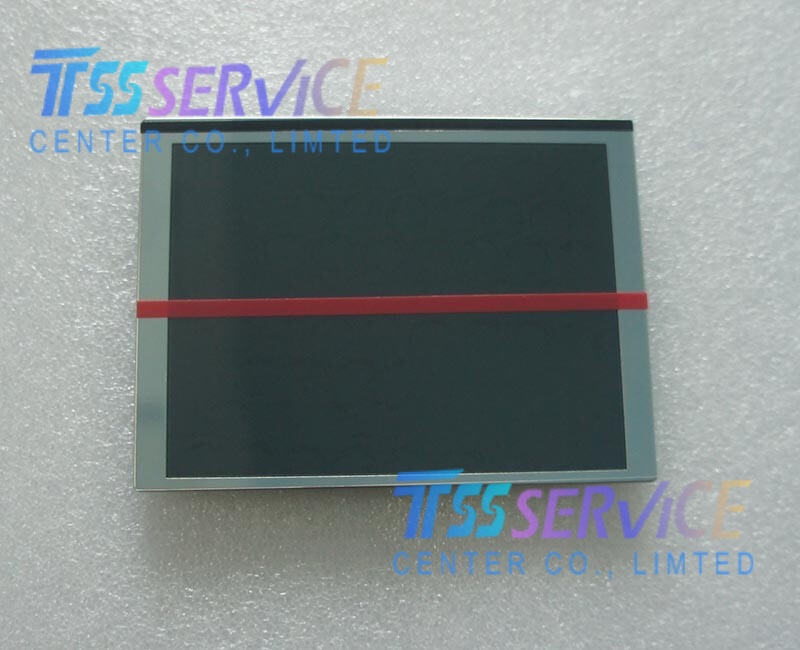

Hitachi/KOE TX13D205VM0BAA 5" WVGA IPS TFT LCD 800×480 Industrial Display for HMI & Vehicle

Name: Hitachi/KOE TX13D205VM0BAA 5" WVGA IPS TFT LCD 800×480 Industrial Display for HMI & Vehicle
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX13D205VM0BAA
Price: 203 USD
Availability: InStock

SKU: TX13D205VM0BAA

Model: TX13D205VM0BAA
Brand: KOE (Hitachi)
Size: 5.0 inch (Diagonal)
Display Type: a-Si TFT-LCD, IPS
Resolution: 800(RGB)×480, WVGA, 188 PPI

0.0 (0 Reviews)

0 Sold

~~$205.00~~ $203.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Hitachi/KOE TX13D205VM0BAA 5" WVGA IPS TFT LCD 800×480 Industrial Display for HMI & Vehicle

Item	Specification
Model	TX13D205VM0BAA
Brand	KOE (Hitachi)
Size	5.0 inch (Diagonal)
Display Type	a-Si TFT-LCD, IPS (In-Plane Switching)
Resolution	800(RGB)×480, WVGA, 188 PPI
Brightness	1300 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.)
Viewing Angle	L/R/U/D: 80°/80°/80°/80° (CR≥10)
Display Colors	16.7M Colors (8-bit RGB)
Backlight	WLED (2 strings), Lifespan: 70,000 Hours, No Driver

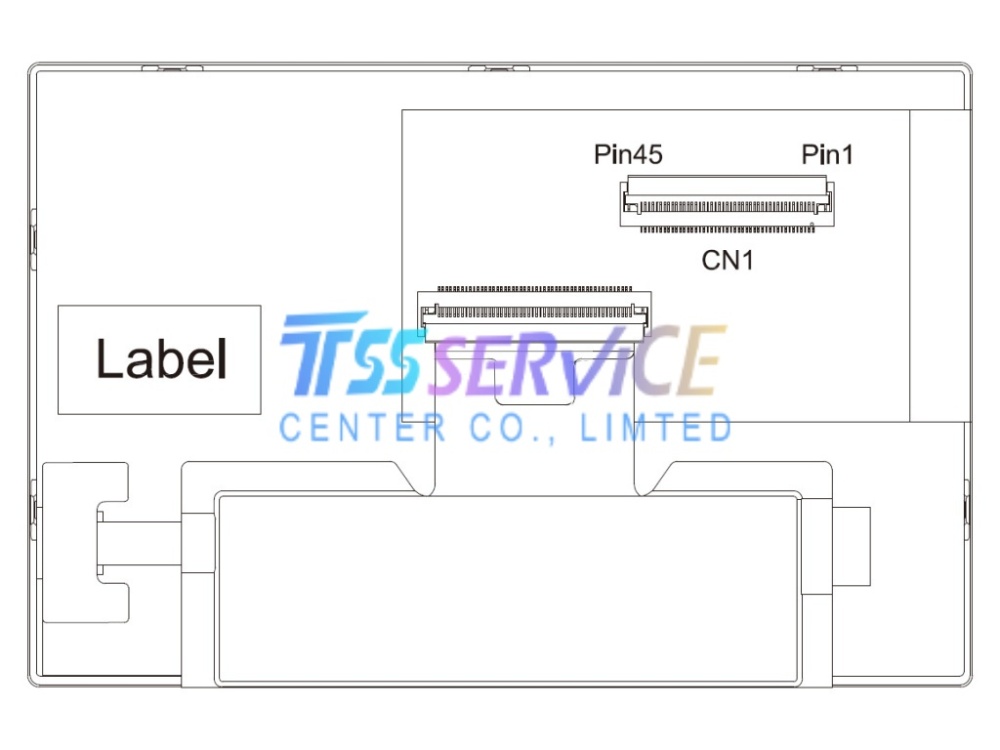

Interface	Parallel RGB (1 ch, 8-bit), 45-pin Connector
Operating Temperature	-30℃ ~ +80℃
Storage Temperature	-30℃ ~ +80℃
Compliance	RoHS
Active Area	108×64.8 mm (H×V)
Outline Dimension	121×80×10.45 mm (H×V×D)
Weight	Approx. 95g
Special Feature	180° Display Flip

Applications

Outdoor Industrial HMI & Control Panels: Factory automation, PLC terminals, CNC machinery (1300cd/m² sunlight readable & wide temp).
Vehicle & Marine Displays: Forklifts, construction machinery, in-vehicle infotainment, ship instrument panels (IPS full viewing angle & high vibration resistance).
Medical Equipment: Portable diagnostic devices, patient monitors, medical control terminals (stable performance & long lifespan).
Outdoor Kiosks & Terminals: Self-service machines, access control, outdoor monitoring (high brightness & anti-glare).
Smart Industrial Devices: Industrial PDAs, data collectors, barcode scanners, portable test equipment.
Specialty Instruments: Surveying, environmental monitoring, power meters, and industrial test equipment.
