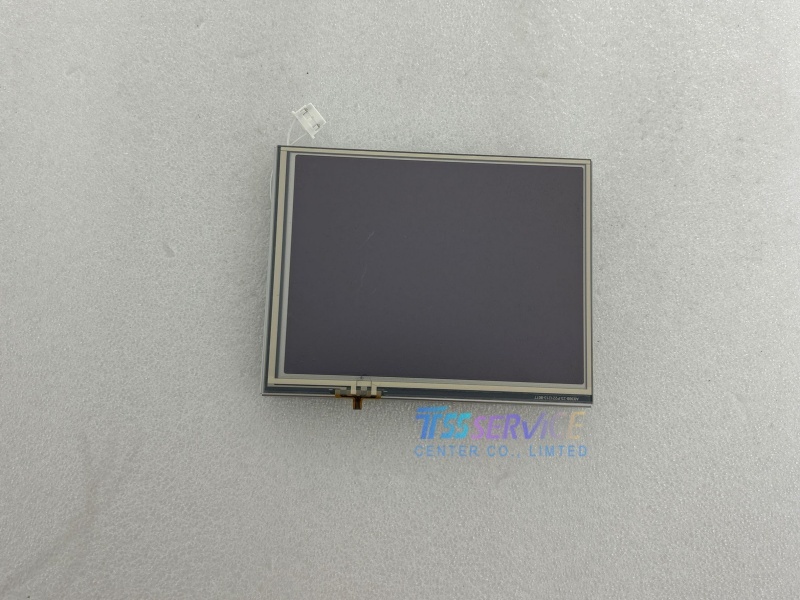

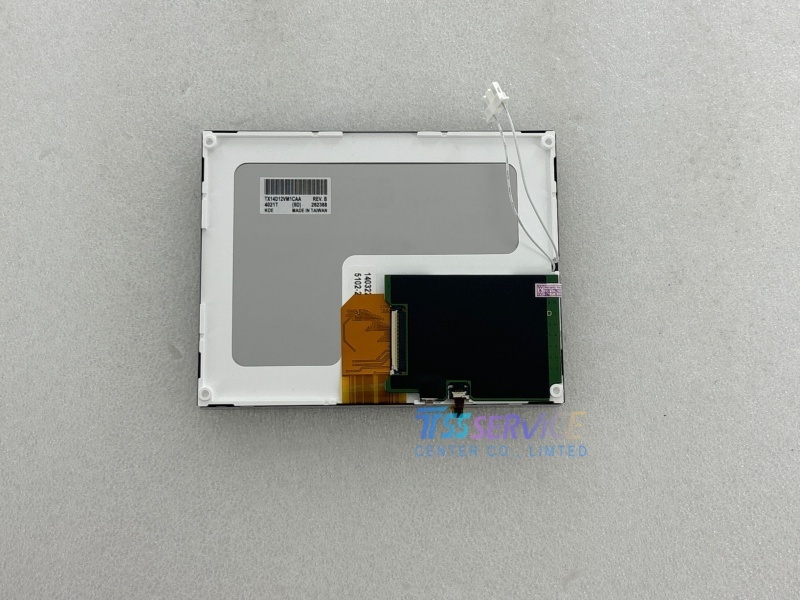

TX14D12VM1CAA 5.7inch LCD with 4-wire Resistive Touch

Name: TX14D12VM1CAA 5.7inch LCD with 4-wire Resistive Touch
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX14D12VM1CAA
Price: 143 USD
Availability: InStock

SKU: TX14D12VM1CAA

Model P/N:TX14D12VM1CAA
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240, QVGA 70PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$145.00~~ $143.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TX14D12VM1CAA is a high-quality 5.7-inch TFT-LCD module equipped with an integrated 4-wire resistive touch screen. Utilizing amorphous silicon (a-Si) technology, this module is engineered for embedded applications that demand compact size, reliable touch input, and clear visual display under various operating conditions.

Feature	Specification
Display Size	5.7 inches
Display Technology	a-Si TFT-LCD
Resolution	320(RGB)×240, QVGA 70PPI
Active Area (W×H)	115.2(W)×86.4(H) mm
Brightness (Typical)	280 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) TM)
Viewing Angle	65/65/70/50 (Typ.)(CR≥5)
Display Interface	RGB
Backlight	1 pcs CCFL , 50K hours ,
Touch Screen	4-Wire Resistive
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Typical Applications	Industrial HMIs, Medical Monitors, Handheld Test Equipment, Portable Data Terminals, Kiosks, Consumer Appliances.

Applications

The TX14D12VM1CAA is ideally suited for:

Industrial control panels and HMIs – Reliable touch input with glove support
Medical monitoring equipment – Proven display technology for healthcare environments
Test and measurement instruments – Clear QVGA display for data readouts
Factory automation systems – Durable construction with industrial temperature range
Building automation terminals – 4:3 format ideal for control interfaces
