TX14D12VM1CBC 5.7inch 320×240 TFT-LCD in stock

Name: TX14D12VM1CBC 5.7inch 320×240 TFT-LCD in stock
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX14D12VM1CBC
Price: 132 USD
Availability: InStock

SKU: TX14D12VM1CBC

Model P/N:TX14D12VM1CBC
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240, QVGA 70PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $132.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

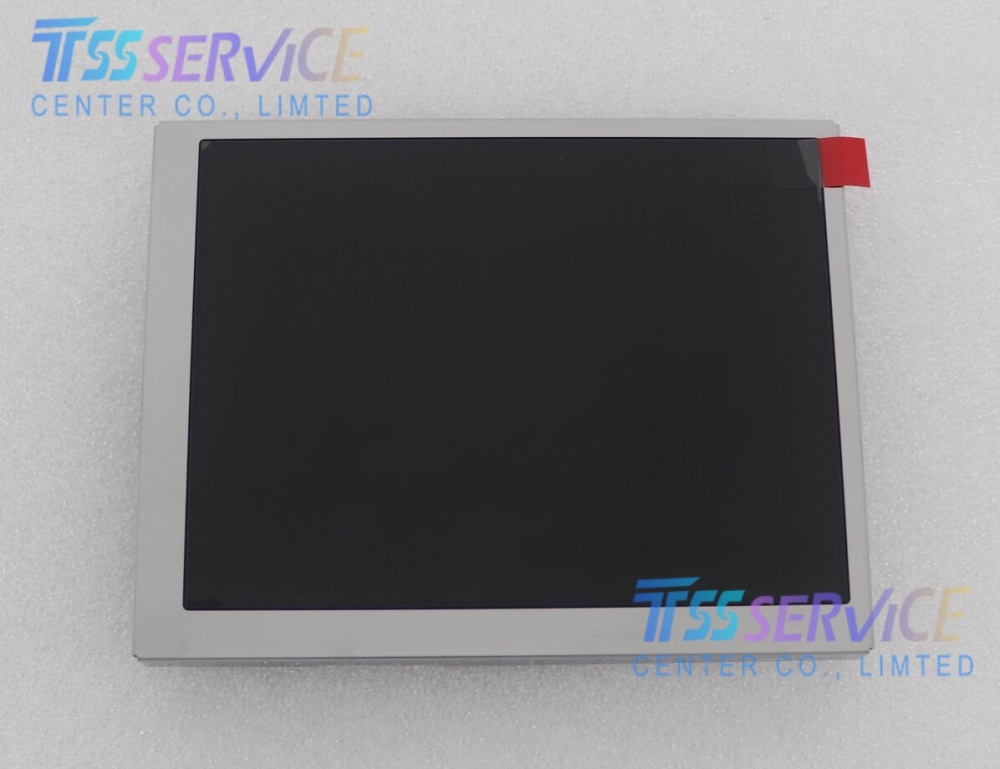

The TX14D12VM1CBC is a 5.7-inch TFT LCD module with QVGA resolution, currently available in stock for immediate delivery. This display is part of a reliable industrial-grade series, offering a cost-effective and readily integrable solution for embedded systems requiring a compact visual interface.

Feature	Specification
Model Number	TX14D12VM1CBB
Display Type	a‑Si TFT‑LCD (TN, Normally White)
Screen Size	5.7 inches (diagonal)
Resolution	320 × 240 (QVGA)
Active Area	115.2 mm (W) × 86.4 mm (H)
Brightness (Typ.)	400 cd/m² (Typ.)
Contrast Ratio (Typ.)	350:1
Viewing Angle (CR≥5)	70/70/80/70 (Typ.)(CR≥5)
Color Support	262K colors (~60% NTSC)

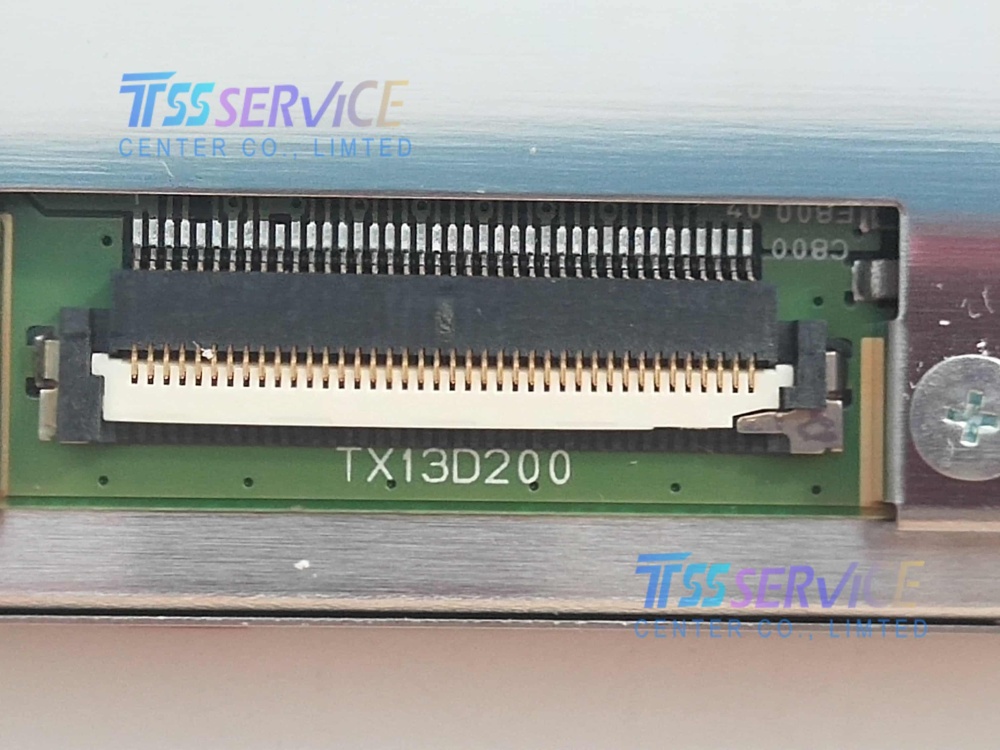

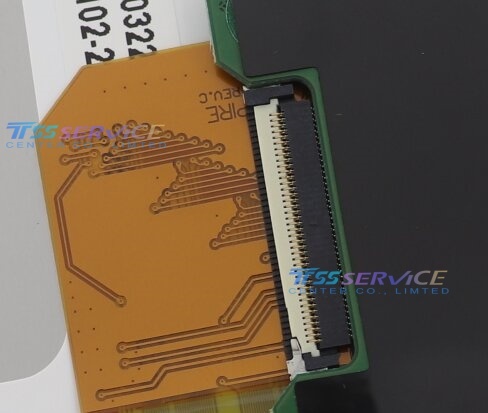

Interface	CMOS (1 ch, 6-bit) , 40 pins Connector
Power Supply	3.3 V (Typical)
Touch Option	Compatible with 4‑wire resistive touch panel
Operating Temperature	–20 °C to +70 °C
Outline Dimensions	Approx. 131.0 mm (W) × 102.2 mm (H) × 12.4 mm (D)
Typical Applications	Industrial HMI, medical monitors, test instruments, embedded systems

Applications

Due to its rugged build and stable 5.7-inch form factor, the TX14D12VM1CBC is primarily used in:

Industrial Automation: Human Machine Interfaces (HMIs), CNC machine controllers (compatible with Siemens, Mitsubishi, FANUC), and Programmable Logic Controllers (PLCs).
Medical Equipment: Patient monitoring devices and diagnostic instruments where reliability is critical.
Test & Measurement: Portable oscilloscopes, spectrum analyzers, and data loggers.
Commercial Kiosks: POS systems and industrial handheld terminals.
