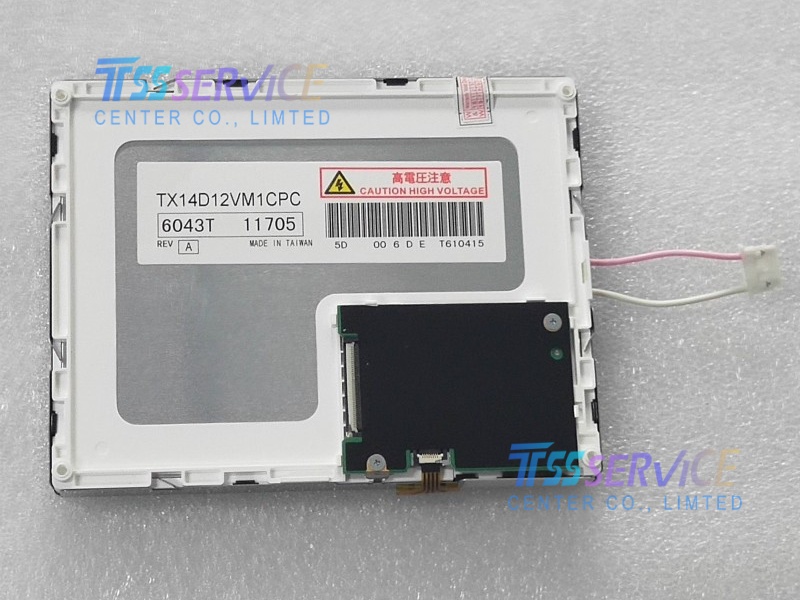

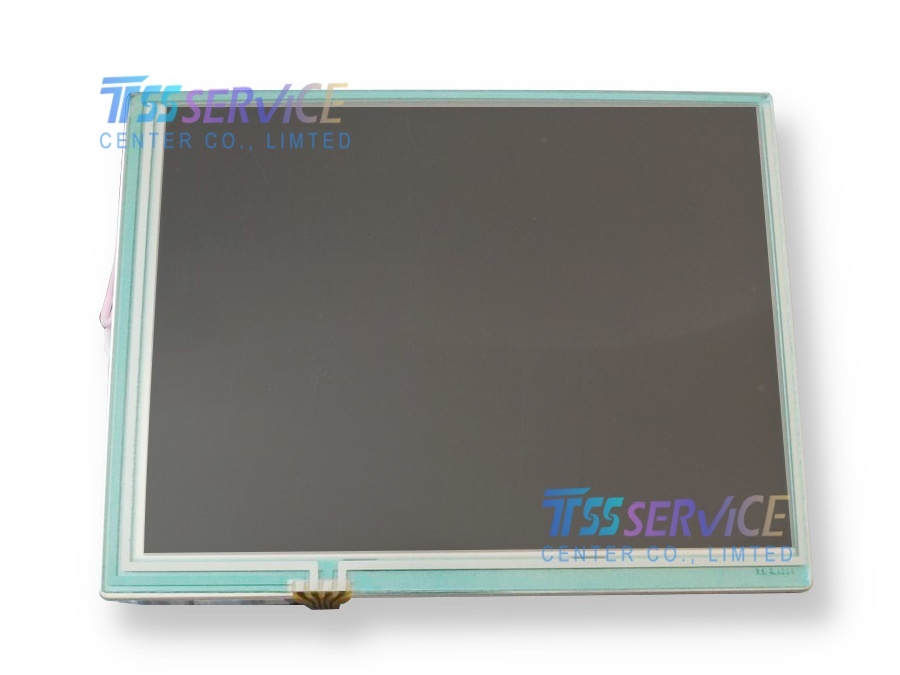

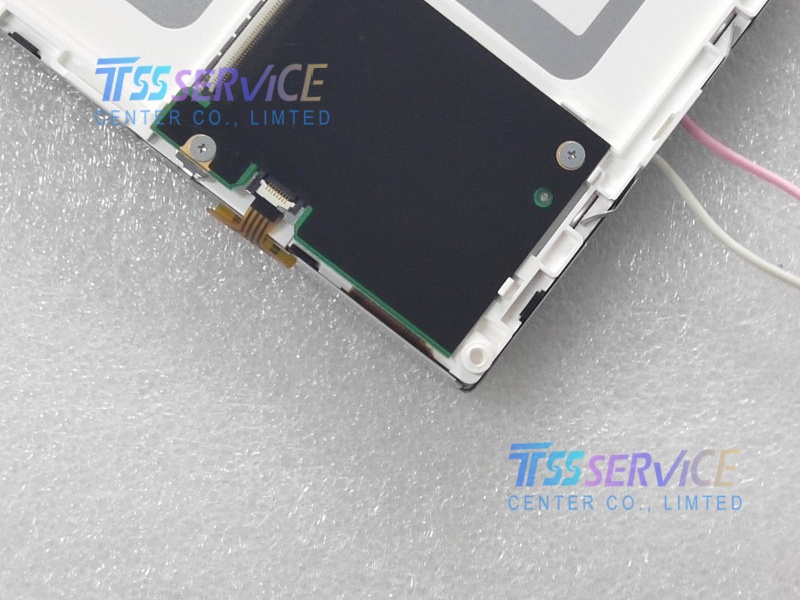

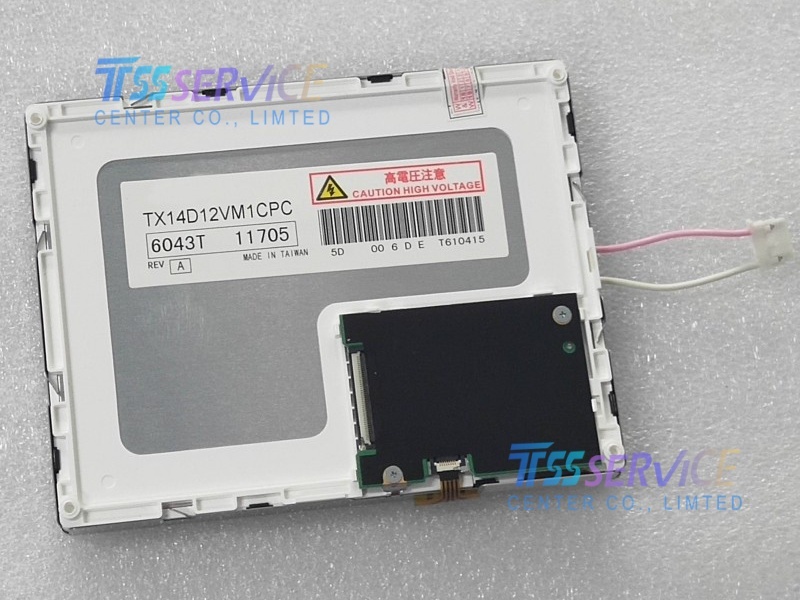

TX14D12VM1CPC 5.7inch LCD with 4-Wire Resistive Touch

Name: TX14D12VM1CPC 5.7inch LCD with 4-Wire Resistive Touch
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX14D12VM1CPC
Price: 143 USD
Availability: InStock

SKU: TX14D12VM1CPC

Model P/N: TX14D12VM1CPC
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240, QVGA 70PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$145.00~~ $143.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TX14D12VM1CPC is a fully integrated 5.7-inch industrial display module featuring a QVGA-resolution TFT LCD panel and a durable 4-wire resistive touch overlay. This ready-to-install solution provides a reliable human-machine interface (HMI) for applications requiring direct user interaction in demanding environments.

Feature	Specification
Model Number	TX14D12VM1CPC
Display Type	5.7" a-Si TFT-LCD (TN)
Resolution	320 × 240 pixels (QVGA)
Touch Technology	Integrated 4-Wire Resistive Touch Panel
Brightness	320 cd/m² (Typ.)
Active Area	115.2 × 86.4 mm
Viewing Angle (CR≥5)	70/70/80/70 (Typ.)(CR≥5)
Interface	CMOS (1 ch, 6-bit) , 40 pins Connector
Power Supply	3.3V (Typical)
Operating Temperature	-20°C to +70°C
Outline Dimensions	~131.0 × 102.2 × 12.4 mm

Typical Applications

Due to its rugged design and integrated touch interface, the TX14D12VM1CPC is ideal for:

Industrial Automation: Human Machine Interfaces (HMIs), CNC machine controllers, PLC operator panels
Medical Equipment: Patient monitors and diagnostic devices requiring touch interaction
Test & Measurement: Oscilloscopes, spectrum analyzers, and data loggers
Commercial Kiosks: POS terminals and public information displays
