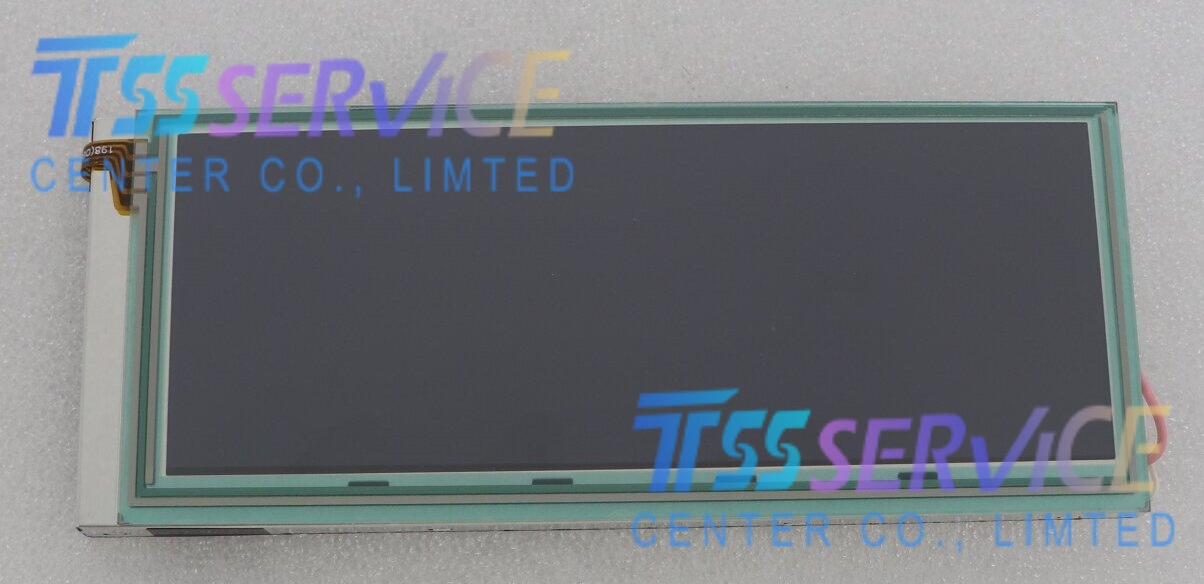

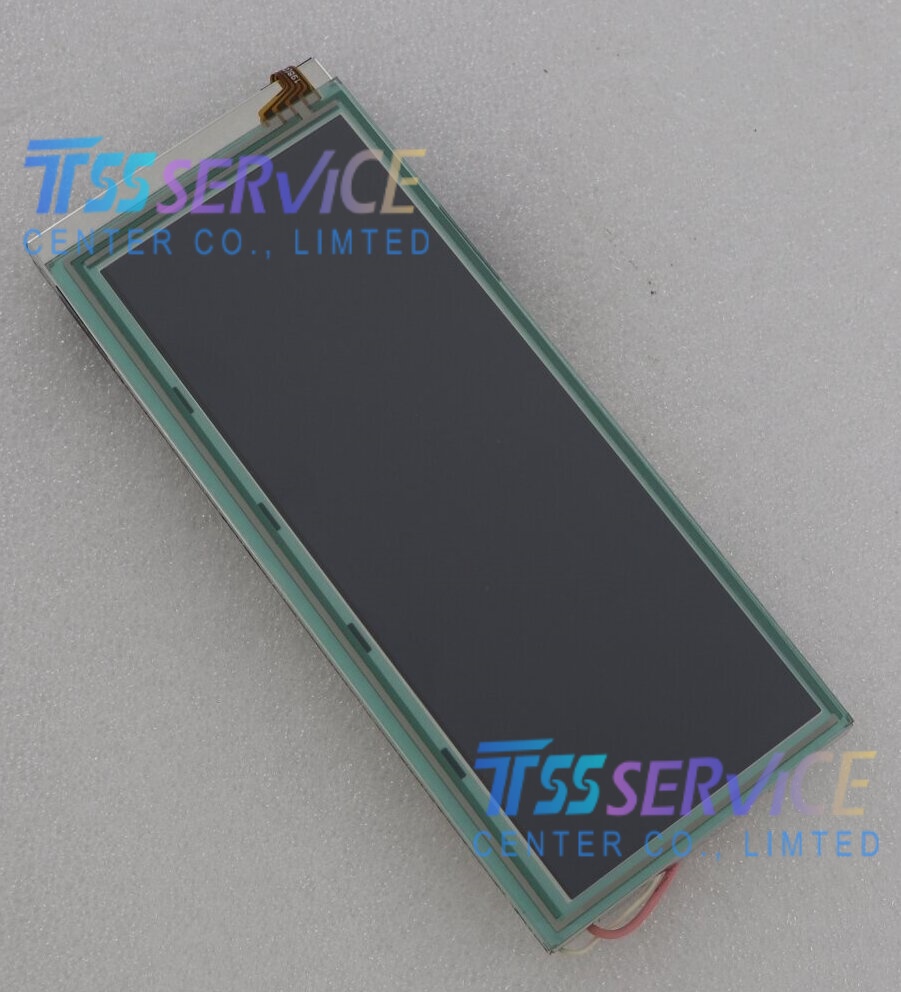

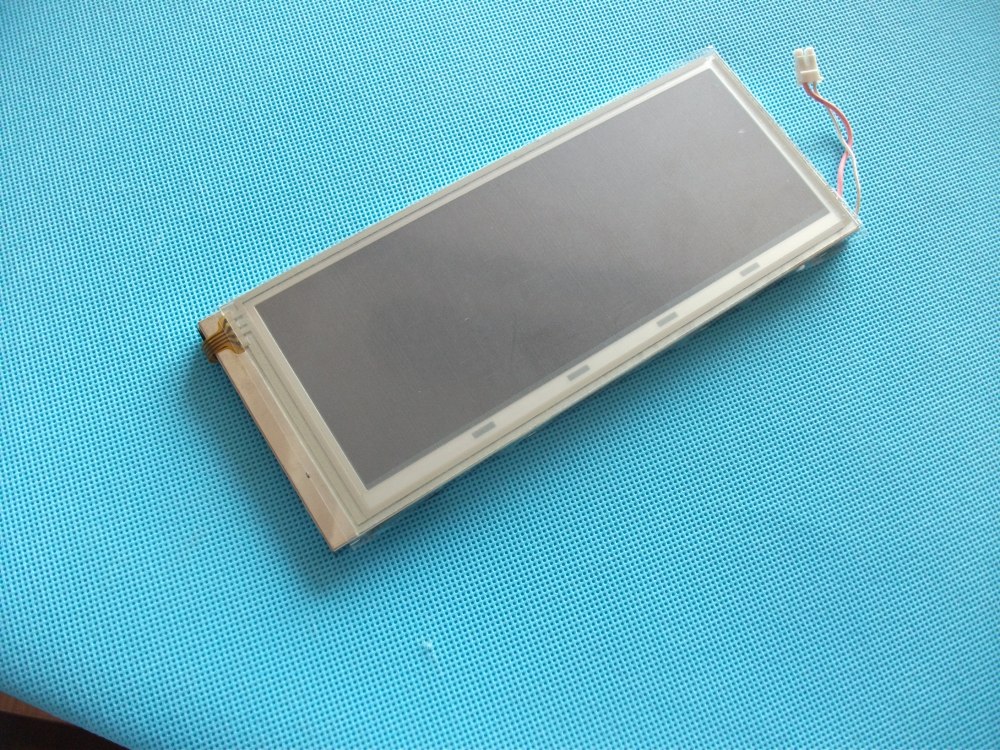

TX16D11VC1CAA KOE/HITACHI 6.2 inch LCD Display Screen For Industrial
| Parameter |
Specification |
| Manufacturer |
Hitachi (Kaohsiung Hitachi Electronics) |
| Panel Type |
a-Si TFT-LCD, TN, Normally White, Transmissive |
| Diagonal Size |
6.2 inches (157.5 mm) |
| Resolution |
640 (H) × 240 (V) pixels (HVGA, ~109 PPI) |
| Pixel Format |
6-bit (262K colors), RGB Vertical Stripe |
| Active Area |
148.8 (W) × 53.76 (V) mm |
| Outline Dimensions |
~173.0 (W) × 70.0 (H) × 8.6 (D) mm (Typ.) |
| Surface Treatment |
Antiglare (AG) |
| Brightness |
200 cd/m² (Typ.) |
| Contrast Ratio |
200:1 (Typ., Transmissive) |
| Viewing Angle |
50/50/40/40 (L/R/U/D, CR≥2) |
| Response Time |
45 ms (Typ., Tr+Td) |
| Color Gamut |
65% NTSC (Typ.) |
| Backlight |
CCFL (1 pc, Edge-lit), No built-in driver |
| Backlight Lifetime |
13,000 hours (Typ.) |
| Interface |
Parallel RGB (1 ch, 6-bit), 40-pin Terminal |
| Supply Voltage |
3.3 V (Typ.) |
| Refresh Rate |
60 Hz |
| Operating Temp. |
0 °C to +50 °C |
| Storage Temp. |
-20 °C to +60 °C |
| Touch Panel |
4-wire Resistive Touch |
| RoHS Compliance |
Yes |
TX16D11VC1CAA is a 6.2-inch industrial TN LCD with resistive touch, designed for reliable performance in compact, cost-sensitive environments. Ideal for:
Industrial Control & HMI
- Compact HMI Terminals: Embedded in small-scale machinery control panels, test fixtures, and point-of-use controllers.
- Medical Devices: Interfaces for diagnostic equipment, patient monitors, and laboratory analyzers requiring touch input.
- Automotive Aftermarket: On-board diagnostics (OBD) displays, infotainment upgrades, and vehicle auxiliary controls.
- Retail & Kiosks: Small self-service checkout terminals, information tickers, and vending machine interfaces.
- Marine & Outdoor: Compact instrumentation displays for boats, industrial meters, and outdoor control stations.
Professional Audio-Visual
- Car Audio/Navigation: Head-unit displays, backup cameras, and multi-function control panels.
- Public Information: Compact digital signage, elevator indicators, and access control terminals.
