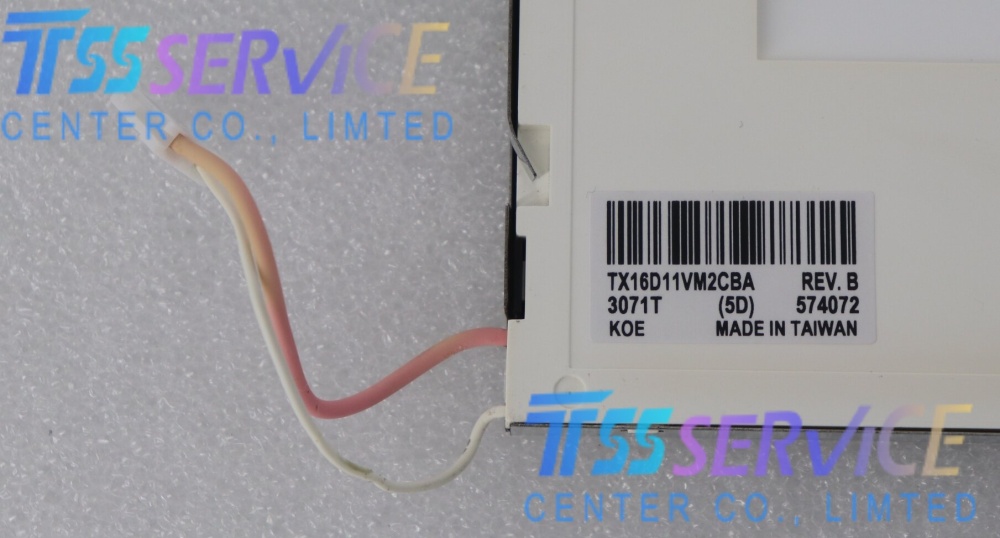

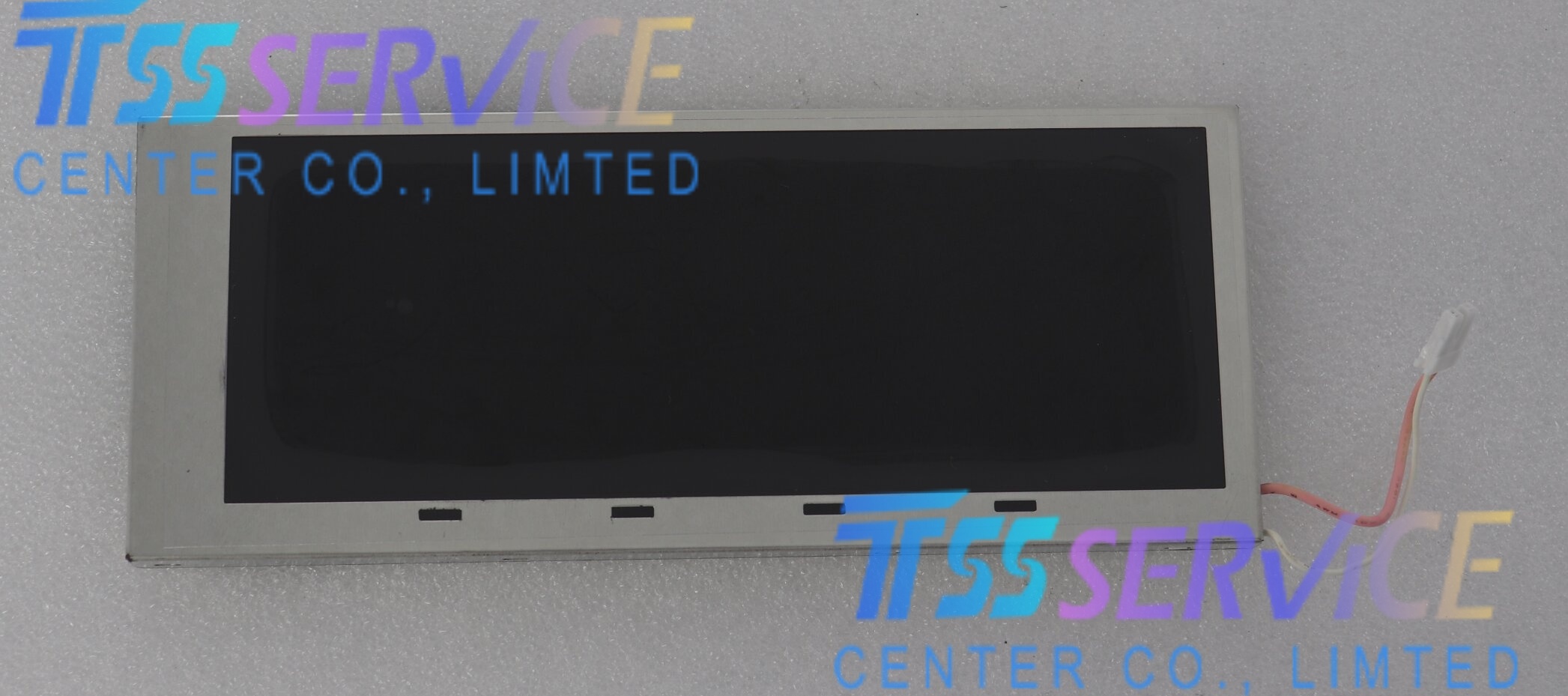

Hitachi /KOE TX16D11VM2CBA 6.2 inch 640×240 LCD Display Display for industrial
| Parameter |
Details |
| Model Number |
TX16D11VM2CBA |
| Manufacturer |
Hitachi (KOE, Kaohsiung Opto Electronics) |
| Display Type |
a-Si TFT-LCD, Transmissive |
| Diagonal Size |
6.2 inch (157.5 mm) |
| Resolution |
640 (RGB) × 240 pixels (HVGA) |
| Pixel Format |
RGB vertical stripe |
| Pixel Pitch |
0.0775 (W) × 0.224 (H) mm |
| Active Area |
148.8 (W) × 53.76 (H) mm |
| Outline Dimensions |
173.0 (W) × 70.0 (H) × 7.0 (T) mm |
| Display Mode |
TN, Normally White, Transmissive |
| Color Depth |
6-bit RGB, 262K colors |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
200:1 (Typ.) |
| Viewing Angle (CR≥5) |
70° (L), 70° (R), 60° (U), 70° (D) |
| Response Time |
45 ms (Typ.) (Tr+Td) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp), 1 pc |

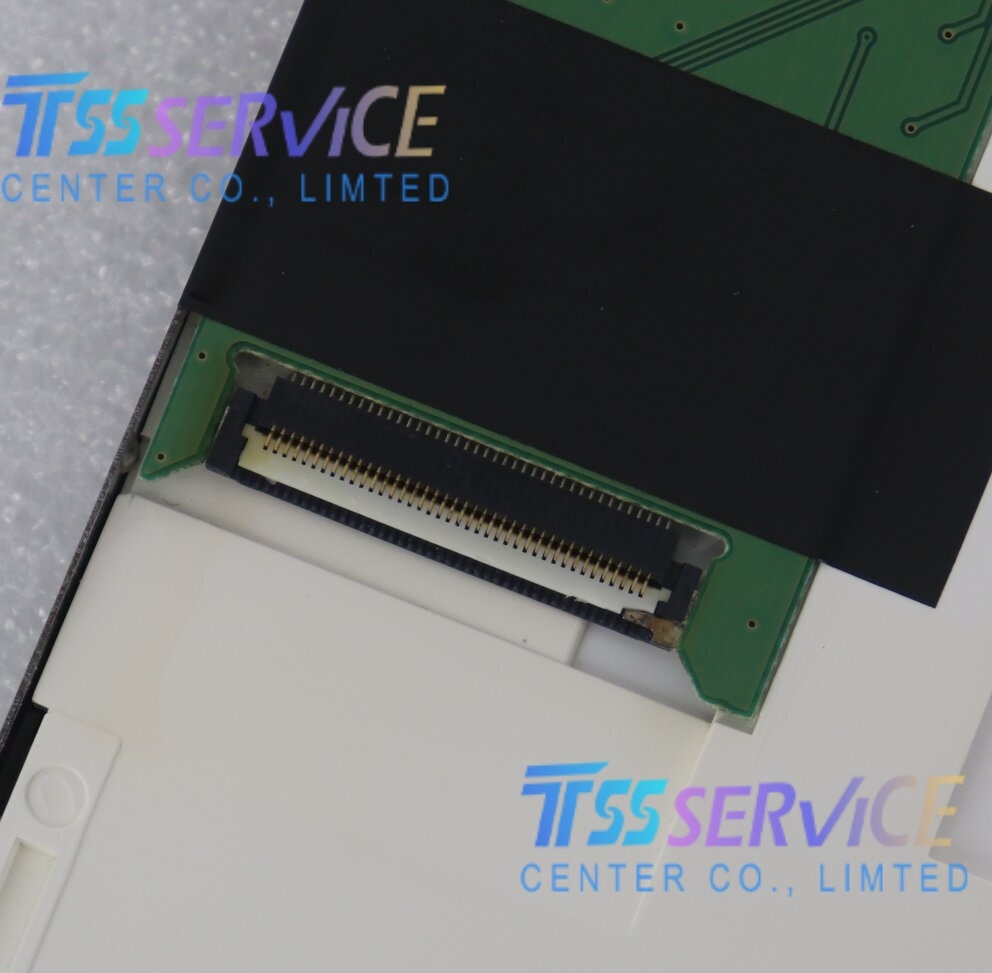

| Interface |
CMOS (1 ch, 6-bit), 40-pin connector |
| Supply Voltage |
3.3V (Typ.) (VDD) |
| Refresh Rate |
60 Hz (Typ.) |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-20°C ~ +70°C |
| Weight |
110 g (Typ.) |
| Surface Treatment |
Anti-glare, Hard coating |
| Part Status |
Obsolete (Discontinued) |
The TX16D11VM2CBA is a 6.2-inch industrial TFT-LCD module with a wide aspect ratio (8:3) and HVGA resolution, originally designed for professional industrial and embedded systems. Its key applications include:
- Industrial Human-Machine Interfaces (HMIs): Operator control panels, factory automation equipment, and process monitoring displays requiring stable, long-term performance.
- Industrial Computers & Panel PCs: Compact industrial computing systems for manufacturing, machinery, and automation lines.
- Car DVD Players & Navigation Systems: Early-generation automotive head-units and rear-seat entertainment (suitable for wide temp range).
- On-Board Diagnostics (OBD): Vehicle monitoring and diagnostic displays.
- Gaming Machines & Slot Machines: Secondary display for status, odds, or player information.
- Medical Diagnostic Equipment: Portable or bench-top medical devices requiring clear, reliable visualization.
- Test & Measurement Instruments: Data loggers, signal analyzers, and field testing tools.
- Marine & Avionics Displays: Navigation and instrumentation panels for non-critical marine/aviation equipment.
