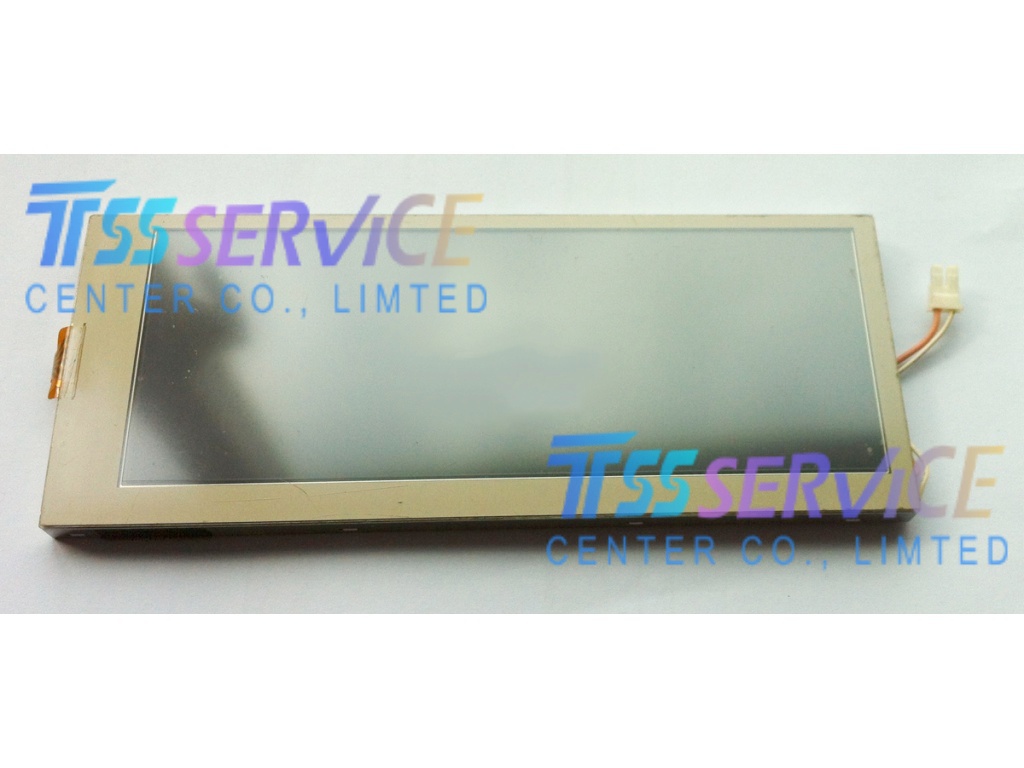

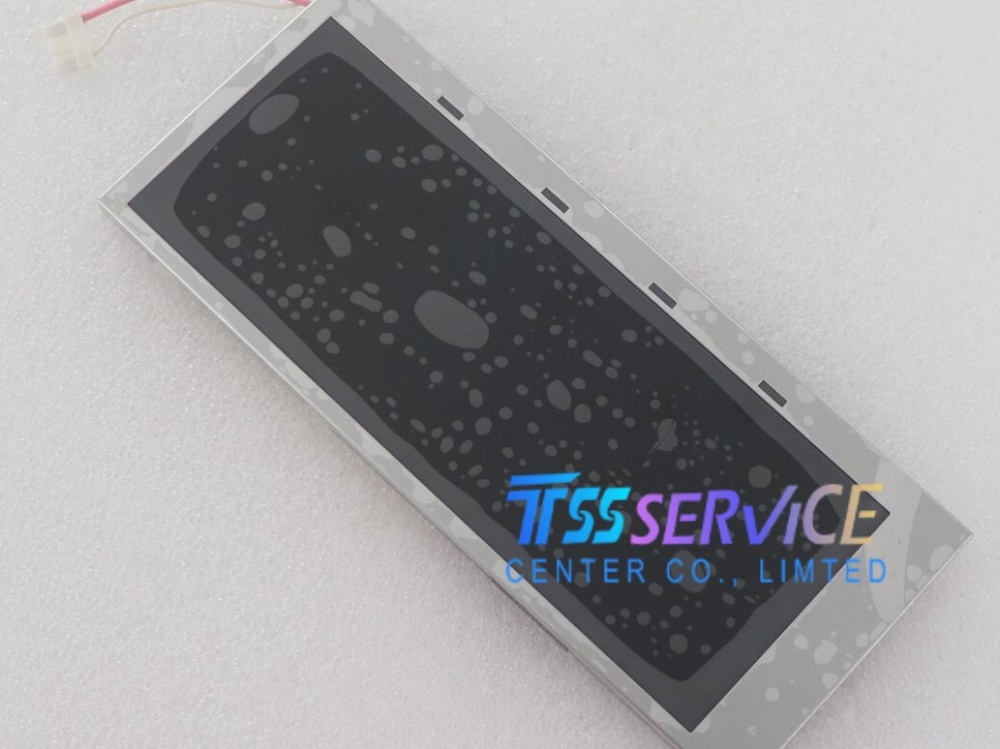

TX16D11VM2CCA KOE / Hitachi 6.2 inch 640×240 LCD Display Screen For Industrial

Name: TX16D11VM2CCA KOE / Hitachi 6.2 inch 640×240 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX16D11VM2CCA
Price: 120 USD
Availability: InStock

SKU: TX16D11VM2CCA

Model: TX16D11VM2CCA
Brand: KOE / Hitachi
Diagonal Size: 6.2 inch
Display Type: a‑Si TFT‑LCD, LCM
Resolution: 640(RGB)×240 (HVGA), 109 PPI
Pixel Arrangement: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$122.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TX16D11VM2CCA KOE / Hitachi 6.2 inch 640×240 LCD Display Screen For Industrial

Parameter	Value
Model	TX16D11VM2CCA
Brand	KOE / Hitachi
Diagonal Size	6.2 inch
Display Type	a‑Si TFT‑LCD, LCM
Resolution	640(RGB)×240 (HVGA), 109 PPI
Pixel Arrangement	RGB Vertical Stripe
Brightness	280 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ., TM)
Viewing Angle	70/70/60/70 (Typ., CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	45 ms (Typ., Tr+Td)
Color Depth	262K colors (RGB 6‑bit)
Backlight	1×CCFL, 50,000 hours, w/o driver
Touch Screen	Embedded 5‑wire resistive
Interface	Parallel RGB (1 ch, 6‑bit), 40‑pin
Input Voltage	3.3V (Typ.)
Active Area	148.8 (W) × 53.76 (H) mm
Outline Dimension	173 (W) × 70 (H) × 8.6 (D) mm
Weight	140 g (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-20°C ~ +70°C
Surface Treatment	Anti‑glare (3H hard coat)
RoHS	Compliant

Industrial HMI & Operator Panels
Factory automation, CNC machines, PLC control stations, and industrial PCs. Wide temperature (-20°C to +70°C) and vibration tolerance suit harsh shop floors.
Medical Equipment
Patient monitors, diagnostic devices, and portable medical instruments. Stable image quality and reliable touch meet medical-grade requirements.
Marine & Vehicle Terminals
Ship navigation displays, in‑vehicle HMIs, and heavy‑duty vehicle control panels. Robust design handles vibration and temperature swings.
Retail & Kiosk Systems
POS terminals, vending machines, and ticket kiosks. Compact 6.2” size and integrated 5‑wire touch simplify integration.
Legacy Industrial Upgrades
Replacement for older Hitachi/KOE 6.2” panels in legacy equipment; same form/fit/function, 40‑pin parallel RGB interface compatibility.
