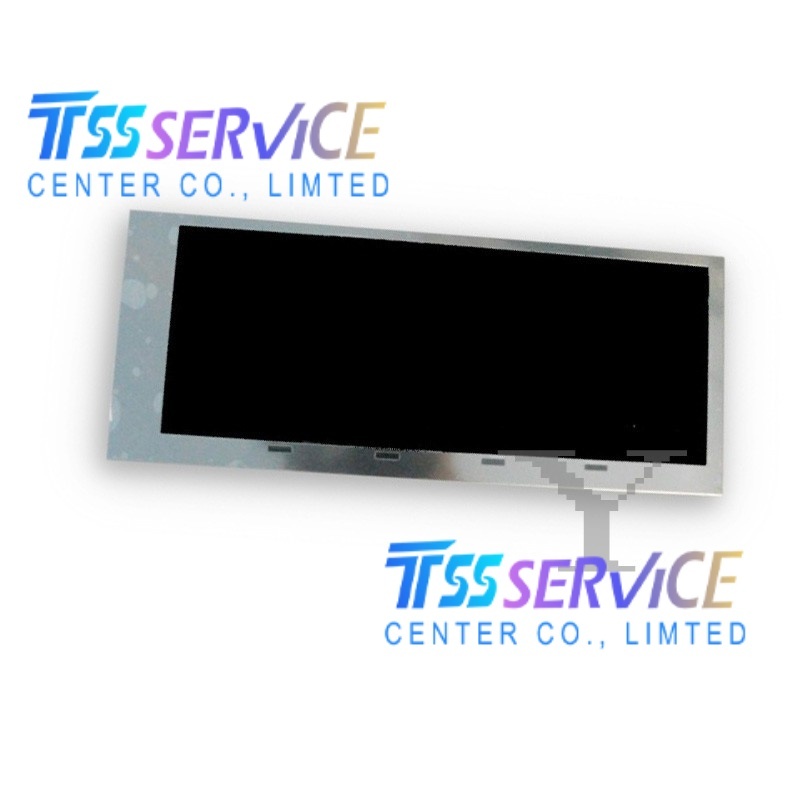

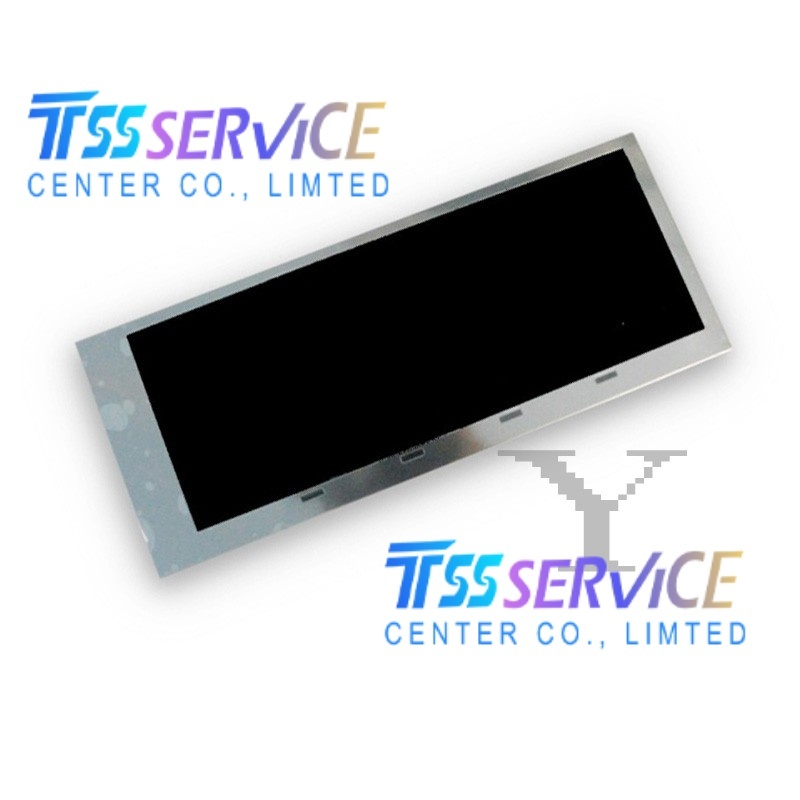

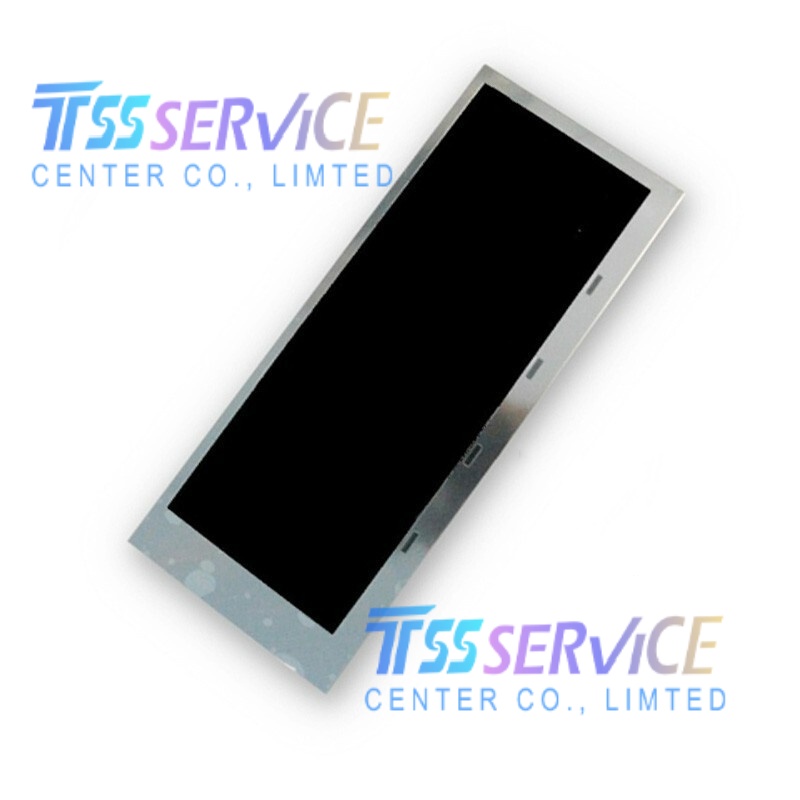

HITACHI 6.2 INCH 800×300 LCD Panel TX16D18VM2CAB For Industrial

Name: HITACHI 6.2 INCH 800×300 LCD Panel TX16D18VM2CAB For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX16D18VM2CAB
Price: 92 USD
Availability: InStock

SKU: TX16D18VM2CAB

Model No.: TX16D18VM2CAB
Screen Size: 6.2 inch
Screen Type: a-Si TFT-LCD, LCM
Number of dots: 800(RGB)×300, HSVGA, 8:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $92.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

HITACHI 6.2 INCH 800×300 LCD Panel TX16D18VM2CAB For Industrial

Parameter	Details
Model	TX16D18VM2CAB
Brand	HITACHI / KOE
Panel Size	6.2 inches (diagonal)
Resolution	800(RGB)×300, HSVGA, 8:3
Display Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive
Active Area	148.8 (W) × 53.76 (H) mm
Outline Dimension	173 (W) × 70 (H) × 7 (D) mm (max)
Brightness	350 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.)
Viewing Angle	70°/70°/50°/80° (L/R/U/D, CR≥5)
Response Time	45 ms (Tr+Td, Typ.)
Backlight	WLED (3S7P), 40,000 hrs lifespan, w/o driver
Interface	CMOS (1 ch, 6‑bit), 40‑pin connector
Operating Voltage	DC 3.3V (logic)
Operating Temperature	−20°C ~ +70°C
Storage Temperature	−30°C ~ +80°C
Weight	~110 g
RoHS Compliance	Yes

Applications

Industrial Control: Compact HMI, PLC terminals, factory automation, test & measurement equipment
Medical Devices: Portable diagnostic instruments, patient monitors, lab analyzers
Smart Terminals: POS systems, vending machines, access control panels, industrial touch monitors
Automotive & Transportation: Vehicle dashboards, marine displays, heavy machinery cabins
Consumer & Home Appliance: Industrial printers, energy meters, smart home control panels
