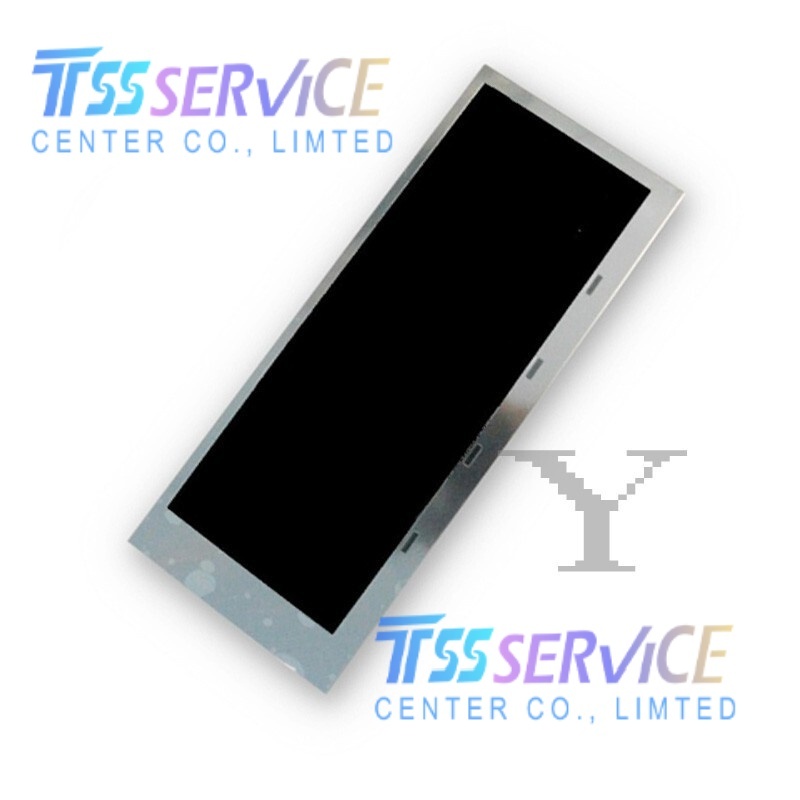

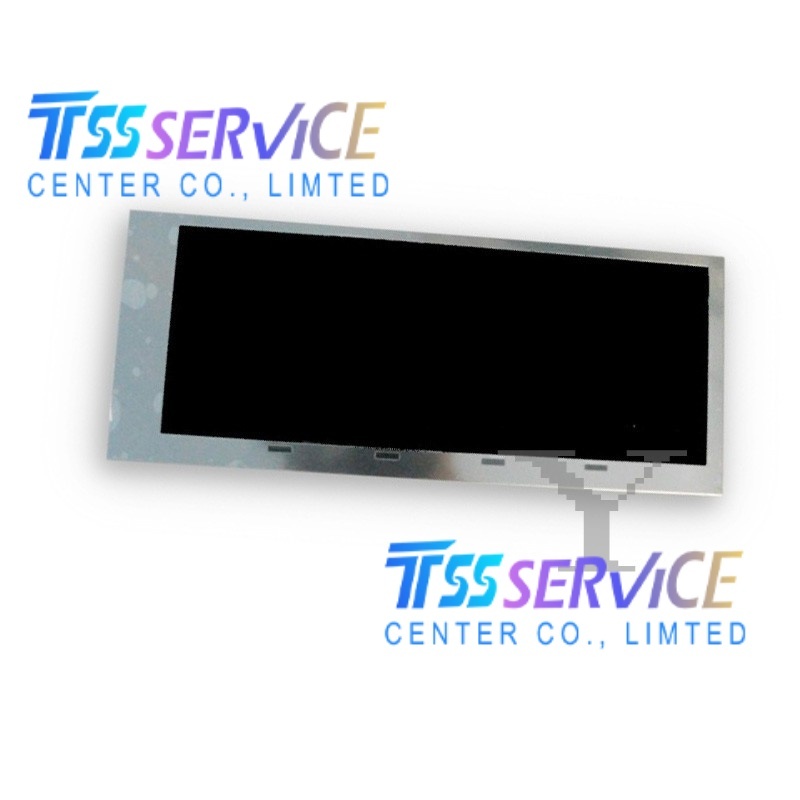

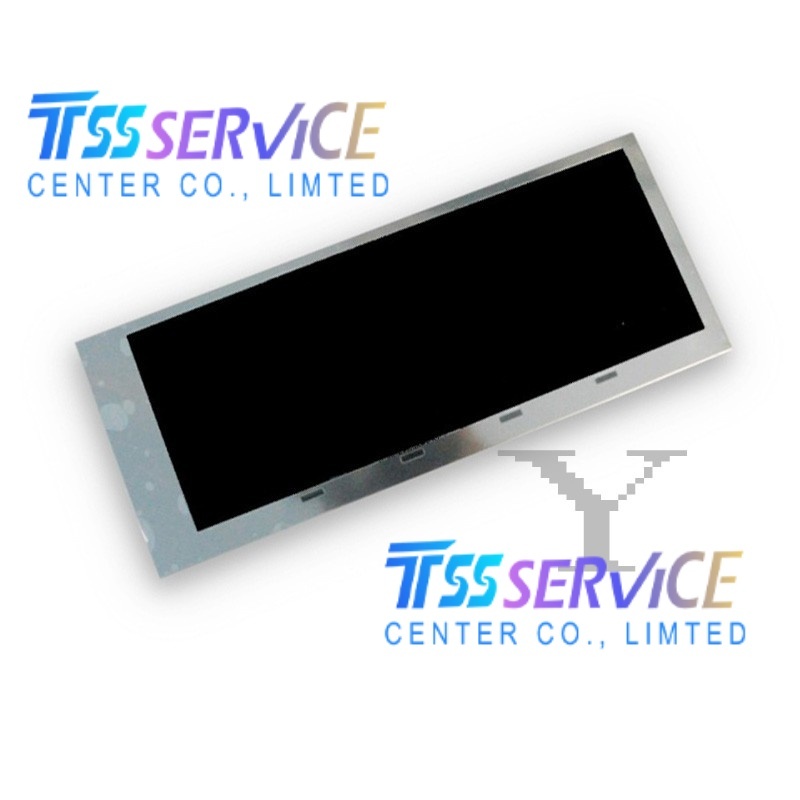

KOE /Hitachi TX16D208VM0BAA 6.3" 800×280 IPS Industrial TFT LCD Screen for HMI & Automation

Name: KOE /Hitachi TX16D208VM0BAA 6.3" 800×280 IPS Industrial TFT LCD Screen for HMI & Automation
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX16D208VM0BAA
Price: 192 USD
Availability: InStock

SKU: TX16D208VM0BAA

Model:TX16D208VM0BAA
Size: 6.3 inch
Resolution: 800(RGB)×280 (8:3)
Display Type: a-Si TFT-LCD, IPS

0.0 (0 Reviews)

0 Sold

~~$200.00~~ $192.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KOE /Hitachi TX16D208VM0BAA 6.3" 800×280 IPS Industrial TFT LCD Screen for HMI & Automation

Item	Parameter
Model	TX16D208VM0BAA
Brand	KOE (Hitachi)
Size	6.3 inch
Resolution	800(RGB)×280 (8:3)
Display Type	a-Si TFT-LCD, IPS (Normally Black)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85/85/85/85 (CR≥10)
Colors	262K
Backlight	WLED, 50,000 hrs lifespan, with driver
Interface	Parallel TTL (40-pin)
Frame Rate	60Hz
Power Supply	3.3V
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Surface	Matte, Hard coating (3H)
Active Area	144.0 × 50.4 mm
Outline Dim	158 × 64 × 6.5 mm
Touch Panel	Without
Warranty	12 Months
