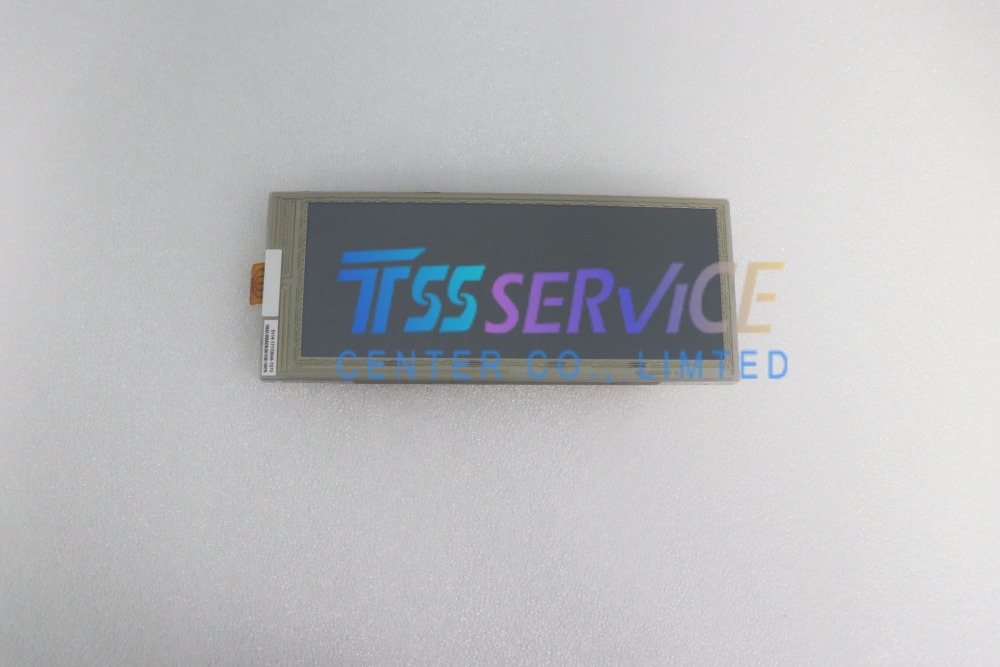

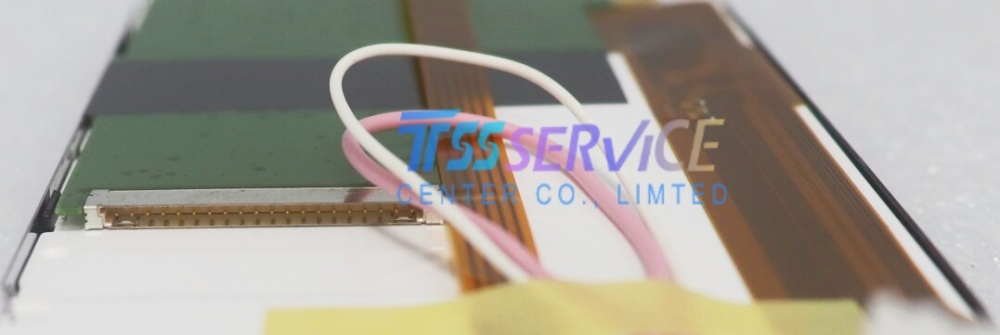

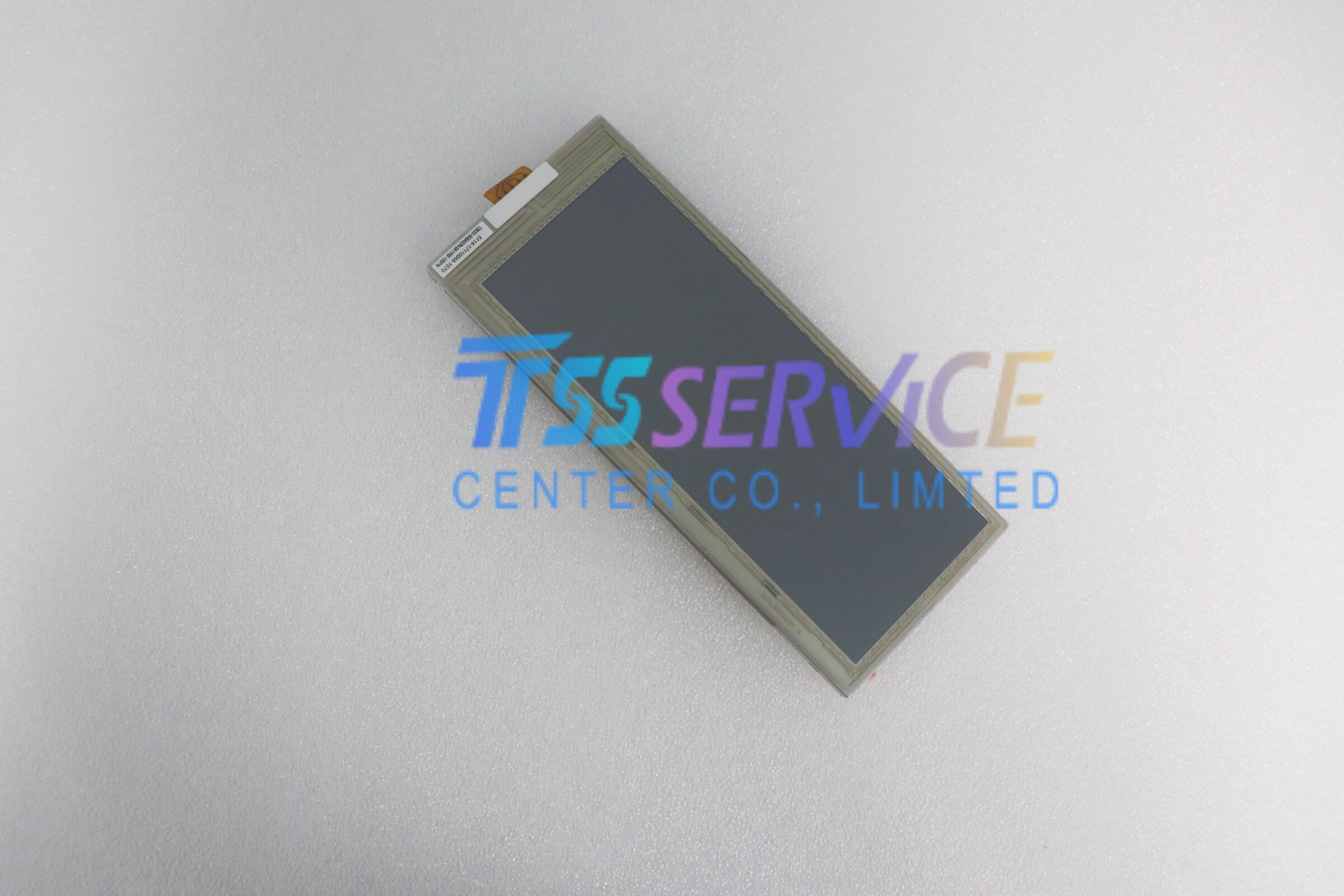

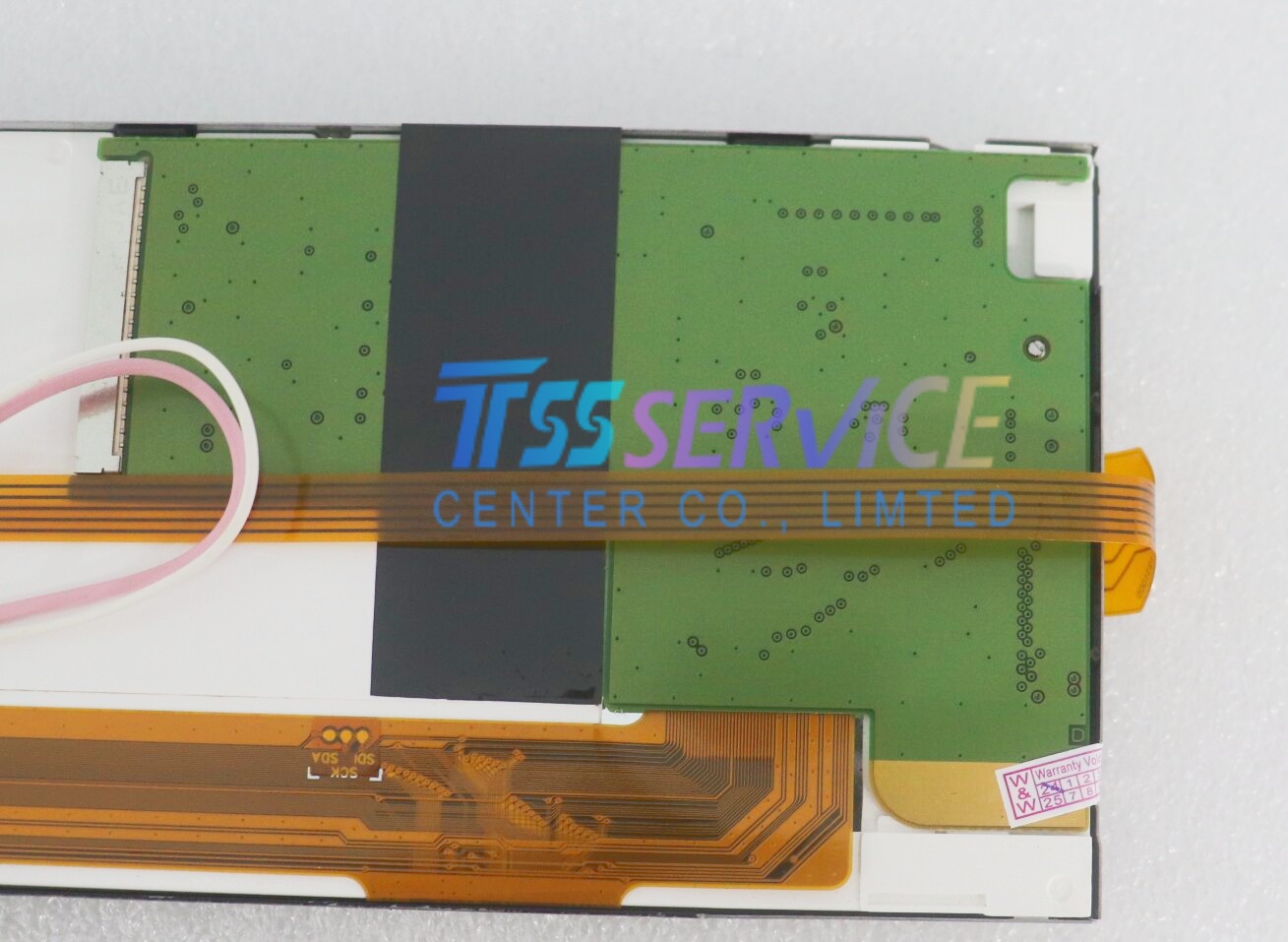

KOE /Hitachi 6.2 inch TX16D21VM5BQA LCD Panel Screen For Industrial

Name: KOE /Hitachi 6.2 inch TX16D21VM5BQA LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX16D21VM5BQA
Price: 125 USD
Availability: InStock

SKU: TX16D21VM5BQA

Model: TX16D21VM5BQA
Brand: KOE (Hitachi)
Size: 6.2 inches
Resolution: 640 × 240 pixels (HVGA)
Display Type: a-Si TFT-LCD, transmissive

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $125.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KOE /Hitachi 6.2 inch TX16D21VM5BQA LCD Panel Screen For Industrial

Parameter	Details
Model	TX16D21VM5BQA
Brand	KOE (Hitachi)
Size	6.2 inches
Resolution	640 × 240 pixels (HVGA)
Display Type	a-Si TFT-LCD, transmissive
Brightness	320 cd/m² (typical)
Contrast Ratio	400:1 (typical)
Viewing Angle	80°/80°/80°/80° (L/R/U/D)
Display Colors	262K (18-bit RGB)
Backlight	WLED, long lifespan
Interface	40-pin TTL (side connector)
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C
Active Area	148.8 × 53.76 mm
Outline Dimension	173 × 70 mm
Weight	~140 g

Application

Industrial Control Panels: For PLC/HMI in factory automation, production line monitoring, and machine control systems.
Medical Equipment: Used in patient monitors, diagnostic devices, and portable medical instruments requiring stable and clear displays.
Marine & Automotive: Suitable for shipborne terminals, vehicle-mounted displays, and outdoor navigation devices due to wide viewing angle and temperature tolerance.
Smart Home & Appliances: Applied in high-end smart control panels, industrial refrigeration equipment, and environmental monitoring systems.
Retail & Kiosks: For POS terminals, self-service vending machines, and information query terminals in public spaces.
