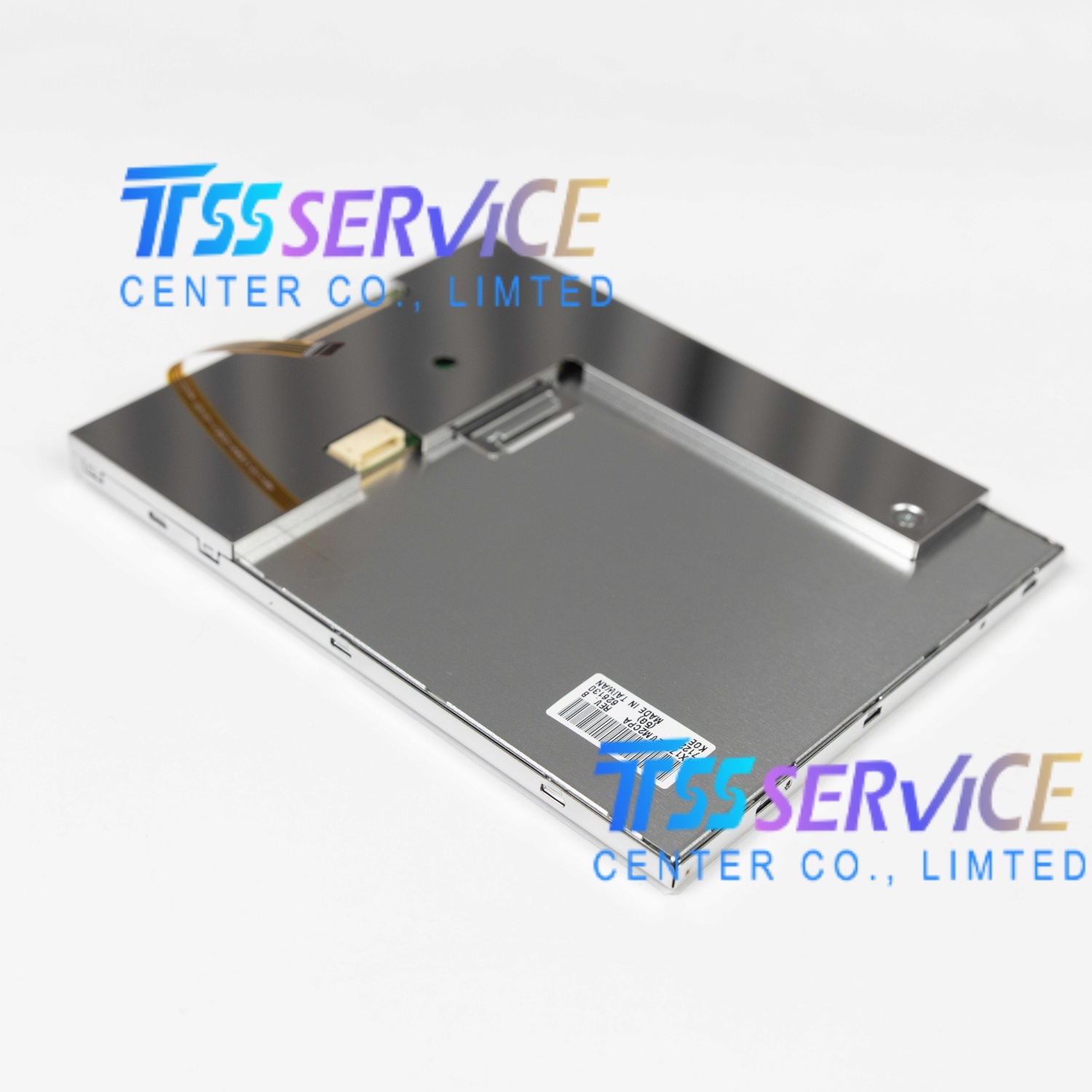

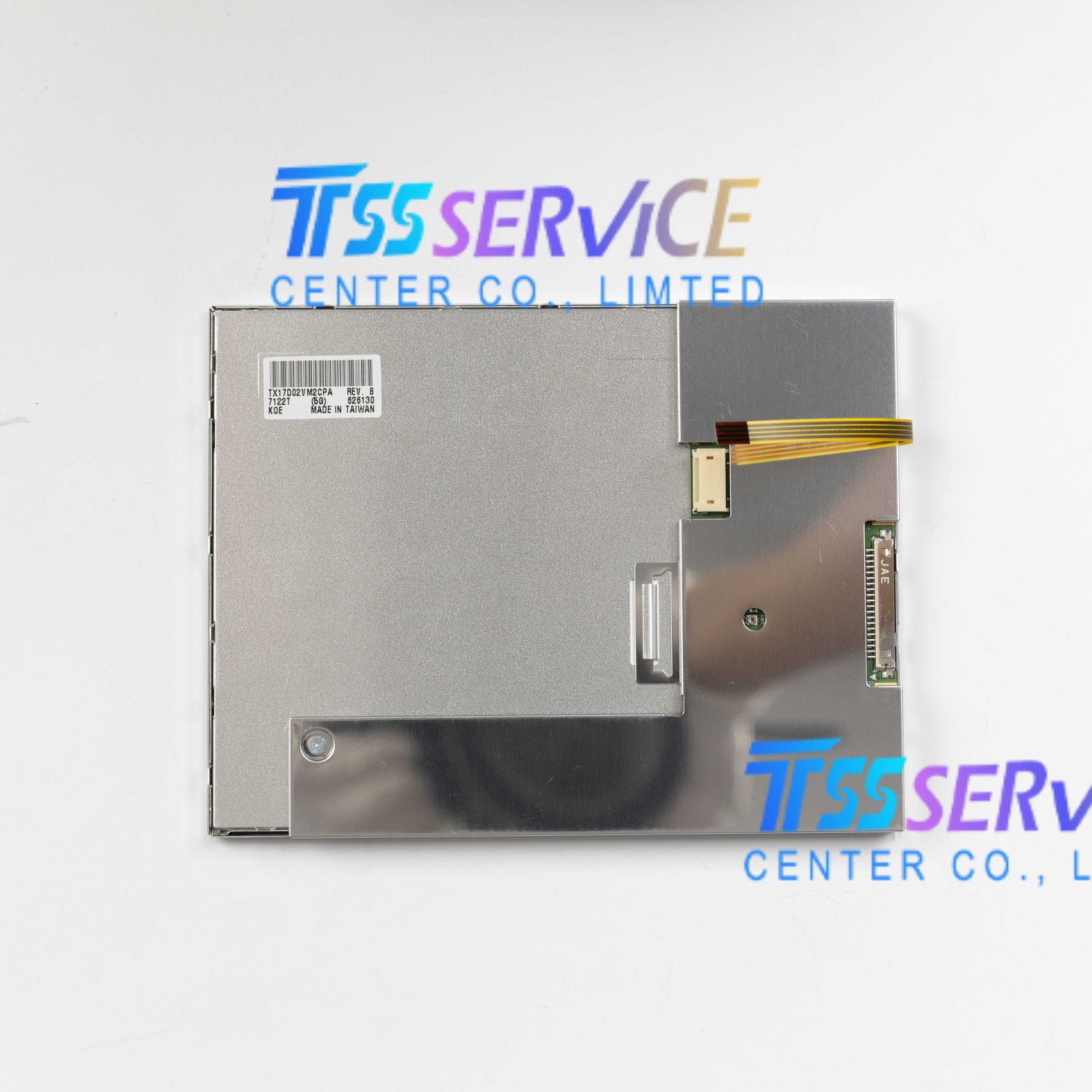

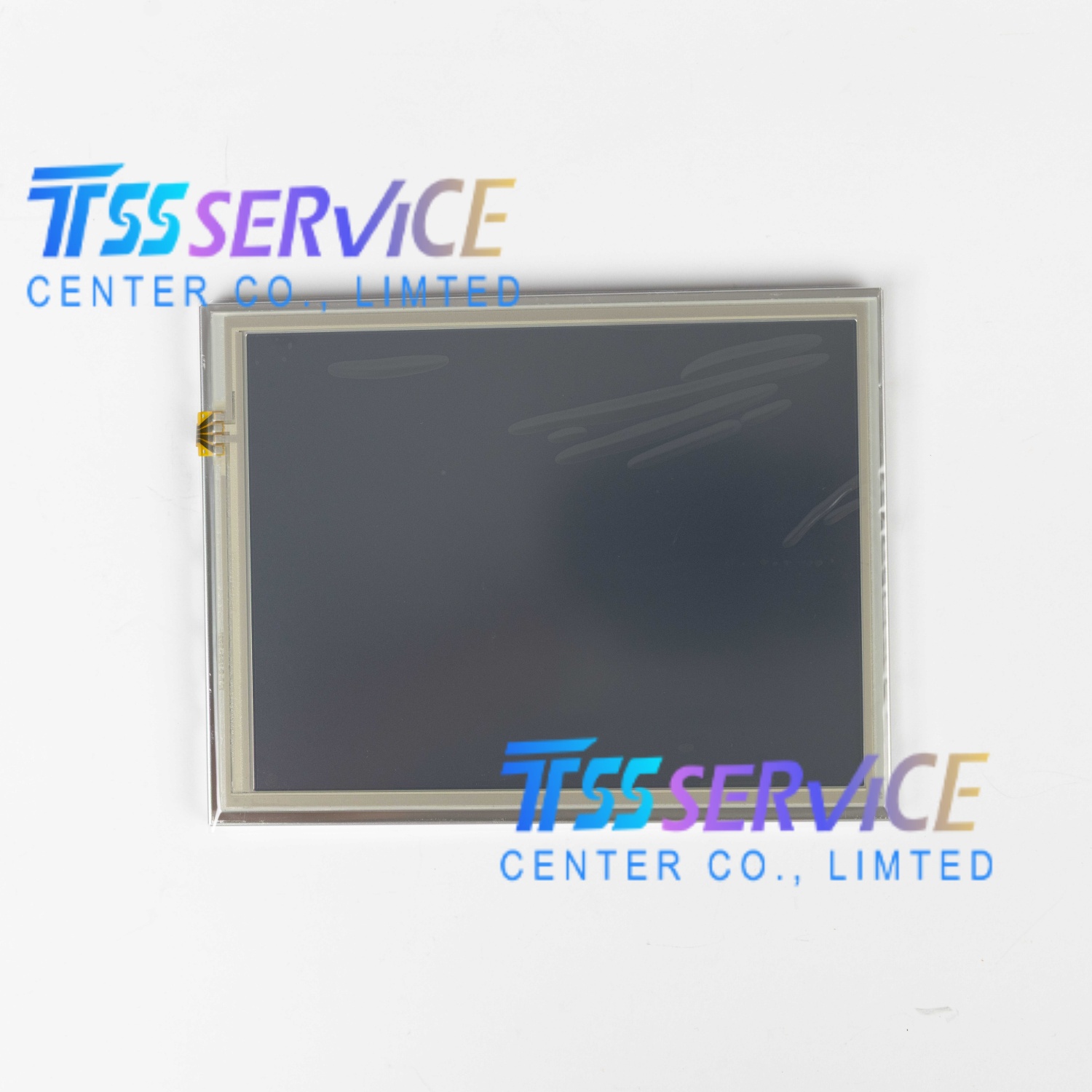

Model P/N: TX17D02VM2CPA
Diagonal Size: 6.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB) × 480 (VGA)
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Manufacturer | Hitachi / Japan Display Inc. - JDI |
| Part Number | TX17D02VM2CPA |
| Status | Discontinued |
| Display Type | a‑Si TFT‑LCD, Transmissive, Normally White |
| Diagonal Size | 6.5 inches |
| Resolution | 640(RGB) × 480 (VGA) |
| Active Area | 132.48(W)×99.36(H) mm |
| Pixel Format | RGB Vertical Stripe |
| Brightness | 480 cd/m² (Typical) |
| Contrast Ratio | 600:1 |
| Display Colors | 262K (6‑bit) |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Viewing Angle (CR≥10) | Horizontal: ±65°; Vertical: -65°/+55° |
| Backlight | White LED (WLED) |
| Backlight Lifetime | 50,000+ hours (Typical) |
| Interface | Parallel RGB (CMOS, 1‑channel, 6‑bit), 33‑pin connector |
| Input Voltage | 3.3 V (Nominal), |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Refresh Rate | 60 Hz |
| Compliance | RoHS compliant |
| Application Grade | Industrial |
