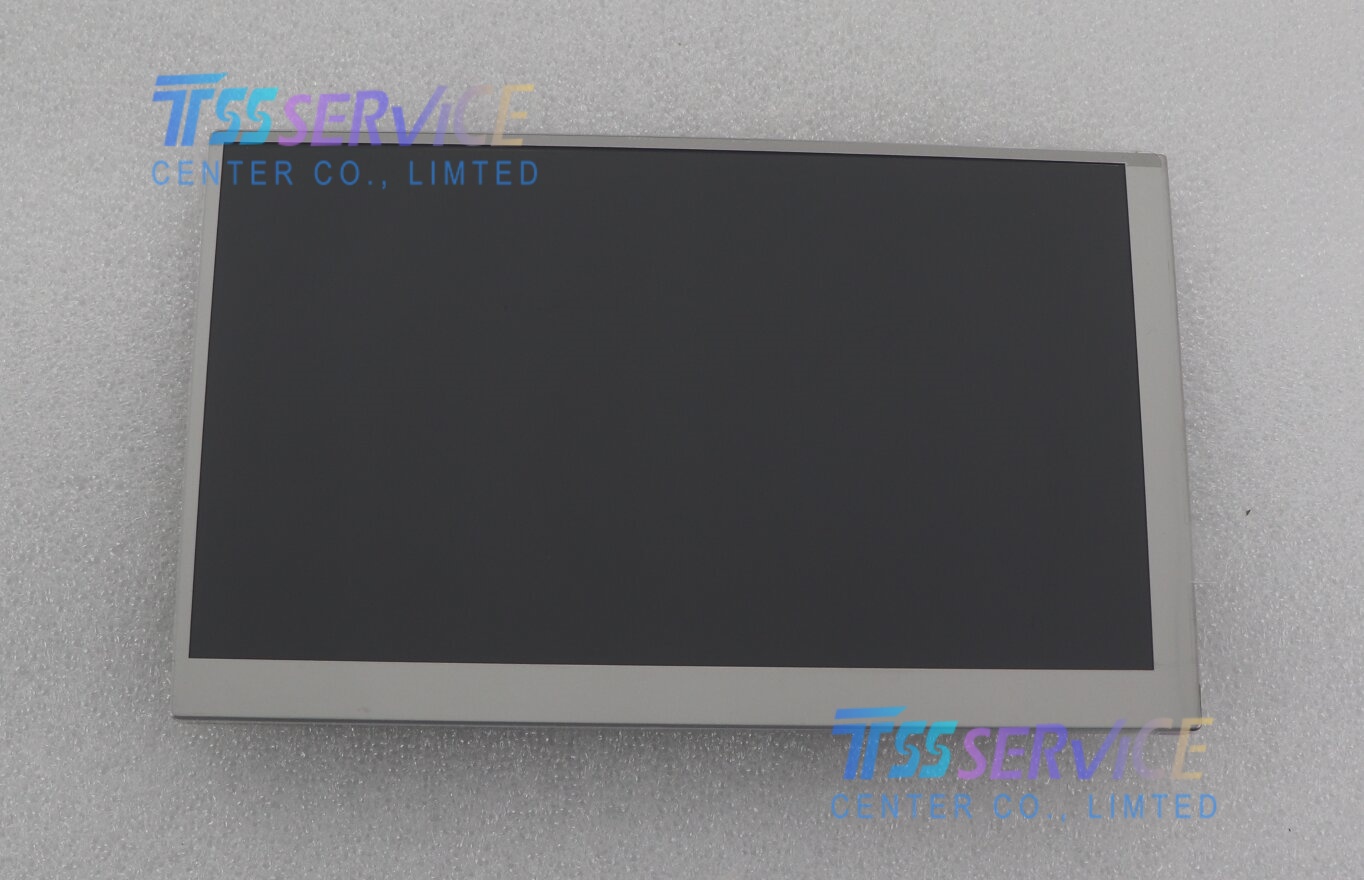

TX18D204VM0BAA 7.0inch 1920×1080 lcd display

Name: TX18D204VM0BAA 7.0inch 1920×1080 lcd display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX18D204VM0BAA
Price: 282 USD
Availability: InStock

SKU: TX18D204VM0BAA

Model P/N:TX18D204VM0BAA
Diagonal Size: 7.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 313PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$286.00~~ $282.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

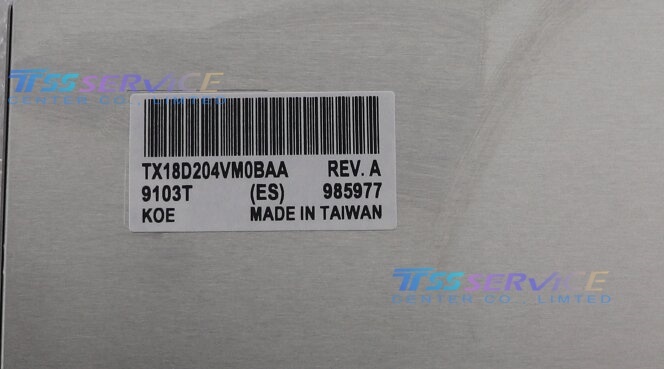

The TX18D204VM0BAA is a 7.0-inch Full HD (FHD) TFT-LCD display module manufactured by KOE , formerly Hitachi, now part of the JDI (Japan Display Inc.) group. This compact, high-resolution panel is specifically engineered for demanding industrial applications requiring authentic color reproduction, wide viewing angles, and a slim mechanical profile .

Category	Parameter	Specification / Note
General	Model	TX18D204VM0BAA
	Display Type	a-Si TFT LCD
	Screen Size	7.0 inches
Display	Resolution	1920(RGB)×1080
	Active Area	~155.52(W)×87.48(H) mm
	Brightness (Typ.)	600 cd/m² (Typ.)
	Contrast Ratio	800:1 (Typ.) (TM)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Interface	Interface Type	RGB Vertical Stripe
	Connector	LVDS (1 ch, 8-bit) , 20 pins Connector
Electrical	Logic Voltage (VCC)	3.3V
	Backlight Type	White LED, Edge Light or Direct Light
	Backlight Lifetime	≥40,000 hours (Typical)
Environmental	Operating Temperature	–30°C to +80°C (Extended Industrial Grade) [Confirm via Datasheet]
	Storage Temperature	–40°C to +85°C (Typical)
Application	Typical Use	Medical Imaging, Automotive Digital Cluster, High-End Industrial HMI, Professional AV Equipment

Applications

The TX18D204VM0BAA is optimized for professional and industrial applications requiring high resolution, excellent color accuracy, and slim form factor:

Application Area	Specific Use Cases
Medical Imaging Systems	Surgical displays, diagnostic monitors, patient monitoring equipment, PACS workstations
Security Monitors	Surveillance systems, access control displays, security control room monitors
Multimedia Monitors	Professional video monitoring, broadcast reference monitors, high-end gaming displays
Portable Test & Measurement	Handheld oscilloscopes, spectrum analyzers, portable data acquisition systems
Industrial Control	High-end HMIs, factory automation displays, process control panels
In-Vehicle Displays	Navigation systems, fleet management (where extended temperature range is required)
