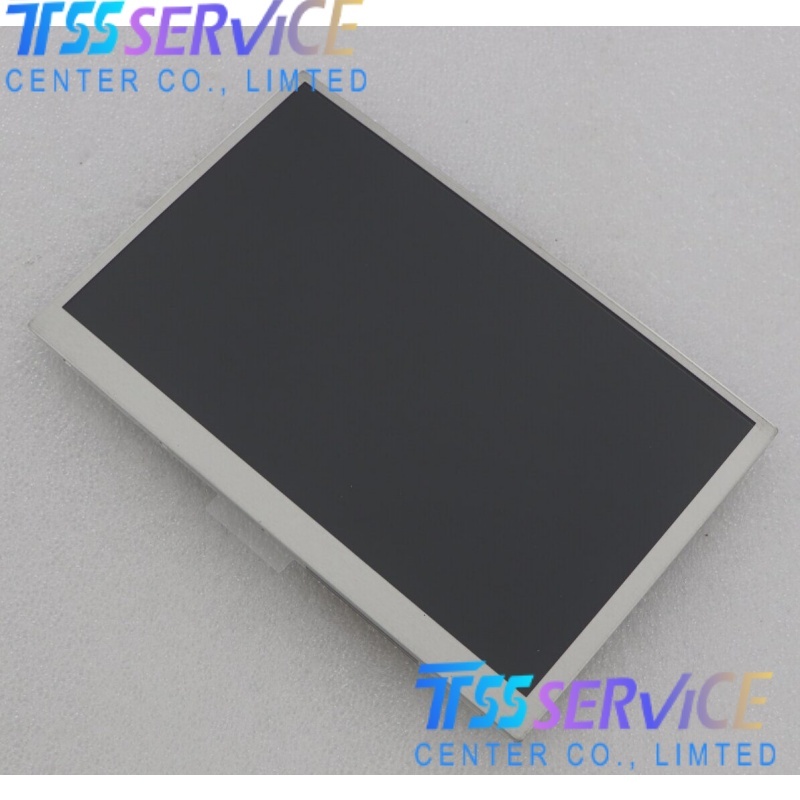

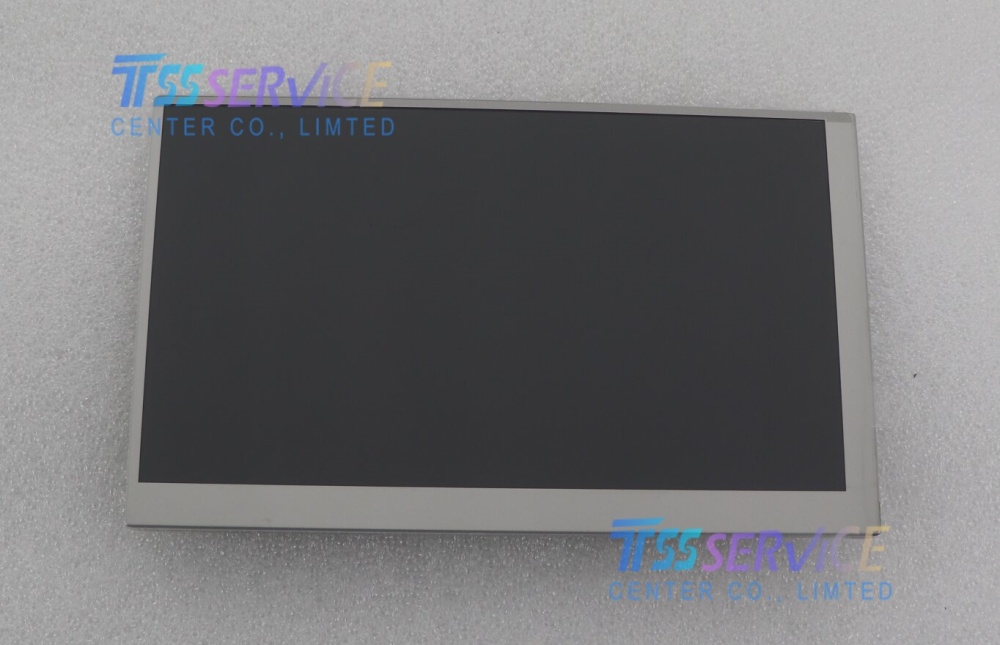

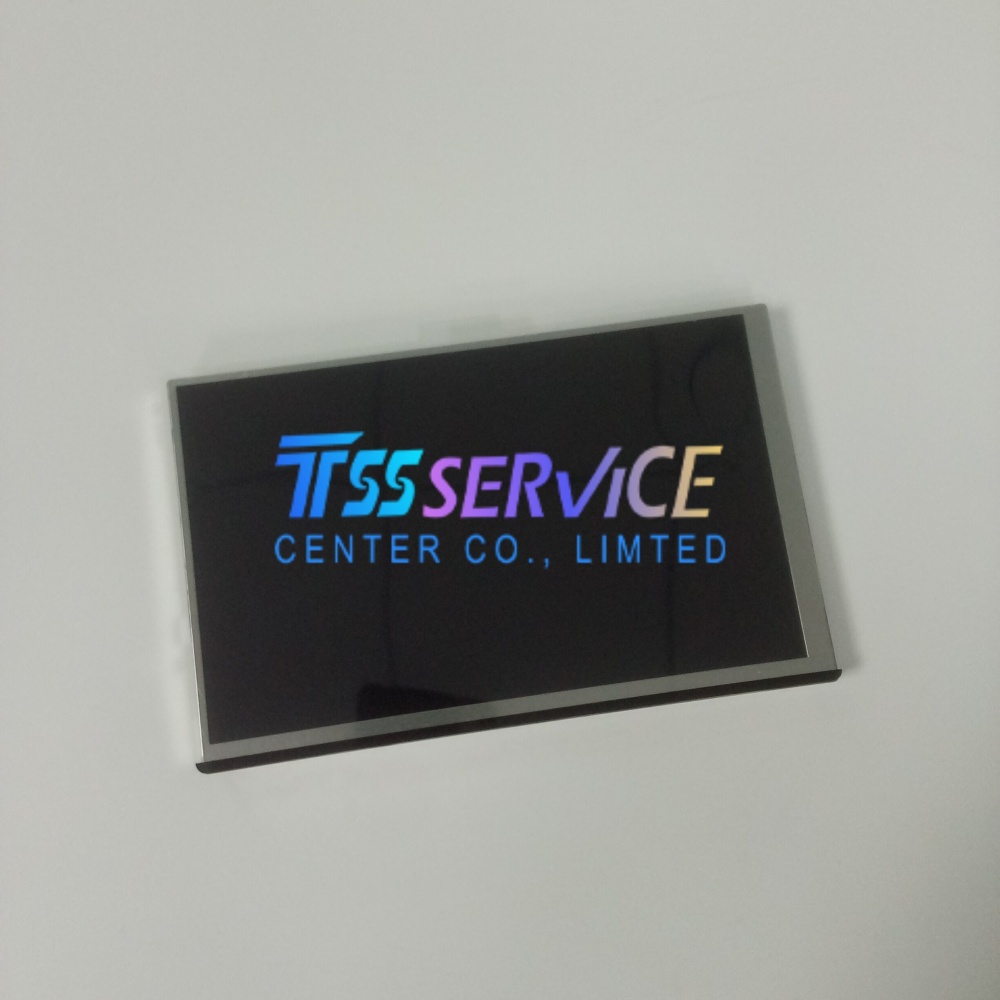

KOE TX18D204VM0BVA 7 inch 1920×1080 LCD Display Screen For Industrial

Name: KOE TX18D204VM0BVA 7 inch 1920×1080 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX18D204VM0BVA
Price: 493 USD
Availability: InStock

SKU: TX18D204VM0BVA

Model : TX18D204VM0BVA
Diagonal Size: 7.0 inch
Resolution: 1920 × 1080 (FHD), 313 PPI
Aspect Ratio: 16:9
Display Technology: LTPS TFT‑LCD, IPS, LCM

0.0 (0 Reviews)

0 Sold

~~$495.00~~ $493.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

KOE TX18D204VM0BVA 7 inch 1920×1080 LCD Display Screen For Industrial

Parameter	Specification
Brand / Model	KOE (Hitachi) TX18D204VM0BVA
Diagonal Size	7.0 inch
Resolution	1920 × 1080 (FHD), 313 PPI
Aspect Ratio	16:9
Display Type	LTPS TFT‑LCD, IPS, LCM
Brightness	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	85°/85°/85°/85° (L/R/U/D, CR≥10)
Color Depth	16.7M colors (8‑bit)
Backlight	WLED, 40K hrs lifespan, with driver
Interface	LVDS (1‑ch, 8‑bit), 20‑pin connector
Active Area (W×H)	155.52 × 87.48 mm
Outline Dimension (W×H×D)	178.8 × 115 × 9.2 mm (max)
Touch Screen	Projected Capacitive (PCAP)
Operating Temperature	−20 °C ~ +70 °C
Storage Temperature	−30 °C ~ +80 °C
RoHS Compliant	Yes

Applications

Medical Equipment: High-resolution diagnostic displays, patient monitoring systems, and medical imaging peripherals requiring sharp, accurate visuals.
Industrial HMI & Automation: Factory automation control panels, CNC machinery, PLC interfaces, and industrial all-in-one computers for production line monitoring.
Marine & Automotive: Shipborne navigation displays, in-vehicle infotainment screens, and ruggedized transportation terminals operating in harsh environments.
Retail & Kiosks: High-end POS terminals, self-service kiosks, digital signage, and vending machines needing vibrant, clear visuals.
Test & Measurement: Laboratory analysis instruments, industrial monitoring devices, and aerospace ground support equipment requiring reliable, wide-temperature performance.
