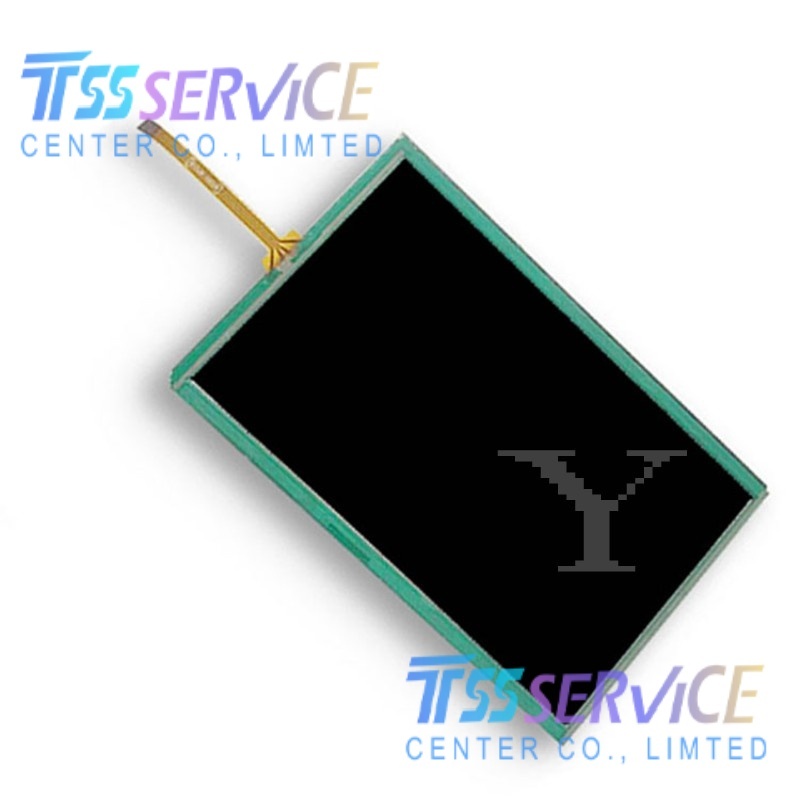

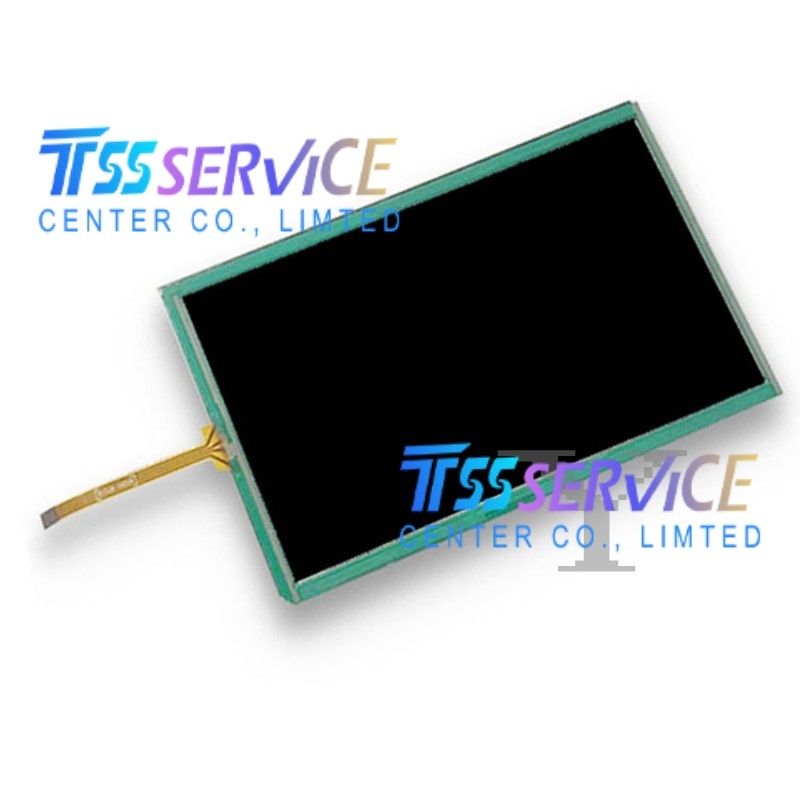

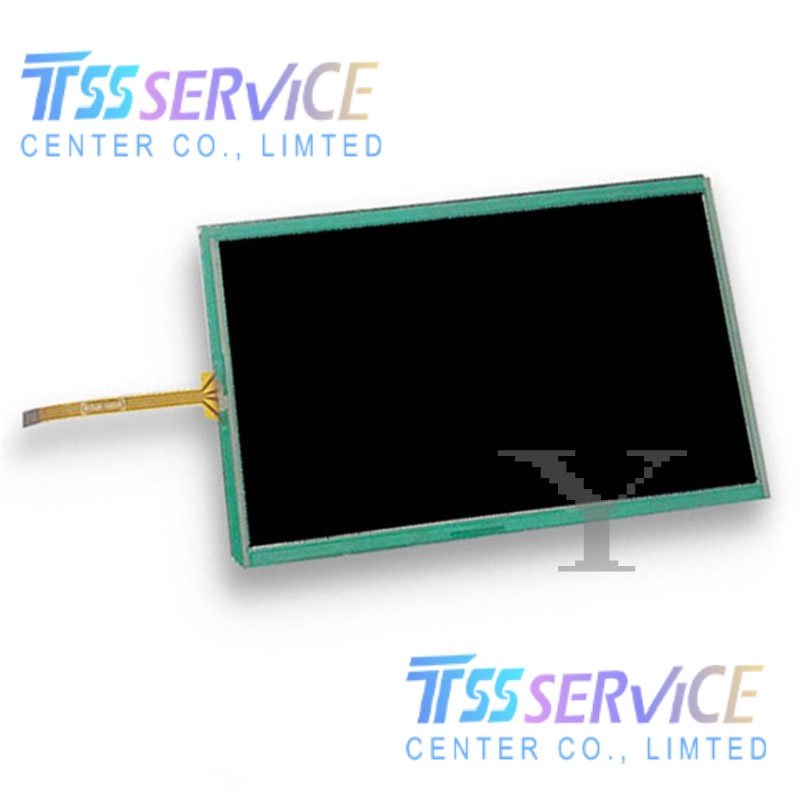

KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial

SKU: TX18D206VM0BXA
Model: TX18D206VM0BXA
Brand: KOE (Hitachi)
Size:  7 inches
Panel Type: a-Si TFT-LCD
Resolution:  800 × 480 (WVGA), 133PPI
0.0 (0 Reviews)
0 Sold
$237.00 $235.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
1/1
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
  • Description
KOE (Hitachi) TX18D206VM0BXA 7" WVGA TFT-LCD Panel For Industrial
Parameter Details
Model TX18D206VM0BXA
Brand KOE (Hitachi)
Size 7 inches
Panel Type a-Si TFT-LCD
Resolution 800 × 480 (WVGA), 133PPI
Brightness 700 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Viewing Angle 85/85/85/85 (CR≥10)
Display Colors 262K (6-bit RGB)
Display Area 152.4 × 91.44 mm
Outline Size 170(W)×113.3(H)×22(D) mm
Backlight WLED, 70,000 hours, with driver
Interface LVDS (1 ch 6-bit), 20 pins
Operating Temperature -30°C ~ +80°C
Storage Temperature -40°C ~ +90°C
Touchscreen Projected Capacitive (PCAP), multi-touch
Surface Treatment Anti-glare, Hard coating
Weight Approx. 300g
Vibration Resistance 5.0G

Applications

  • Industrial HMI & Control Panels: Factory automation, PLC, CNC machinery, robotic terminals.
  • Automotive Displays: Dashboard, infotainment, and rear-seat entertainment systems.
  • Outdoor Kiosks & Information Terminals: Sunlight-readable displays for ticketing, wayfinding, and outdoor monitoring.
  • Medical Equipment: Diagnostic devices, patient monitors, and medical instrumentation.
  • Rugged & Military Systems: Defense terminals and field-deployed control interfaces.
