Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
Packaging: Bubble pad+Paper box
| Parameter | Specification |
|---|---|

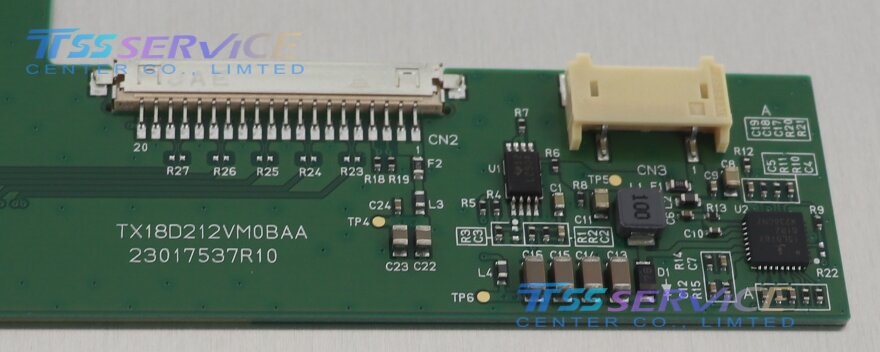

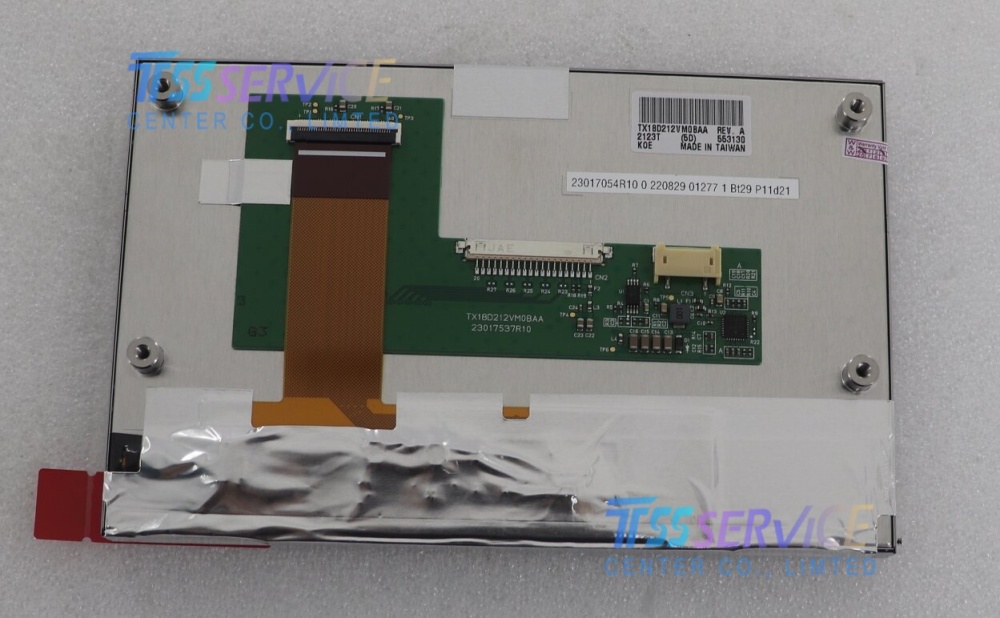

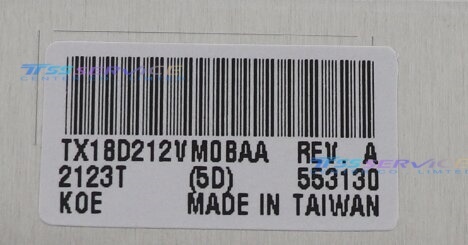

| Model Number | TX18D212VM0BAA |
| Manufacturer | KOE (Kyocera Optoelectronics) |
| Display Technology | LTPS (Low-Temperature Polycrystalline Silicon) TFT-LCD |

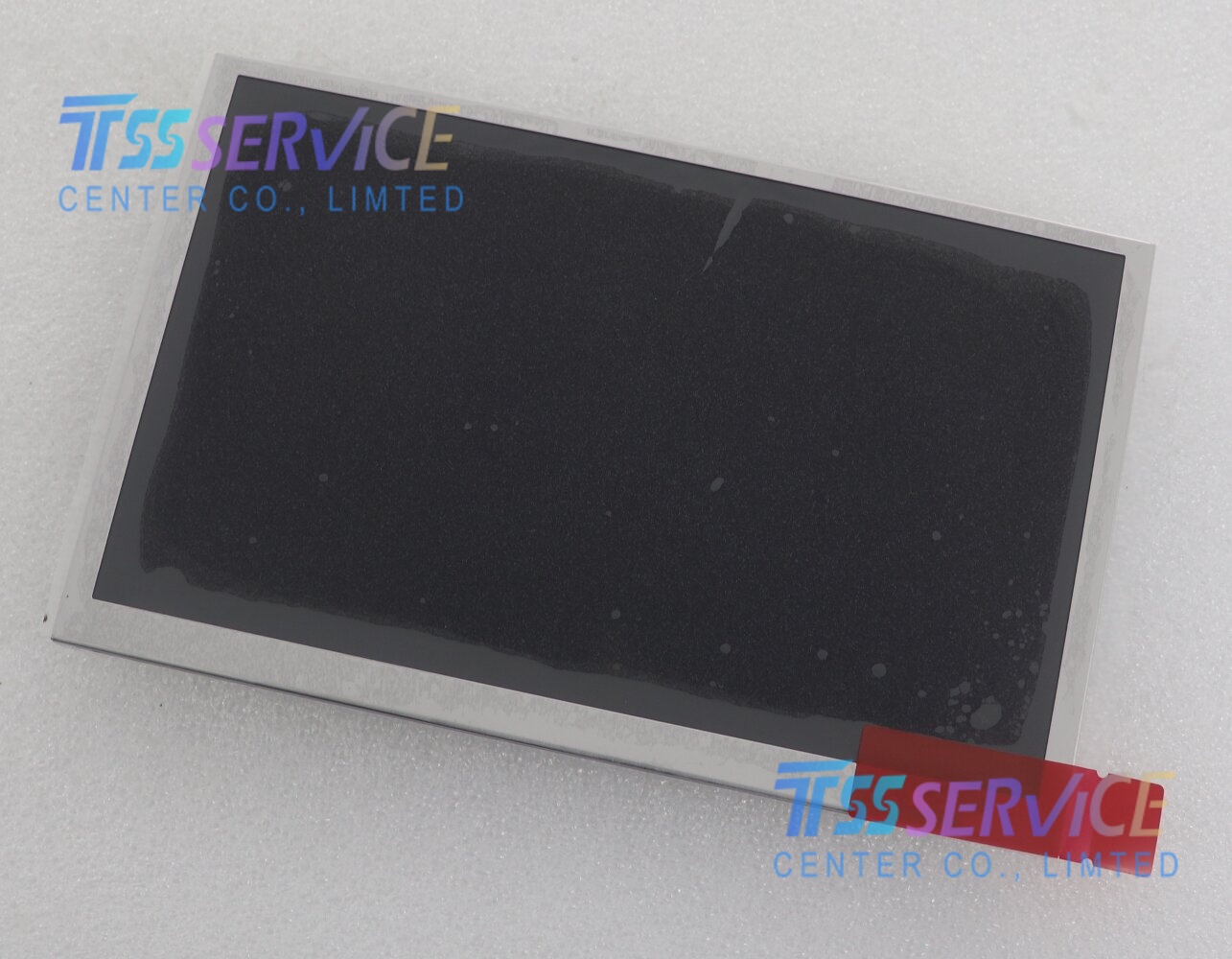

| Screen Size | 7.0 inches (Diagonal) |
| Resolution | 800 (RGB) × 480 pixels (WVGA) |
| Aspect Ratio | 16:9 |
| Active Area (AA) | 152.40 (W) × 91.44 (H) mm |
| Outline Dimensions | ~165.0 - 167.7 (W) × ~104.0 - 109.5 (H) × ~13.0 - 20.0 (D) mm (Varies by bezel/connector) |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 262K colors (6-bit per color) / 16.7M (with dithering) |
| Brightness | 1000 cd/m² (Typical) - Ultra-High Brightness for Direct Sunlight |
| Contrast Ratio | 800:1 (Typical) - Enhanced by LTPS aperture ratio |
| Viewing Angle | 85/85/85/85 (Min.) (Left/Right/Up/Down) |
| Backlight Type | White LED (WLED), Side-light type |
| Backlight Driver | Integrated (Built-in LED Driver) |
| Interface Type | CMOS (TTL) Parallel RGB |
| Signal Configuration | 1 channel, 6-bit (RGB666) |

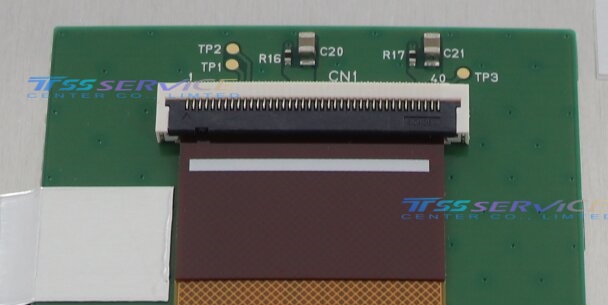

| Connector | 40-pin or 50-pin FPC Connector (Pitch 0.5mm typical) |
| Power Supply Voltage | 3.3V (Logic), Backlight voltage varies (typically 12V-24V) |
| Operating Temperature | -30°C to +80°C (Wide Temperature Industrial/Automotive Grade) |
| Storage Temperature | -40°C to +90°C |
| Vibration Resistance | 5.0G (49.0 m/s²) |
| Special Features | Image Flip (H/V), High Aperture Ratio, Low Power Consumption, Anti-Glare Treatment |
| RoHS / REACH | Compliant |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
