| Parameter | Specification (Estimated/Typical) | Description |
|---|---|---|
| Manufacturer | KOE (Kristal Optronics) | Formerly Hitachi Displays |

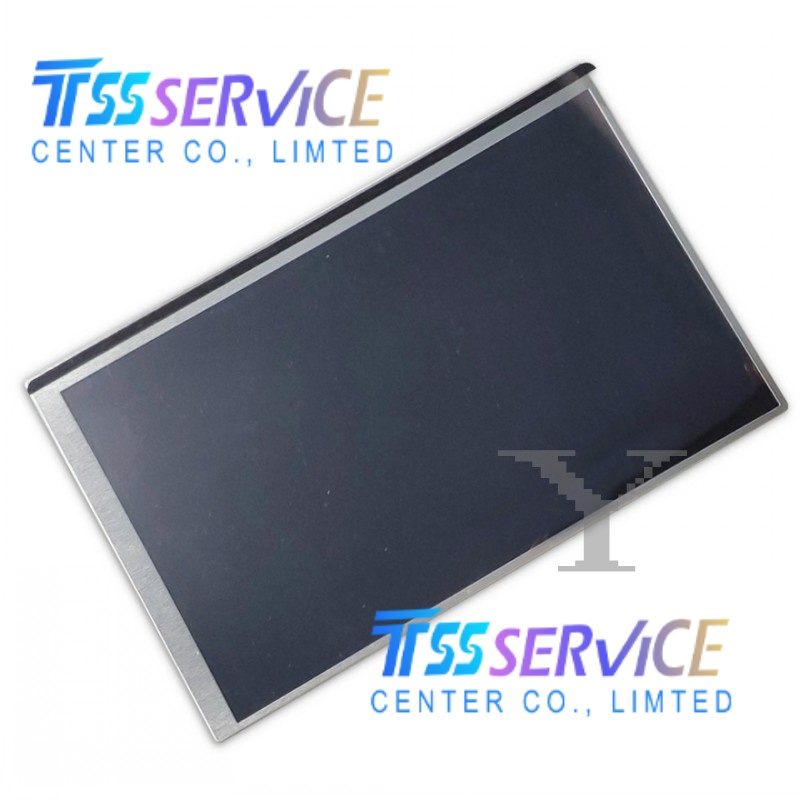

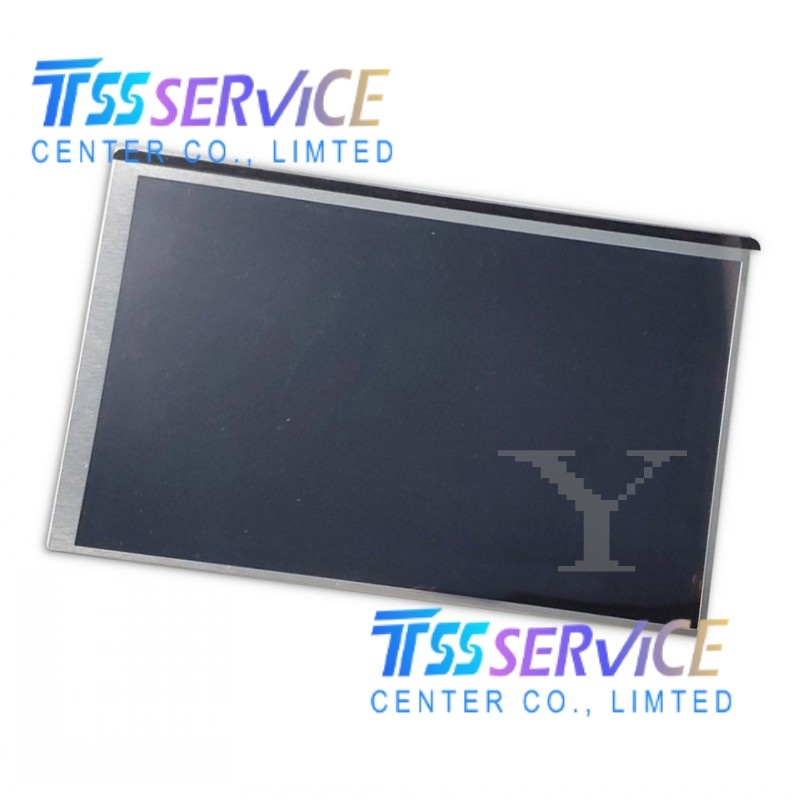

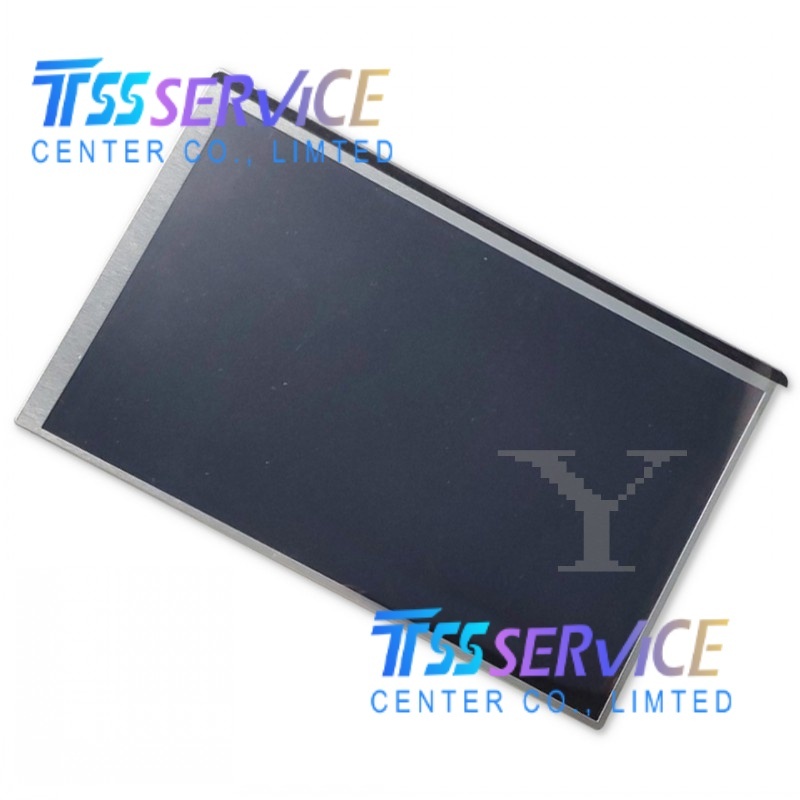

| Model Number | TX18D45VM5BAA | Industrial TFT-LCD Module |
| Display Size | 7.0 inch (Diagonal) | 16:9 Aspect Ratio (Typical for D45 series) |
| Resolution | 800 (RGB) × 480 (WVGA) | Standard for 7" industrial panels |
| Pixel Pitch | ~0.1905 mm (H) × 0.1905 mm (V) | Calculated based on 7" WVGA |
| Active Area | 152.4 × 91.44 mm | Visible screen dimensions |
| Outline Dimension | ~165.0 × 106.0 × 8.3 mm | Approximate module size (W×H×D) |
| Panel Type | a-Si TFT-LCD | Transmissive, Active Matrix |
| Brightness | 600 ~ 1000 cd/m² (Typ.) | High brightness (Specific "5" bin may indicate higher end) |
| Contrast Ratio | 700:1 ~ 1000:1 (Typ.) | High contrast for clear visibility |
| Viewing Angle | 80/80/80/80 (Min.) | Wide viewing angle (Left/Right/Up/Down) at CR≥10 |
| Color Support | 262K (6-bit) or 16.7M (8-bit) | Depends on specific driver configuration |
| Interface | LVDS (Low Voltage Differential Signaling) | 1 channel, 24-bit or 18-bit data |
| Backlight Type | WLED (White LED) | Edge-lit, long lifespan (>50,000 hours) |
| Backlight Driver | Integrated or External | "VM" usually implies module with driver board |
| Power Supply | 3.3V (Logic), 12-24V (Backlight) | Standard industrial voltage levels |
| Operating Temp. | -30°C to +85°C (Wide) | "BAA" suffix often denotes wide temperature range |
| Storage Temp. | -40°C to +90°C | Safe storage range |
| Touch Panel | None (Open Frame) | Unless specified as a bonded assembly |
| RoHS/REACH | Compliant | Environmentally friendly materials |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
