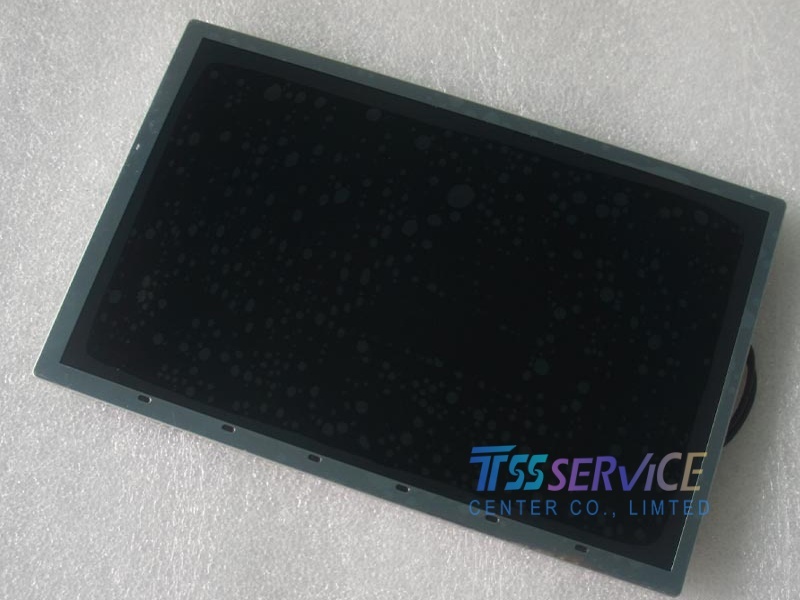

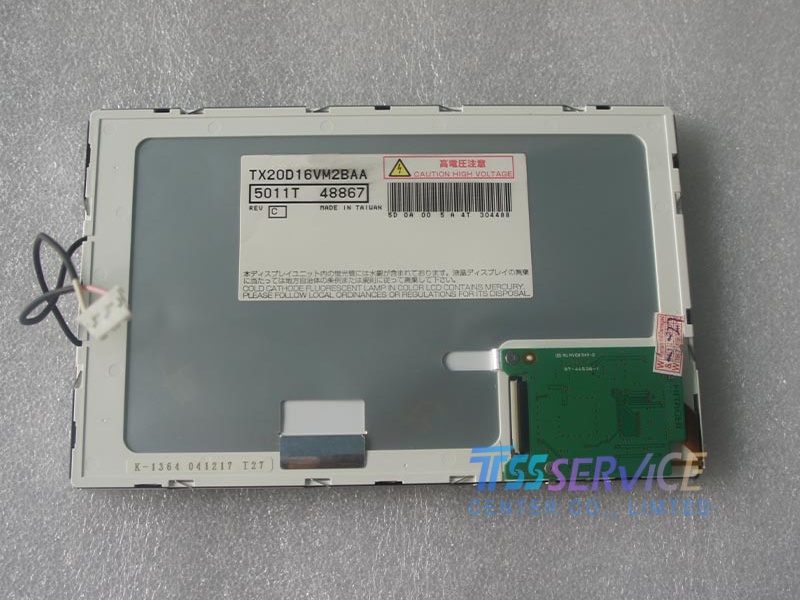

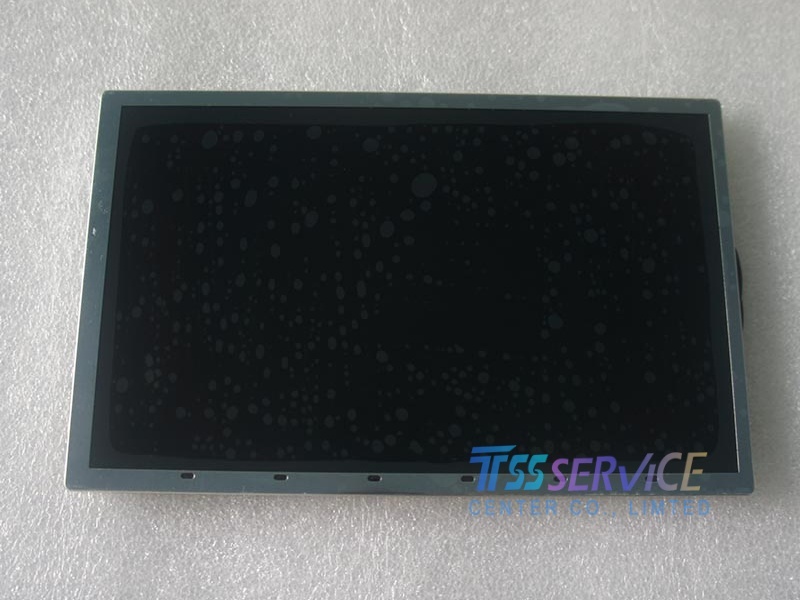

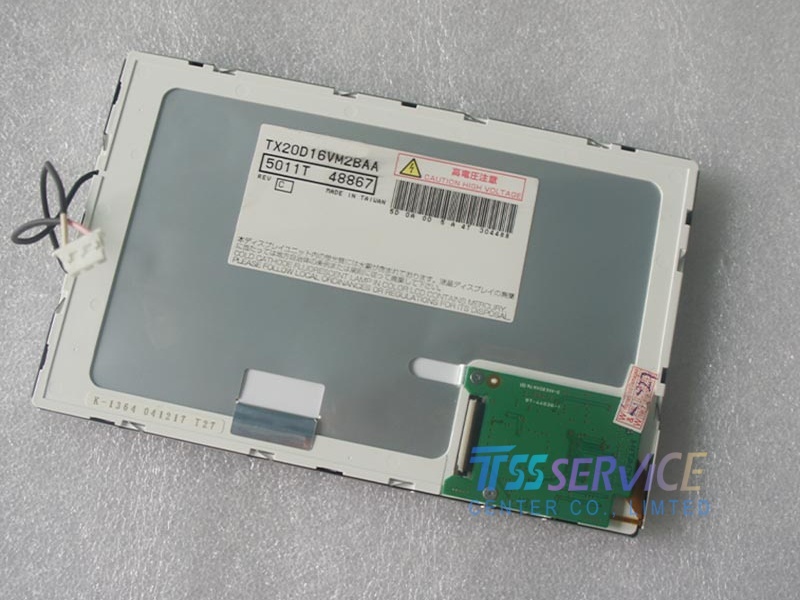

8.0inch 800×480 Lcd Panel TX20D16VM2BAA for KOE/HITACHI

Name: 8.0inch 800×480 Lcd Panel TX20D16VM2BAA for KOE/HITACHI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TX20D16VM2BAA
Price: 66 USD
Availability: InStock

SKU: TX20D16VM2BAA

1，Condition: New，Grade A

2，Description: TX20D16VM2BAA 8.0 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$68.00~~ $66.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TX20D16VM2BAA is a high-quality 8.0-inch TFT (Thin Film Transistor) liquid crystal display module designed for applications requiring a bright, clear, and reliable visual interface. It features a resolution of 800 (RGB) × 480 pixels, providing sharp and detailed images.

Parameter	Specification
Model	TX20D16VM2BAA
Display Type	a-Si TFT LCD, Normally White
Screen Size	8.0 inches
Active Area	174(W)×104.4(H) mm
Resolution	800(RGB)×480, WVGA 116PPI
Pixel Arrangement	RGB Vertical Stripe
Display Colors	262K / 16.7M (depends on driver IC)
Brightness (Typ.)	350 cd/m² (Typ.)
Contrast Ratio (Typ.)	200:1 (Typ.) (TM)
Viewing Angle (CR≥10)	50/50/50/50 (Min.)(CR≥10)
Surface Treatment	Anti-Glare, Hard Coating (3H)
Backlight Type	CCFL
Interface (Common)	CMOS (1 ch, 6-bit) , 40 pins Connector
Module Power (Typ.)	3.3V / 5.0V (Logic), ~12V-20V (Backlight) *
Operating Temperature	-20 ~ 70 °C

Typical Applications

The combination of rugged construction, adequate brightness, and reliable performance makes the TX20D16VM2BAA suitable for various industrial applications, primarily in legacy systems:

Application Area	Specific Use Cases
Industrial Control Systems	HMI panels, PLC terminals, factory automation equipment, CNC machine displays
Test & Measurement Equipment	Oscilloscopes, spectrum analyzers, data acquisition systems
Medical Equipment	Patient monitoring systems, diagnostic displays, medical carts
Gaming & Amusement	Arcade machines, slot machines, gaming terminals
Public Information Displays	Kiosks, wayfinding systems, point-of-sale (POS) terminals
Transportation	Railway station information boards, onboard entertainment systems

The industrial designation and rugged specifications make it particularly suitable for applications requiring reliable operation in challenging environmental conditions.
