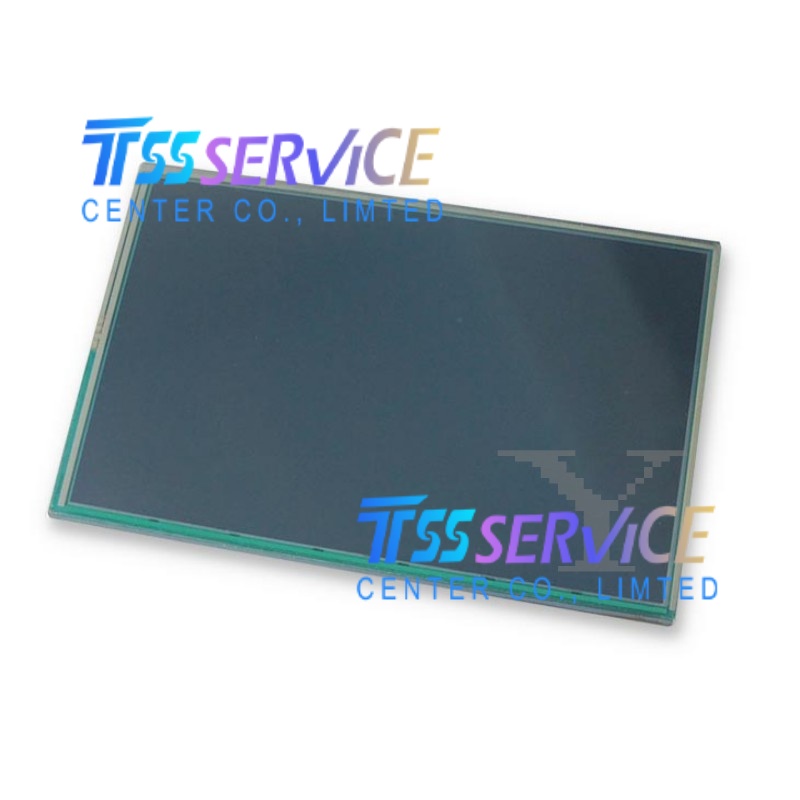

KOE/JDI/HITACH 8.0 inch LCD Display Panel TX20D16VM2BBA for Industrial NEW
| Category |
Parameter |
Specification Details |
| General Info |
Model Number |
TX20D16VM2BBA |
|
Manufacturer |
Hitachi / KOE |
|
Panel Type |
a-Si TFT-LCD, Transmissive |
|
Display Size |
8.0 Inch (Diagonal) |
|
Active Area |
170.4 (W) × 127.8 (H) mm |
|
Outline Size |
~192.0 (W) × 151.0 (H) × ~6.5 (D) mm (Typical) |
| Resolution |
Pixel Resolution |
800 (RGB) × 480 (WVGA) |
|
Pixel Pitch |
0.213 (W) × 0.213 (H) mm |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Color Depth |
262K Colors (6-bit) or 16.7M (with FRC) |
| Optical |
Brightness |
350 ~ 400 cd/m² (Typical) |
|
Contrast Ratio |
200:1 ~ 300:1 (Typical, TN Mode) |
|
Viewing Angle |
50/50/50/50 (Min.) or 60/60/40/60 (Typ.)
(Left/Right/Up/Down, CR≥10) |
|
Response Time |
20ms (Typ.) / 10ms (Typ.) (Tr/Td) |
|
Surface Treat. |
Anti-Glare (Matte) or Glossy (Depends on sub-model) |
| Electrical |
Interface |
CMOS / TTL (Single Channel, 6-bit) |
|
Connector |
Hirose DF14 or similar (e.g., 30-pin or 33-pin) |
|
Supply Voltage |
3.3V (Logic Power) |
|
Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp) - 1 Lamp |
|
Backlight Voltage |
High Voltage AC (Requires Inverter) |
| Environmental |
Operating Temp |
-20°C to +70°C |
|
Storage Temp |
-30°C to +80°C |
|
Reliability |
Designed for 24/7 continuous operation |
