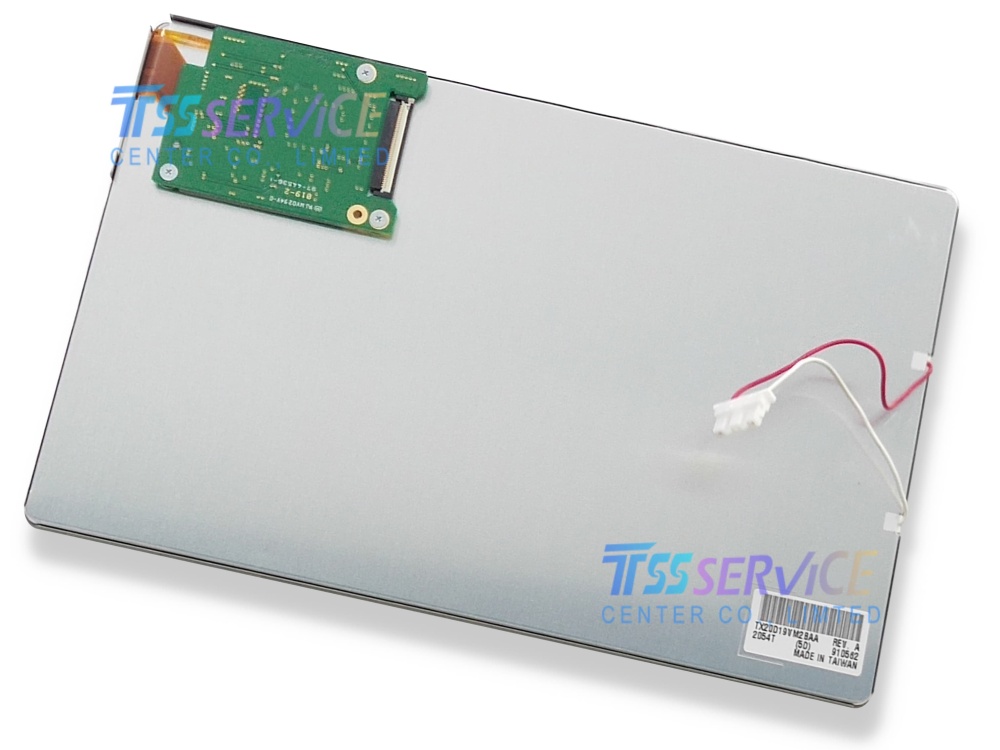

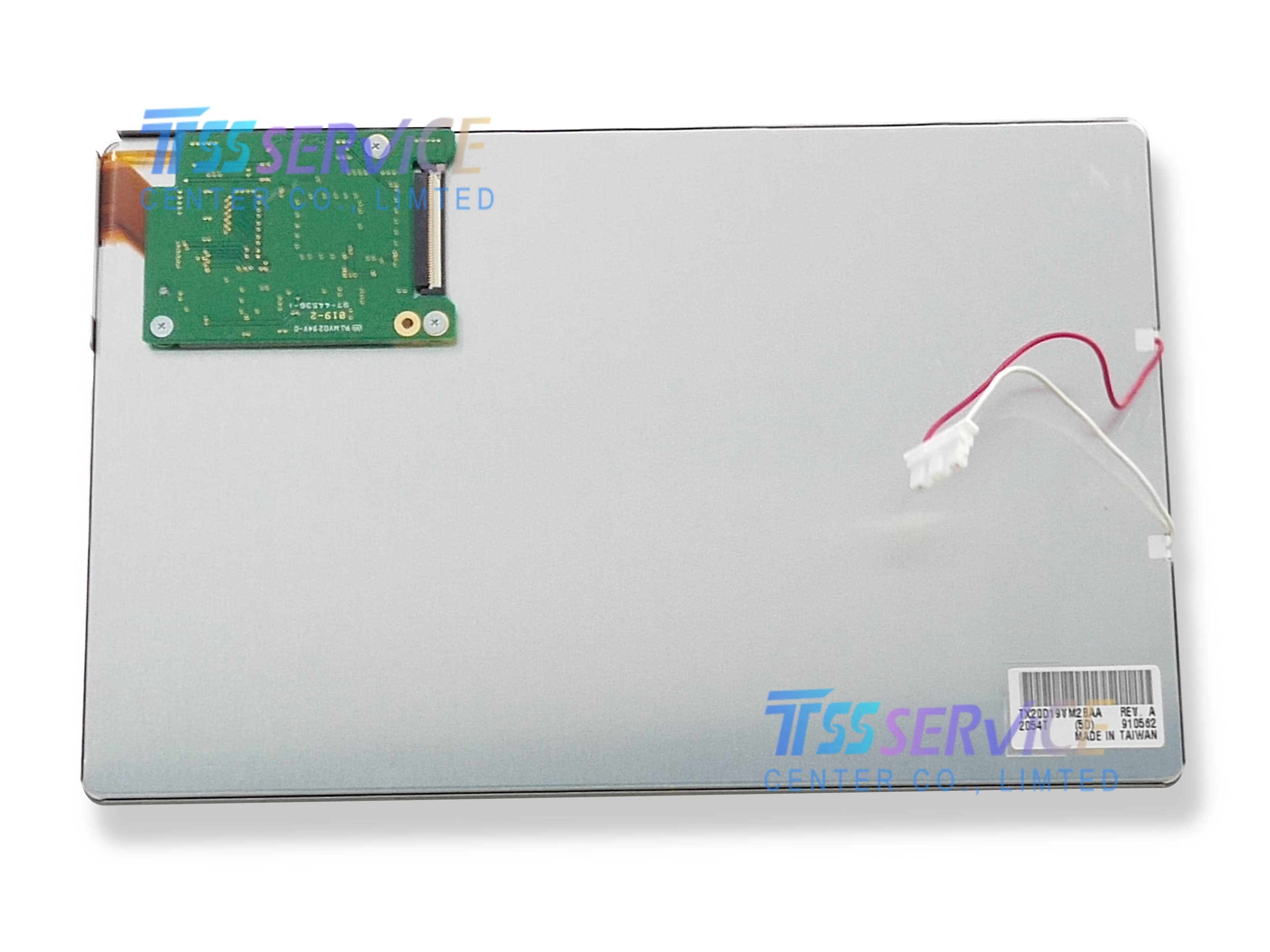

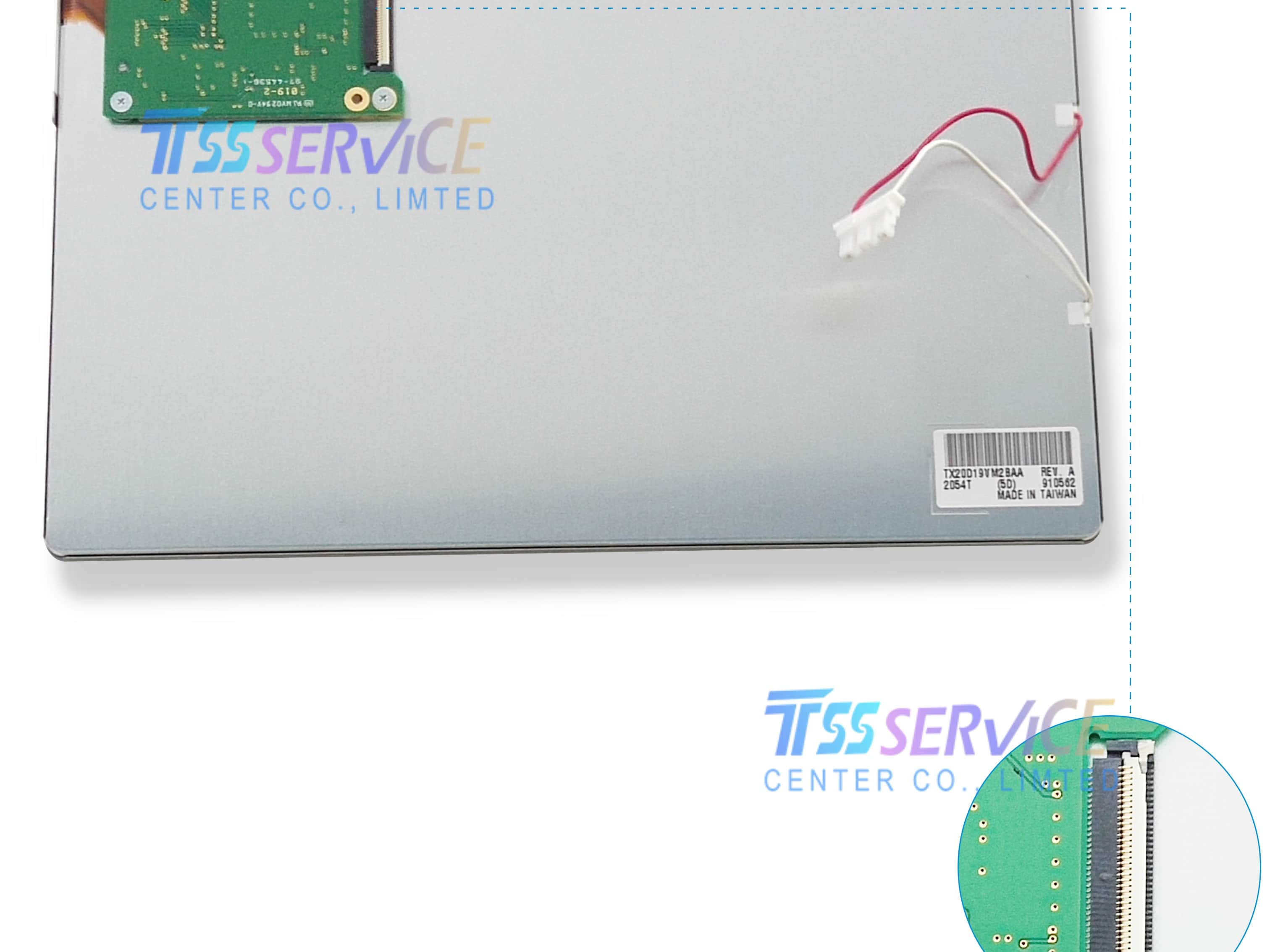

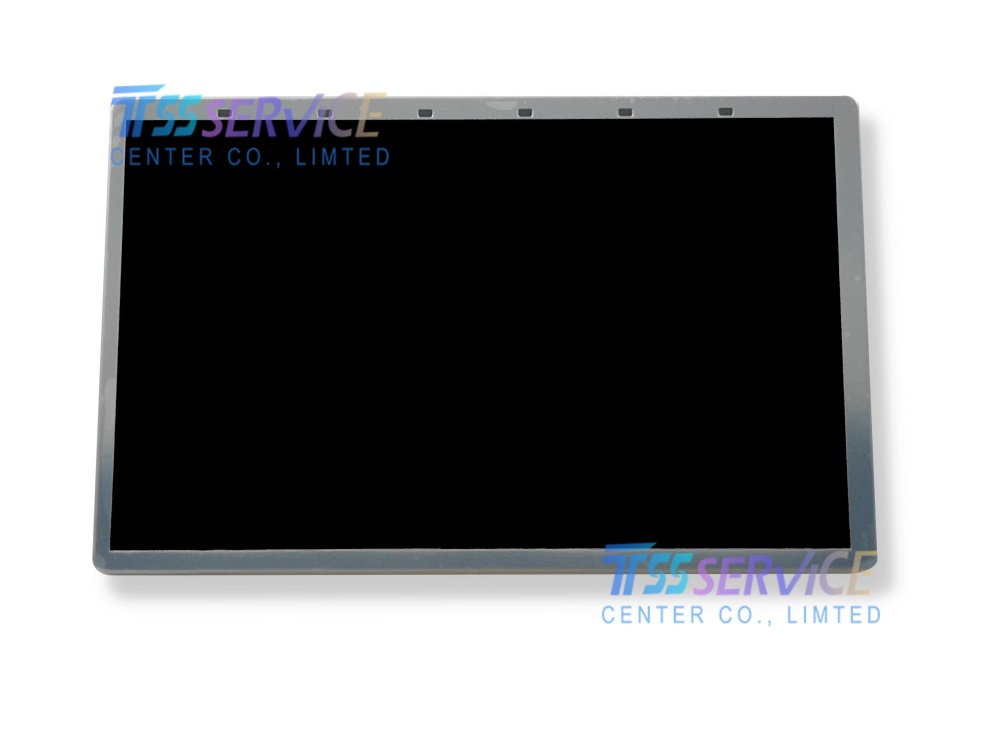

TX20D19VM2BAA 8.0 Inch LCD Panel for KOE/Hitachi
Diagonal Size: 8.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution:800(RGB)×480, WVGA 116PPI
Pixel Format: RGB Vertical Stripe
The TX20D19VM2BAA is an advanced 8.0-inch TFT-LCD module designed for demanding applications that require superior optical performance and reliability. Featuring a resolution of 800(RGB) × 480 pixels, this display offers excellent image clarity and color reproduction in a compact form factor.
| Parameter | Specification |
|---|---|
| Model Number | TX20D19VM2BAA |
| Display Technology | a-Si TFT LCD, Transmissive |
| Active Area | 174(W)×104.4(H) mm |
| Resolution | 800(RGB)×480, WVGA 116PPI |
| Color Depth | 262K / 16.7M colors (controller dependent) |
| Brightness (Typical) | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Min.)(CR≥10) |
| Surface Treatment | Anti-Glare, Hard Coating (3H+) |
| Interface Type |
|
| Power Supply | 3.3V |
| Operating Temperature | -20°C to +70°C (extended range available) |
| Storage Temperature | -30°C to +80°C |
| Mechanical Construction | Full-metal frame with mounting holes |
