| Parameter | Value |
|---|---|
| Brand | KOE / Hitachi |
| Screen Size | 8.0 inches |
| Display Technology | a-Si TFT-LCD, TN (Twisted Nematic), Normally White, Transmissive |
| Resolution | WVGA (800 x 480 pixels) |
| Pixel Pitch | 0.2175 x 0.2175 mm |
| Pixel Format | RGB Vertical Stripe |
| Aspect Ratio | 15:9 |
| Color Support | 262,144 colors (6-bit) |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) |
| Viewing Angle | 60° left / 60° right / 55° up / 70° down (Typ.) |
| Response Time | 20/10 ms (Typ.)(Tr/Td) |
| Interface | CMOS (1 channel, 6-bit), 40 pins |
| Backlight | WLED, 40,000 hours |
| Touchscreen | Integrated 4-wire Resistive Touch |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Outline Dimensions | 189.0 (W) x 120.0 (H) x 9.5 (D) mm |
| Active Area | 174.0 (W) x 104.4 (H) mm |
| Weight | 240g (Typ.) |
| Surface Treatment | Antiglare |
| Lifecycle Status | Discontinued / End of Life |

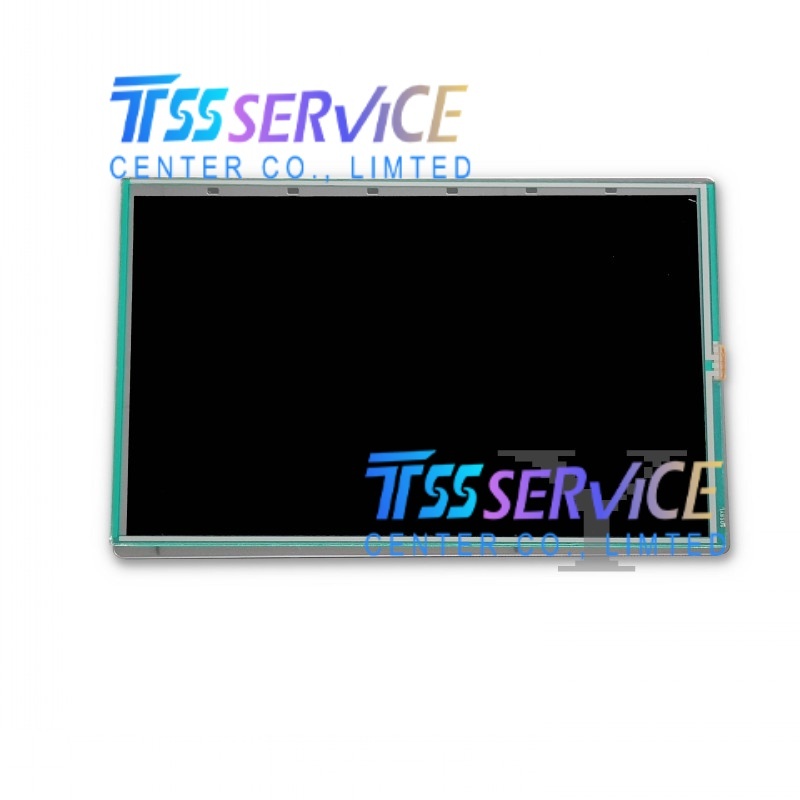

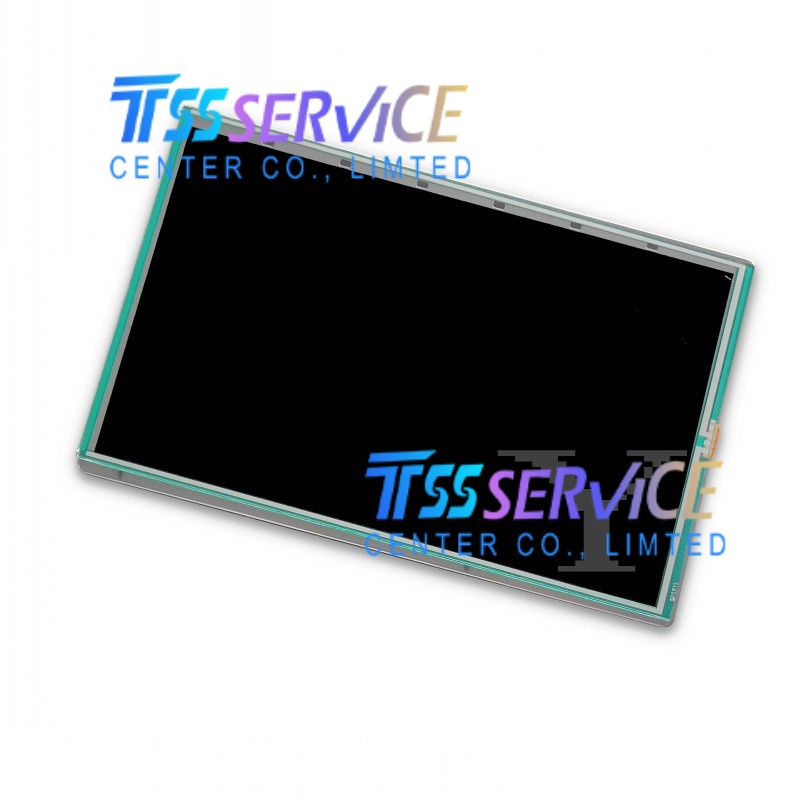

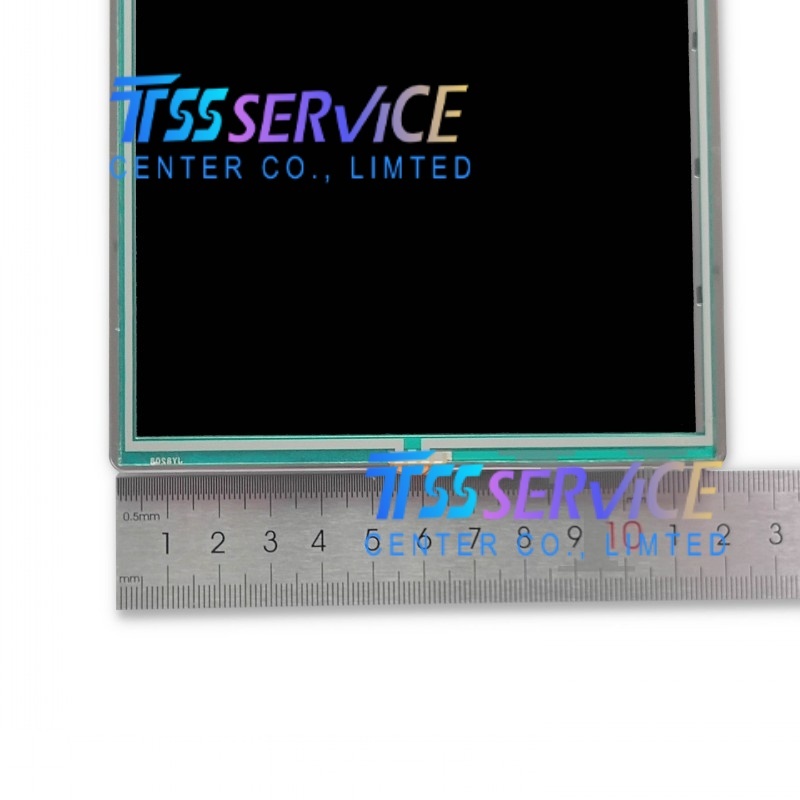

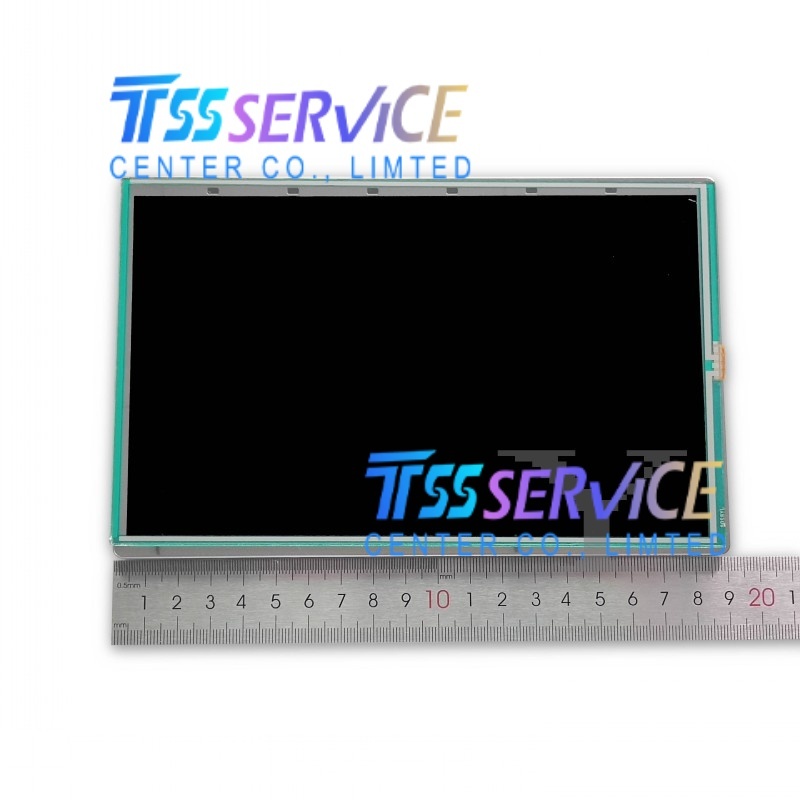

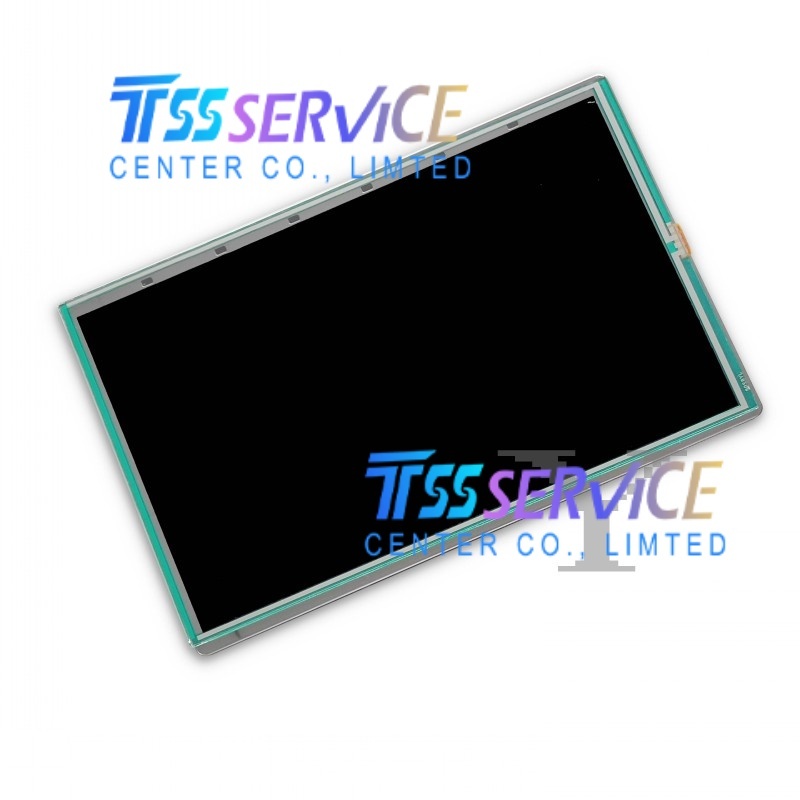

The TX20D19VM2BPA is an 8.0-inch display module designed for reliability in demanding environments. Its combination of a wide operating temperature range, integrated resistive touchscreen, and durable construction makes it suitable for various industrial and commercial applications.
Industrial Human-Machine Interfaces (HMIs): The display is well-suited for factory automation equipment, process control systems, and industrial panel PCs requiring a reliable touch interface that functions even when operators are wearing gloves -2-3.
Outdoor Kiosks and Ticketing Machines: With its antiglare surface treatment and 320 cd/m² brightness, the display can be used in outdoor ticketing machines, information kiosks, and vending machines where readability in various lighting conditions is required -2-3.
Field-Service and Portable Devices: For portable diagnostic equipment, ruggedized tablets, or devices used in logistics and construction, this display offers a durable solution with glove-compatible touchscreen functionality -3.
Transportation and Vehicle Applications: The wide operating temperature range (-20°C to +70°C) and vibration resistance (2.0G) allow it to be used in marine, agricultural vehicle consoles, and other on-board displays that face environmental variations -2-3.
Building Management and Security Systems: Applications include facility management systems, building automation panels, and security monitoring stations requiring clear visibility and reliable 24/7 operation
